Search › Model › ZVW40

ZVW40

Toyota PRIUS · 2011 · 4,468 parts · 247 categories

4,468 items

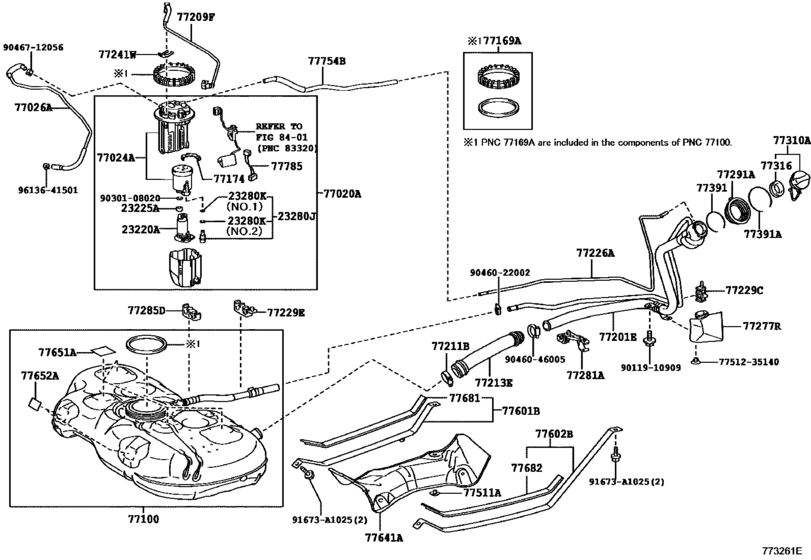

Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504)) 57

#	OEM	Part name
23220	23220-21211	Pump Assy, Fuel W/filter
23225	23225-21020	Spacer, Fuel Pump
23280	23280-21010	Regulator Assy, Fuel Pressure
23280	90301-04013	Ring, O(For Fuel Pump)
23280	90301-15024	Ring, O(For Fuel Pump)
77020	77020-47100	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-47102	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-47101	Tube Assy, Fuel Suction W/pump & Gage
77024	77024-47050	Plate Sub-Assy, Fuel Suction
77024	77024-47110	Plate Sub-Assy, Fuel Suction
77026	77026-47030	Tube Sub-Assy, Fuel Evaporation, No.1
77100	77001-47190	Tank Assy, Fuel
77169	77169-52040	Gasket, Fuel Suction Tube Set
77174	77174-75010	Support, Fuel Suction, No.1
77201	77201-47150	Pipe Sub-Assy, Fuel Tank Filler
77201	77201-47230	Pipe Sub-assy, Fuel Tank Inlet
77201	77300-12020	Cap Assy, Fuel Tank
77201	77201-47200	Pipe Sub-Assy, Fuel Tank Filler
77209	77209-47080	Tube Sub-Assy, Fuel Tank Main
77211	90460-50008	Clamp (For Fuel Filler Pipe)
77213	77213-47080	Hose, Fuel Tank To Filler Pipe
77226	77226-47080	Tube, Fuel Tank Breather, No.6
77226	77226-47140	Tube, Fuel Tank Breather, No.6
77226	77226-47130	Tube, Fuel Tank Breather, No.6
77229	77229-12070	Clamp, Breather Tube
77229	77229-47090	Clamp, Breather Tube
77241	77241-33011	Clip, Tube Joint
77277	77277-12180	Protector, Fuel Tank Filler Pipe
77281	77281-72010	Clamp, Fuel Filler Pipe
77285	77285-47070	Clamp, Fuel Tube, No.1
77291	77291-47060	Shield, Fuel Tank Filler Pipe
77310	77300-52030	Cap Assy, Fuel Tank
77316	77316-52040	Gasket, Fuel Tank Cap
77391	77391-12020	Ring, Fuel Inlet Box
77391	77391-75010	Ring, Fuel Inlet Box
77511	77512-35140	Bracket, Fuel Tank
77601	77601-47080	Band Sub-Assy, Fuel Tank, No.1 Rh
77601	77601-47120	Band Sub-Assy, Fuel Tank, No.1 Rh
77602	77602-47060	Band Sub-Assy, Fuel Tank, No.1 Lh
77602	77602-47110	Band Sub-Assy, Fuel Tank, No.1 Lh
77641	77641-47040	Protector, Fuel Tank, No.1
77651	77651-12070	Cushion, Fuel Tank, No.1
77652	77652-47010	Cushion, Fuel Tank, No.2
77681	77681-21010	Seat, Fuel Tank Band, Rh
77682	77681-28060	Seat, Fuel Tank Band, Rh
77682	77681-47030	Seat, Fuel Tank Band, Lh
77754	77754-47060	Hose, Charcoal Canister Outlet
77785	77785-12010	Harness, Fuel Pump
91673	91673-A1025	New Genuine Part
9011910909	90119-10909	Bolt
9030108020	90301-08020	Ring, O(For Fuel Pump)
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046005	90460-46005	Clamp (For Fuel Filler Pipe)
9046712056	90467-12056	Clamp Or Clip(For Throttle Body Hose)
9046712056	90466-T0048	New Genuine Part
9613641501	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)

OEM	Part name	Category
23220-21211	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
23225-21020	Spacer, Fuel Pump	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
23280-21010	Regulator Assy, Fuel Pressure	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77001-47190	Tank Assy, Fuel	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77020-47100	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77020-47101	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77020-47102	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77024-47050	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77024-47110	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77026-47030	Tube Sub-Assy, Fuel Evaporation, No.1	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77169-52040	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77174-75010	Support, Fuel Suction, No.1	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77201-47150	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77201-47200	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77201-47230	Pipe Sub-assy, Fuel Tank Inlet	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77209-47080	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77213-47080	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77226-47080	Tube, Fuel Tank Breather, No.6	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77226-47130	Tube, Fuel Tank Breather, No.6	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77226-47140	Tube, Fuel Tank Breather, No.6	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77229-12070	Clamp, Breather Tube	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77229-47090	Clamp, Breather Tube	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77277-12180	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77281-72010	Clamp, Fuel Filler Pipe	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77285-47070	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77291-47060	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77300-12020	Cap Assy, Fuel Tank	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77300-52030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77316-52040	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77391-12020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77391-75010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77512-35140	Bracket, Fuel Tank	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77601-47080	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77601-47120	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77602-47060	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77602-47110	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77641-47040	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77651-12070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77652-47010	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77681-21010	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77681-28060	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77681-47030	Seat, Fuel Tank Band, Lh	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77754-47060	Hose, Charcoal Canister Outlet	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
77785-12010	Harness, Fuel Pump	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
90119-10909	Bolt	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
90301-04013	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
90301-08020	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
90301-15024	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
90460-22001	CLAMP	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
90460-22002	CLAMP	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
90460-50008	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
90466-T0048	New Genuine Part	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
90467-12056	Clamp Or Clip(For Throttle Body Hose)	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
91673-A1025	New Genuine Part	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Tank & Tube ([03.2012 - 04.2015] FUEL TANK (1203-1504))
