Search › Model › ZVW40

ZVW40

Toyota PRIUS · 2011 · 4,468 parts · 247 categories

4,468 items

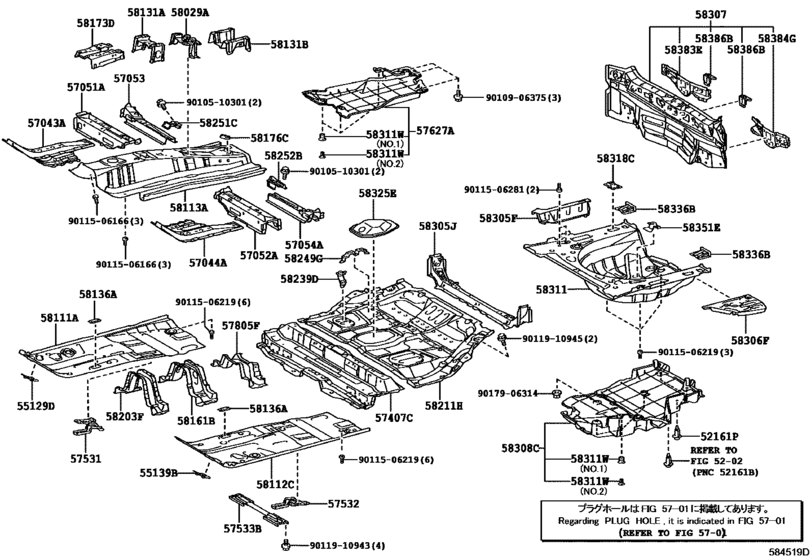

Floor Pan & Lower Back Panel ([03.2012 - ] (1203- )) 62

#	OEM	Part name
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
55129	55129-12040	Cover, Dash Panel Hole
55139	55139-12050	Cover, Dash Panel Hole
57043	57043-12020	Reinforcement Sub-Assy, Front Side Member, Rear Rh
57044	57044-12020	Reinforcement Sub-Assy, Front Side Member, Rear Lh
57051	57051-12060	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-12010	Member Sub-Assy, Front Floor Cross, Lh
57053	57053-12010	Reinforcement Sub-Assy, Front Floor Cross Member, Rh
57054	57054-12010	Reinforcement Sub-Assy, Front Floor Cross Member, Lh
57407	57407-47011	Member Sub-Assy, Center Floor Cross, No.1
57531	57531-12010	Bracket, Front Floor Center Brace, Rh
57532	57532-12010	Bracket, Front Floor Center Brace, Lh
57533	57501-12020	Bracket Sub-Assy, Front Seat, Center
57627	57627-47020	Cover, Rear Floor Side Member, Rh
57805	57805-47030	Reinforcement Sub-Assy, Belt Anchor, No.1
57805	57805-47031	Reinforcement Sub-Assy, Belt Anchor, No.1
58029	58029-47010	Bracket Sub-Assy, Parking Brake Wire Clamp
58111	58111-47906	Pan, Front Floor, Rh
58111	58111-72901	Pan, Front Floor, Rh
58112	58112-72901	Pan, Front Floor, Lh
58113	58113-47901	Panel, Front Floor, Center
58131	58137-47010	Bracket, Front Floor Heat Insulator, No.1
58131	58157-47010	Bracket, Front Floor Heat Insulator, No.2
58136	58136-12040	Cover, Front Floor Service Hole
58161	58161-47030	Reinforcement, Belt Anchor To Floor Pan
58173	58173-47010	Bracket, Computer Mounting, No.4
58176	58176-12020	Reinforcement, Parking Brake Base, No.1
58203	58203-12070	Bracket Sub-Assy, Exhaust Pipe Mounting
58211	58211-47081	Pan, Center Floor
58239	58239-47010	Bracket, Cable Clamp
58249	58249-47010	Bracket, Cable Clamp, No.2
58251	58251-12040	Brace, Floor Panel, Front Rh
58252	58252-12040	Brace, Floor Panel, Front Lh
58305	58302-47030	Panel Sub-Assy, Rear Floor, Front
58305	58305-47040	Bracket, Spare Wheel Carrier
58306	58303-47031	Panel Sub-Assy, Rear Floor Partition
58306	58314-47030	Panel Sub-Assy, Rear Floor Side, Lh
58307	58307-47080	Panel Sub-Assy, Body Lower Back
58308	58308-47030	Cover Sub-Assy, Rear Floor Step Under
58311	58311-47090	Pan, Rear Floor
58311	58311-47091	Pan, Rear Floor
58311	90467-17024-A0	Clip, No.1(For Front Fender Seal)
58311	90467-17026-A0	Clip, No.1(For Front Fender Seal)
58311	90467-17025-C0	Clip, No.2(For Front Fender Seal)
58311	90467-17027-C0	Clip, No.2(For Front Fender Seal)
58318	58318-47030	Bracket, Rear Floor Crossmember
58325	58325-47040	Cover, Rear Floor Service Hole
58336	58336-12090	Reinforcement, Rear Floor Pan
58351	58351-12060	Bracket, Spare Wheel Carrier
58383	58383-47020	Reinforcement, Body Lower Back, No.2 Rh
58384	58384-47030	Gusset, Lower Back, Upper Rh
58386	58386-74010	Bracket, Rear Bumper Cover, No.2
9010510301	90105-10301	BOLT WASHER BASED
9010906375	90109-06375	BOLT
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9011506281	90115-06281	New Genuine Part
9011910943	90119-10943	New Genuine Part
9011910945	90119-10945	New Genuine Part
9017906314	90179-06314	NUT

OEM	Part name	Category
52161-02020	Clip	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
52161-0K040	Clip	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
52161-16010	Clip	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
55129-12040	Cover, Dash Panel Hole	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
55139-12050	Cover, Dash Panel Hole	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57043-12020	Reinforcement Sub-Assy, Front Side Member, Rear Rh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57044-12020	Reinforcement Sub-Assy, Front Side Member, Rear Lh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57051-12060	Member Sub-Assy, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57052-12010	Member Sub-Assy, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57053-12010	Reinforcement Sub-Assy, Front Floor Cross Member, Rh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57054-12010	Reinforcement Sub-Assy, Front Floor Cross Member, Lh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57407-47011	Member Sub-Assy, Center Floor Cross, No.1	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57501-12020	Bracket Sub-Assy, Front Seat, Center	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57531-12010	Bracket, Front Floor Center Brace, Rh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57532-12010	Bracket, Front Floor Center Brace, Lh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57627-47020	Cover, Rear Floor Side Member, Rh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57805-47030	Reinforcement Sub-Assy, Belt Anchor, No.1	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
57805-47031	Reinforcement Sub-Assy, Belt Anchor, No.1	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58029-47010	Bracket Sub-Assy, Parking Brake Wire Clamp	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58111-47906	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58111-72901	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58112-72901	Pan, Front Floor, Lh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58113-47901	Panel, Front Floor, Center	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58136-12040	Cover, Front Floor Service Hole	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58137-47010	Bracket, Front Floor Heat Insulator, No.1	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58157-47010	Bracket, Front Floor Heat Insulator, No.2	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58161-47030	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58173-47010	Bracket, Computer Mounting, No.4	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58176-12020	Reinforcement, Parking Brake Base, No.1	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58203-12070	Bracket Sub-Assy, Exhaust Pipe Mounting	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58211-47081	Pan, Center Floor	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58239-47010	Bracket, Cable Clamp	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58249-47010	Bracket, Cable Clamp, No.2	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58251-12040	Brace, Floor Panel, Front Rh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58252-12040	Brace, Floor Panel, Front Lh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58302-47030	Panel Sub-Assy, Rear Floor, Front	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58303-47031	Panel Sub-Assy, Rear Floor Partition	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58305-47040	Bracket, Spare Wheel Carrier	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58307-47080	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58308-47030	Cover Sub-Assy, Rear Floor Step Under	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58311-47090	Pan, Rear Floor	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58311-47091	Pan, Rear Floor	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58314-47030	Panel Sub-Assy, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58318-47030	Bracket, Rear Floor Crossmember	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58325-47040	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58336-12090	Reinforcement, Rear Floor Pan	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58351-12060	Bracket, Spare Wheel Carrier	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58383-47020	Reinforcement, Body Lower Back, No.2 Rh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58384-47030	Gusset, Lower Back, Upper Rh	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
58386-74010	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90105-10301	BOLT WASHER BASED	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90109-06375	BOLT	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90115-06281	New Genuine Part	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90119-10943	New Genuine Part	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90119-10945	New Genuine Part	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90179-06314	NUT	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90467-17024-A0	Clip, No.1(For Front Fender Seal)	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90467-17025-C0	Clip, No.2(For Front Fender Seal)	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90467-17026-A0	Clip, No.1(For Front Fender Seal)	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
90467-17027-C0	Clip, No.2(For Front Fender Seal)	Floor Pan & Lower Back Panel ([03.2012 - ] (1203- ))
