ZVW40

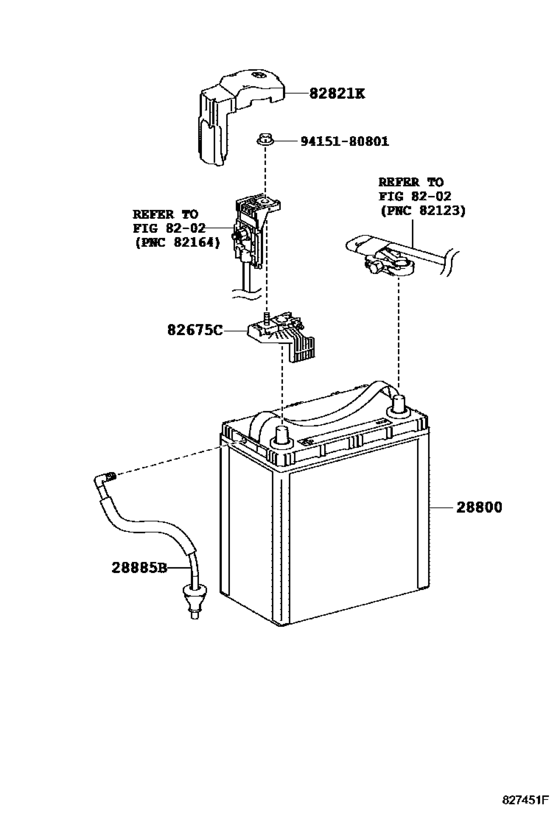

Battery & Battery Cable ([03.2012 - ] 12V BATTERY (1203- )) 7
| # | OEM | Part name |
|---|---|---|
| 28800 | 28800-21171 | Battery |
| 28885 | 28885-37010 | Hose, Battery |
| 28885 | 28885-37060 | Hose, Battery |
| 28898 | 28898-16020 | Plate, Battery |
| 82675 | 82675-47160 | Terminal, Junction |
| 82821 | 82821-47110 | Cover, Connector(For Battery Terminal) |
| 9415180801 | 94151-80801 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 28800-21171 | Battery | Battery & Battery Cable ([03.2012 - ] 12V BATTERY (1203- )) |
| 28885-37010 | Hose, Battery | Battery & Battery Cable ([03.2012 - ] 12V BATTERY (1203- )) |
| 28885-37060 | Hose, Battery | Battery & Battery Cable ([03.2012 - ] 12V BATTERY (1203- )) |
| 28898-16020 | Plate, Battery | Battery & Battery Cable ([03.2012 - ] 12V BATTERY (1203- )) |
| 82675-47160 | Terminal, Junction | Battery & Battery Cable ([03.2012 - ] 12V BATTERY (1203- )) |
| 82821-47110 | Cover, Connector(For Battery Terminal) | Battery & Battery Cable ([03.2012 - ] 12V BATTERY (1203- )) |
| 94151-80801 | NUT FLANGE | Battery & Battery Cable ([03.2012 - ] 12V BATTERY (1203- )) |
