Search › Model › ZVW40
ZVW40

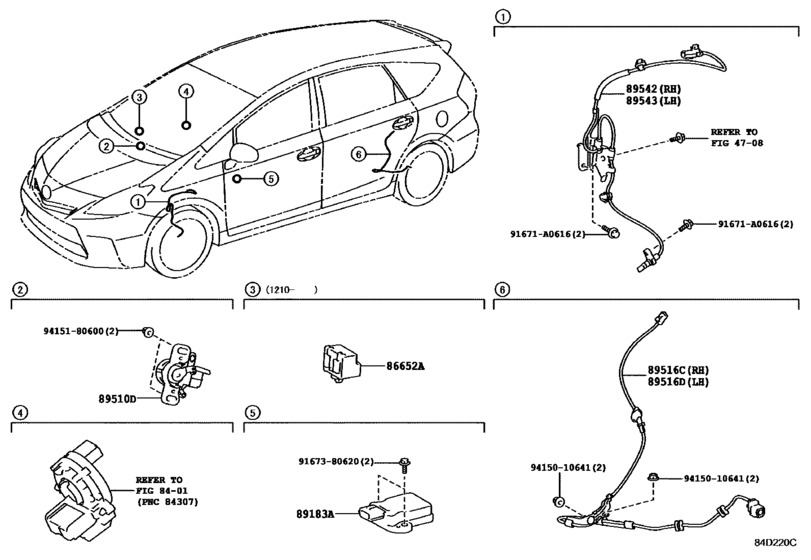

Abs & Vsc ([03.2012 - ] (1203- )) 11
| # | OEM | Part name |
|---|---|---|
| 86652 | 86652-50010 | Buzzer Assy |
| 89183 | 89183-48030 | Sensor, Yawrate |
| 89510 | 89510-20041 | Sensor Assy, Brake Pedal Stroke |
| 89516 | 89516-47090 | Wire, Skid Control Sensor |
| 89516 | 89516-47100 | Wire, Skid Control Sensor |
| 89542 | 89542-12080 | Sensor, Speed, Front Rh |
| 89543 | 89543-12080 | Sensor, Speed, Front Lh |
| 91671 | 91671-A0616 | BOLT FLANGE |
| 9167380620 | 91673-80620 | Bolt |
| 9415010641 | 94150-10641 | Nut |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 86652-50010 | Buzzer Assy | Abs & Vsc ([03.2012 - ] (1203- )) |
| 89183-48030 | Sensor, Yawrate | Abs & Vsc ([03.2012 - ] (1203- )) |
| 89510-20041 | Sensor Assy, Brake Pedal Stroke | Abs & Vsc ([03.2012 - ] (1203- )) |
| 89516-47090 | Wire, Skid Control Sensor | Abs & Vsc ([03.2012 - ] (1203- )) |
| 89516-47100 | Wire, Skid Control Sensor | Abs & Vsc ([03.2012 - ] (1203- )) |
| 89542-12080 | Sensor, Speed, Front Rh | Abs & Vsc ([03.2012 - ] (1203- )) |
| 89543-12080 | Sensor, Speed, Front Lh | Abs & Vsc ([03.2012 - ] (1203- )) |
| 91671-A0616 | BOLT FLANGE | Abs & Vsc ([03.2012 - ] (1203- )) |
| 91673-80620 | Bolt | Abs & Vsc ([03.2012 - ] (1203- )) |
| 94150-10641 | Nut | Abs & Vsc ([03.2012 - ] (1203- )) |
| 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Abs & Vsc ([03.2012 - ] (1203- )) |
