Search › Model › ZVW35
ZVW35

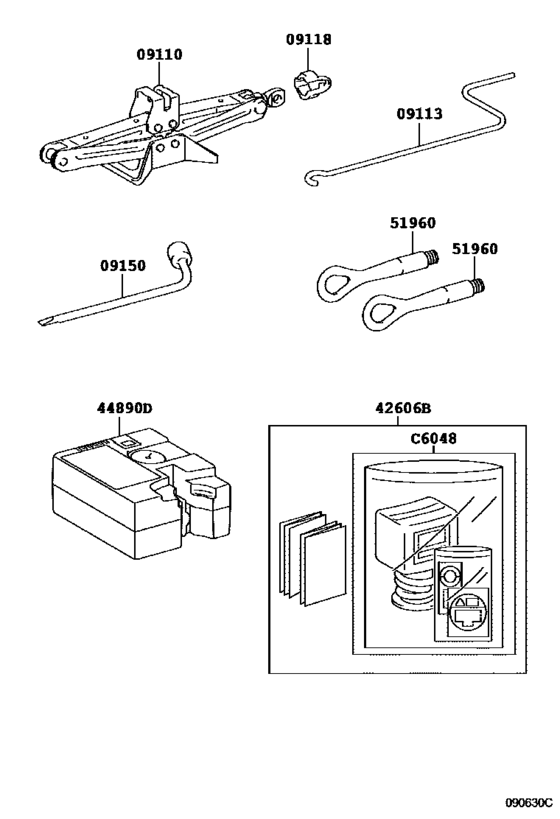

Standard Tool ([05.2012 - ] (1205- )) 12
| # | OEM | Part name |
|---|---|---|
| 9110 | 09111-30190 | Jack Assy |
| 9110 | 09111-33030 | Jack Assy |
| 9110 | 09111-76010 | Jack Assy |
| 9113 | 09113-52031 | Handle, Jack |
| 9118 | 09118-47020 | Cover, Jack |
| 9150 | 09150-35070 | Wrench, Hub Nut Box |
| 9150 | 09150-76010 | Wrench, Hub Nut Box |
| 42606 | 42606-47060 | Repair Kit, Tubeless Tire |
| 44890 | 44890-74021 | Compressor Assy, Air |
| 44890 | 44890-74022 | Compressor Assy, Air |
| 51960 | 51961-50041 | Hook Assy, Front |
| 51960 | 51961-50042 | Hook Assy, Front |
| OEM | Part name | Category |
|---|---|---|
| 09111-30190 | Jack Assy | Standard Tool ([05.2012 - ] (1205- )) |
| 09111-33030 | Jack Assy | Standard Tool ([05.2012 - ] (1205- )) |
| 09111-76010 | Jack Assy | Standard Tool ([05.2012 - ] (1205- )) |
| 09113-52031 | Handle, Jack | Standard Tool ([05.2012 - ] (1205- )) |
| 09118-47020 | Cover, Jack | Standard Tool ([05.2012 - ] (1205- )) |
| 09150-35070 | Wrench, Hub Nut Box | Standard Tool ([05.2012 - ] (1205- )) |
| 09150-76010 | Wrench, Hub Nut Box | Standard Tool ([05.2012 - ] (1205- )) |
| 42606-47060 | Repair Kit, Tubeless Tire | Standard Tool ([05.2012 - ] (1205- )) |
| 44890-74021 | Compressor Assy, Air | Standard Tool ([05.2012 - ] (1205- )) |
| 44890-74022 | Compressor Assy, Air | Standard Tool ([05.2012 - ] (1205- )) |
| 51961-50041 | Hook Assy, Front | Standard Tool ([05.2012 - ] (1205- )) |
| 51961-50042 | Hook Assy, Front | Standard Tool ([05.2012 - ] (1205- )) |
