Search › Model › ZVW35
ZVW35

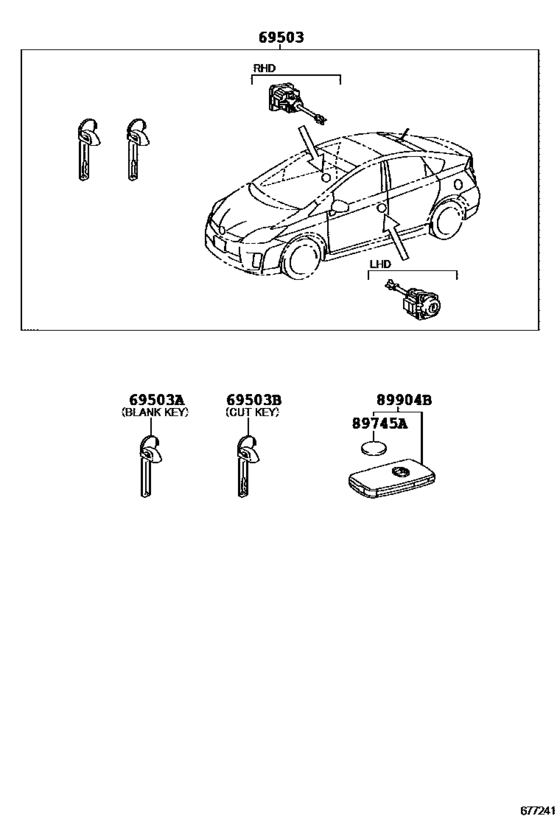

Lock Cylinder Set ([05.2012 - ] (1205- )) 6
| # | OEM | Part name |
|---|---|---|
| 69503 | 69005-47170 | Cylinder Set, Lock |
| 69503 | 69515-52120 | Key, Blank |
| 69503 | 69515-52110 | Key, Cut - for blank key → |
| 69503 | 69005-47140 | Cylinder Set, Lock |
| 89745 | 89745-52030 | Battery, Transmitter (CR1632) |
| 89904 | 89904-47180 | Transmitter Sub-Assy, Electrical Key |
| OEM | Part name | Category |
|---|---|---|
| 69005-47140 | Cylinder Set, Lock | Lock Cylinder Set ([05.2012 - ] (1205- )) |
| 69005-47170 | Cylinder Set, Lock | Lock Cylinder Set ([05.2012 - ] (1205- )) |
| 69515-52110 | Key, Cut - for blank key → | Lock Cylinder Set ([05.2012 - ] (1205- )) |
| 69515-52120 | Key, Blank | Lock Cylinder Set ([05.2012 - ] (1205- )) |
| 89745-52030 | Battery, Transmitter (CR1632) | Lock Cylinder Set ([05.2012 - ] (1205- )) |
| 89904-47180 | Transmitter Sub-Assy, Electrical Key | Lock Cylinder Set ([05.2012 - ] (1205- )) |
