ZVW35

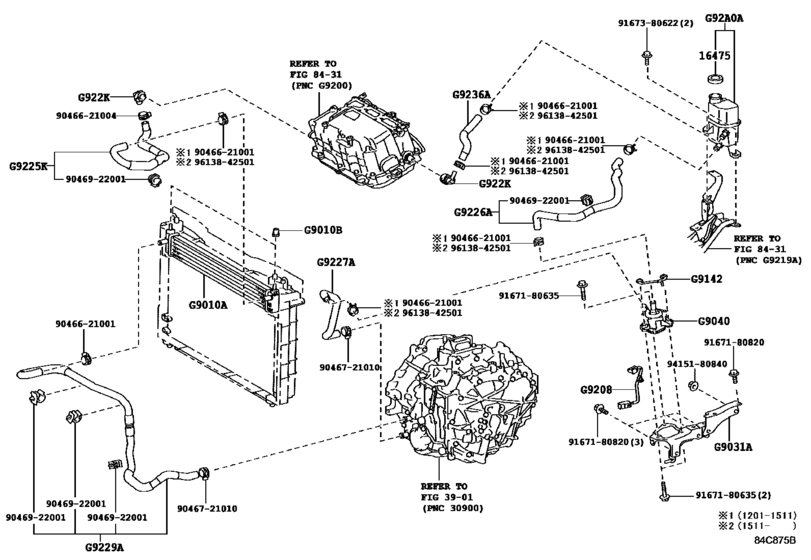

Inverter Cooling ([05.2012 - ] (1205- )) 13
| # | OEM | Part name |
|---|---|---|
| 0 | 16716-37010 | Cushion, Fan Shroud - INVERTER RADIATOR |
| 16475 | 16475-37010 | Cap Sub-Assy, Radiator Reserve Tank |
| 16475 | 16475-28140 | Cap Sub-Assy, Radiator Reserve Tank |
| 16475 | 16475-37011 | Cap Sub-Assy, Radiator Reserve Tank |
| 9046621001 | 90466-21001 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 9046621004 | 90466-21004 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 9046721010 | 90467-21010 | Clip(For Ventilation Hose No.2) |
| 9046922001 | 90469-22001 | Clamp, Piping |
| 9167180635 | 91671-80635 | New Genuine Part |
| 9167180820 | 91671-80820 | Bolt (For Transmission Control Cable Bracket) |
| 9167380622 | 91673-80622 | BOLT FLANGE |
| 9415180840 | 94151-80840 | NUT, FLANGE |
| 9613842501 | 96138-42501 | Clip, Hose(For Radiator Hose Sub-Assy) |
| OEM | Part name | Category |
|---|---|---|
| 16475-28140 | Cap Sub-Assy, Radiator Reserve Tank | Inverter Cooling ([05.2012 - ] (1205- )) |
| 16475-37010 | Cap Sub-Assy, Radiator Reserve Tank | Inverter Cooling ([05.2012 - ] (1205- )) |
| 16475-37011 | Cap Sub-Assy, Radiator Reserve Tank | Inverter Cooling ([05.2012 - ] (1205- )) |
| 16716-37010 | Cushion, Fan Shroud - INVERTER RADIATOR | Inverter Cooling ([05.2012 - ] (1205- )) |
| 90466-21001 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Inverter Cooling ([05.2012 - ] (1205- )) |
| 90466-21004 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Inverter Cooling ([05.2012 - ] (1205- )) |
| 90467-21010 | Clip(For Ventilation Hose No.2) | Inverter Cooling ([05.2012 - ] (1205- )) |
| 90469-22001 | Clamp, Piping | Inverter Cooling ([05.2012 - ] (1205- )) |
| 91671-80635 | New Genuine Part | Inverter Cooling ([05.2012 - ] (1205- )) |
| 91671-80820 | Bolt (For Transmission Control Cable Bracket) | Inverter Cooling ([05.2012 - ] (1205- )) |
| 91673-80622 | BOLT FLANGE | Inverter Cooling ([05.2012 - ] (1205- )) |
| 94151-80840 | NUT, FLANGE | Inverter Cooling ([05.2012 - ] (1205- )) |
| 96138-42501 | Clip, Hose(For Radiator Hose Sub-Assy) | Inverter Cooling ([05.2012 - ] (1205- )) |
