ZVW35

Toyota PRIUS · 2009 · 3,609 parts · 195 categories

3,609 items

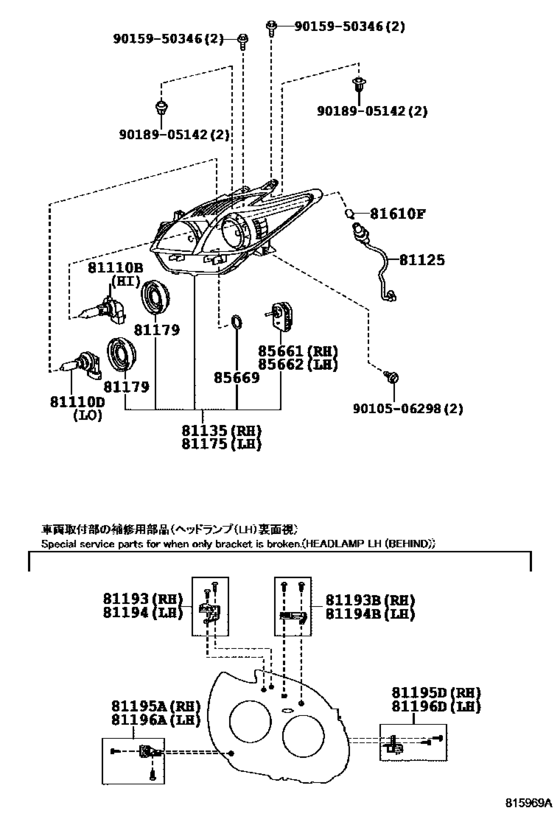

Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- )) 41

#	OEM	Part name
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-13075	Bulb(For Headlamp, No.1)
81125	81125-47230	Cord, Headlamp
81135	81130-47530	Unit Assy, Headlamp, Rh
81135	81145-47441	Unit Assy, Headlamp, Rh
81135	81145-47443	Unit Assy, Headlamp, Rh
81135	81145-47442	Unit Assy, Headlamp, Rh
81135	81130-47540	Unit Assy, Headlamp, Rh
81135	81145-47451	Unit Assy, Headlamp, Rh
81135	81145-47453	Unit Assy, Headlamp, Rh
81135	81145-47452	Unit Assy, Headlamp, Rh
81175	81170-47530	Unit Assy, Headlamp, Lh
81175	81185-47441	Unit Assy, Headlamp, Lh
81175	81185-47443	Unit Assy, Headlamp, Lh
81175	81185-47442	Unit Assy, Headlamp, Lh
81175	81170-47540	Unit Assy, Headlamp, Lh
81175	81185-47451	Unit Assy, Headlamp, Lh
81175	81185-47453	Unit Assy, Headlamp, Lh
81175	81185-47452	Unit Assy, Headlamp, Lh
81179	90075-65006	Cover, Headlamp Back, No.1
81193	81193-47030	Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH
81193	81193-47070	Retainer, Headlamp Protector, Upper Rh
81193	81193-47040	Retainer, Headlamp Protector, Upper Rh No.2 - HEADLAMP PROTECTOR, UPR RH NO.2
81193	81193-47080	Retainer, Headlamp Protector, Upper Rh No.2
81194	81194-47030	Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH
81194	81194-47070	Retainer, Headlamp Protector, Upper Lh
81194	81194-47040	Retainer, Headlamp Protector, Upper Lh No.2 - HEADLAMP PROTECTOR, UPR LH NO.2
81194	81194-47080	Retainer, Headlamp Protector, Upper Lh No.2
81195	81195-47030	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH
81195	81195-47070	Retainer, Headlamp Protector, Lower Rh
81195	81195-47040	Retainer, Headlamp Protector, Lower Rh No.2 - HEADLAMP PROTECTOR, LWR RH NO.2
81196	81196-47030	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH
81196	81196-47070	Retainer, Headlamp Protector, Lower Lh
81196	81196-47040	Retainer, Headlamp Protector, Lower Lh No.2 - HEADLAMP PROTECTOR, LWR LH NO.2
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
85661	85661-12010	Motor, Headlamp Leveling, Rh
85669	90075-99120	Packing, Headlamp Leveling Motor Base
9010506298	90105-06298	BOLT FLANGE
9015950346	90159-50346	SCREW
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
81125-47230	Cord, Headlamp	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81130-47530	Unit Assy, Headlamp, Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81130-47540	Unit Assy, Headlamp, Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81145-47441	Unit Assy, Headlamp, Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81145-47442	Unit Assy, Headlamp, Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81145-47443	Unit Assy, Headlamp, Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81145-47451	Unit Assy, Headlamp, Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81145-47452	Unit Assy, Headlamp, Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81145-47453	Unit Assy, Headlamp, Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81170-47530	Unit Assy, Headlamp, Lh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81170-47540	Unit Assy, Headlamp, Lh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81185-47441	Unit Assy, Headlamp, Lh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81185-47442	Unit Assy, Headlamp, Lh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81185-47443	Unit Assy, Headlamp, Lh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81185-47451	Unit Assy, Headlamp, Lh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81185-47452	Unit Assy, Headlamp, Lh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81185-47453	Unit Assy, Headlamp, Lh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81193-47030	Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81193-47040	Retainer, Headlamp Protector, Upper Rh No.2 - HEADLAMP PROTECTOR, UPR RH NO.2	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81193-47070	Retainer, Headlamp Protector, Upper Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81193-47080	Retainer, Headlamp Protector, Upper Rh No.2	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81194-47030	Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81194-47040	Retainer, Headlamp Protector, Upper Lh No.2 - HEADLAMP PROTECTOR, UPR LH NO.2	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81194-47070	Retainer, Headlamp Protector, Upper Lh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81194-47080	Retainer, Headlamp Protector, Upper Lh No.2	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81195-47030	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81195-47040	Retainer, Headlamp Protector, Lower Rh No.2 - HEADLAMP PROTECTOR, LWR RH NO.2	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81195-47070	Retainer, Headlamp Protector, Lower Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81196-47030	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81196-47040	Retainer, Headlamp Protector, Lower Lh No.2 - HEADLAMP PROTECTOR, LWR LH NO.2	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
81196-47070	Retainer, Headlamp Protector, Lower Lh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
85661-12010	Motor, Headlamp Leveling, Rh	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
90075-65006	Cover, Headlamp Back, No.1	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
90075-99120	Packing, Headlamp Leveling Motor Base	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
90105-06298	BOLT FLANGE	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
90159-50346	SCREW	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
90189-05142	GROMMET, SCREW	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
90981-13075	Bulb(For Headlamp, No.1)	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
99132-12050	Bulb (12V 5W)	Headlamp ([05.2012 - ] HALOGEN HEADLAMP (1205- ))
