ZVW35

Toyota PRIUS · 2009 · 3,609 parts · 195 categories

3,609 items

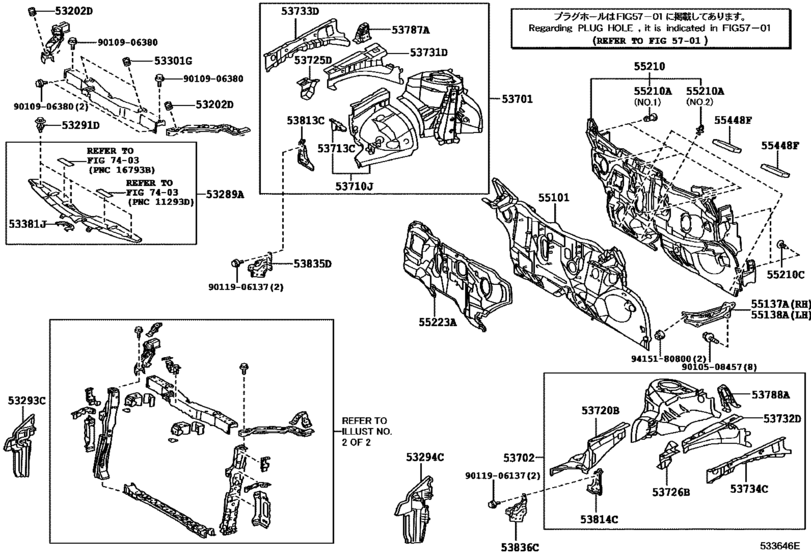

Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD) 42

#	OEM	Part name
53202	90541-15037	Cushion, Radiator Support
53289	53289-47032	Cover, Radiator Support Opening
53289	53289-47033	Cover, Radiator Support Opening
53291	90467-07211	Clip(For Reserve Tank Outlet Hose No.2)
53291	90467-07217	Clip, Radiator Support To Frame Seal
53293	53293-47040	Deflector, Radiator Side, Rh
53294	53294-47030	Deflector, Radiator Side, Lh
53301	90541-15035	Cushion, Hood Bumper
53381	53381-47030	Seal, Hood To Radiator Support
53701	53701-47050	Apron Sub-Assy, Front Fender, Rh
53702	53702-47050	Apron Sub-Assy, Front Fender, Lh
53710	53710-12030	Apron Assy, Front Fender, Rh
53713	53713-12160	Extension Sub-Assy, Front Fender Apron, Front Rh
53720	53720-12030	Apron Assy, Front Fender, Lh
53725	53725-12040	Reinforcement, Front Spring Support, No.2 Rh
53726	53726-12040	Reinforcement, Front Spring Support, No.2 Lh
53731	53731-12170	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-12150	Member, Front Apron To Cowl Side, Upper Lh
53733	53733-12070	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-12070	Member, Front Apron To Cowl Side, Lower Front Lh
53787	53707-47010	Gusset, Front Fender Apron, Lower Rh - FRONT FENDER APRON, FRONT RH
53788	53708-47050	Extension, Front Fender Apron, Front Lh
53813	53813-47020	Extension, Front Fender, Rh
53814	53814-47020	Extension, Front Fender, Lh
53835	53803-47020	Bracket, Front Side Panel, Rh
53835	53835-47010	Bracket, Front Side Panel, Rh
53836	53804-47020	Bracket, Front Side Panel, Lh
53836	53836-47010	Bracket, Front Side Panel, Lh
55101	55101-72011	Panel Sub-Assy, Dash
55137	55137-47030	Brace, Dash To Frame, Rh
55138	55138-47050	Brace, Dash To Frame, Lh
55138	55138-47060	Brace, Dash To Frame, Lh
55210	55210-47150	Insulator Assy, Dash Panel
55210	90467-11122	Clip
55210	90467-11127	Clip
55210	90467-08186-C0	Clip(For Front Bumper), No.1
55223	55223-47060	Insulator, Dash Panel, Outer
55448	55448-47060	Cushion, Instrument Panel Finish, No.1
9010508457	90105-08457	New Genuine Part
9010906380	90109-06380	BOLT
9011906137	90119-06137	BOLT
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
53289-47032	Cover, Radiator Support Opening	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53289-47033	Cover, Radiator Support Opening	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53293-47040	Deflector, Radiator Side, Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53294-47030	Deflector, Radiator Side, Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53381-47030	Seal, Hood To Radiator Support	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53701-47050	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53702-47050	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53707-47010	Gusset, Front Fender Apron, Lower Rh - FRONT FENDER APRON, FRONT RH	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53708-47050	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53710-12030	Apron Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53713-12160	Extension Sub-Assy, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53720-12030	Apron Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53725-12040	Reinforcement, Front Spring Support, No.2 Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53726-12040	Reinforcement, Front Spring Support, No.2 Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53731-12170	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53732-12150	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53733-12070	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53734-12070	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53803-47020	Bracket, Front Side Panel, Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53804-47020	Bracket, Front Side Panel, Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53813-47020	Extension, Front Fender, Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53814-47020	Extension, Front Fender, Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53835-47010	Bracket, Front Side Panel, Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
53836-47010	Bracket, Front Side Panel, Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
55101-72011	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
55137-47030	Brace, Dash To Frame, Rh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
55138-47050	Brace, Dash To Frame, Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
55138-47060	Brace, Dash To Frame, Lh	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
55210-47150	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
55223-47060	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
55448-47060	Cushion, Instrument Panel Finish, No.1	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
90105-08457	New Genuine Part	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
90109-06380	BOLT	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
90119-06137	BOLT	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
90467-07211	Clip(For Reserve Tank Outlet Hose No.2)	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
90467-07217	Clip, Radiator Support To Frame Seal	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
90467-08186-C0	Clip(For Front Bumper), No.1	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
90467-11122	Clip	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
90467-11127	Clip	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
90541-15035	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
90541-15037	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
94151-80800	Nut (For Transmission Control Cable)	Front Fender Apron & Dash Panel ([05.2012 - 09.2014] (1205-1409)RHD)
