Search › Model › ZVW35

ZVW35

Toyota PRIUS · 2009 · 3,609 parts · 195 categories

3,609 items

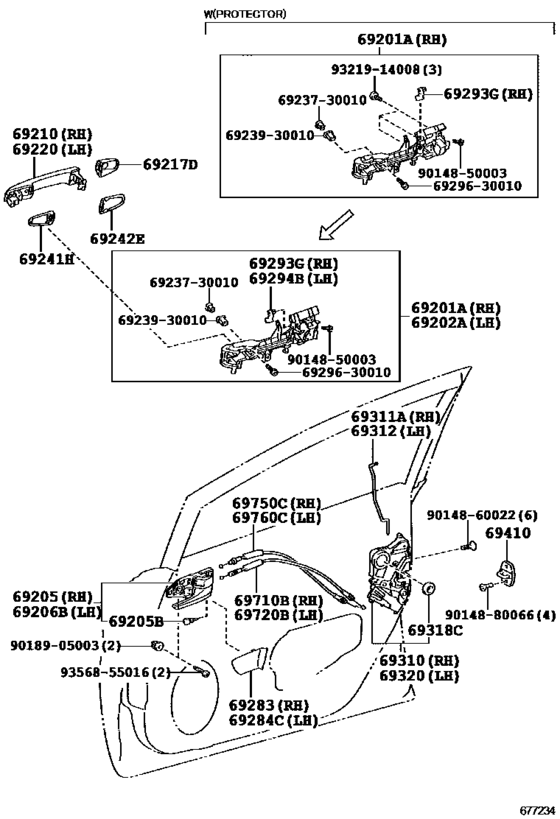

Front Door Lock & Handle ([05.2012 - ] (1205- )) 50

#	OEM	Part name
69201	69201-47060	Frame Sub-Assy, Front Door Outside Handle, Rh
69201	69201-30071	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-30061	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-47050-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04027	Cushion(For Front Door Inside Handle)
69206	69206-47050-C0	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-74030-B0	Handle Assy, Front Door, Outside Rh
69210	69210-74030-B9	Handle Assy, Front Door, Outside Rh
69210	69210-74030-P2	Handle Assy, Front Door, Outside Rh
69210	69211-74020-P5	Handle Assy, Front Door, Outside Rh
69217	69217-74010-B0	Cover, Front Door Outside Handle
69217	69217-74010-P2	Cover, Front Door Outside Handle
69217	69217-74010-P5	Cover, Front Door Outside Handle
69217	69250-74010-B0	Cover, Front Door Outside Handle
69217	69250-74010-P2	Cover, Front Door Outside Handle
69217	69250-74010-P5	Cover, Front Door Outside Handle
69220	69211-74020-B0	Handle Assy, Front Door, Outside Rh
69220	69211-74020-P2	Handle Assy, Front Door, Outside Rh
69241	69241-30111	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT
69242	69242-47020	Pad, Front Door Outside Handle, Rear
69283	69283-47010-B2	Plug, Front Door Inside Handle Bezel, Rh
69283	69283-47010-C0	Plug, Front Door Inside Handle Bezel, Rh
69283	69283-47010-G0	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-47010-B2	Plug, Front Door Inside Handle Bezel, Lh
69284	69284-47010-C0	Plug, Front Door Inside Handle Bezel, Lh
69284	69284-47010-G0	Plug, Front Door Inside Handle Bezel, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69294	69293-12040	Snap, Front Door Outside Handle
69310	69030-47070	Lock Assy, Front Door W/motor, Rh - FRONT DOOR, RH
69310	69030-47081	Lock Assy, Front Door W/motor, Rh - FRONT DOOR, RH
69310	69030-47120	Lock Assy, Front Door W/motor, Rh
69311	69311-47040	Rod, Front Door Lock Open, Rh
69312	69312-47040	Rod, Front Door Lock Open, Lh
69318	69318-47010	Seal, Front Door Lock Hole, Rh
69320	69040-47070	Lock Assy, Front Door W/motor, Lh - FRONT DOOR, LH
69320	69040-47120	Lock Assy, Front Door W/motor, Lh
69320	69040-52340	Lock Assy, Front Door W/motor, Lh - FRONT DOOR, LH
69410	69410-33010	Plate Assy, Front Door Lock Striker
69710	69710-47030	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-47040	Cable Assy, Front Door Inside Locking, Rh
6923730010	69237-30010	Nut, Front Door Handle
6923930010	69239-30010	Bush(For Rear Door Outside Handle)
6929630010	69296-30010	Screw, Door Inside Handle
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880066	90148-80066	SCREW HEXALOBULAR
9018905003	90189-05003	CLIP
9321914008	93219-14008	Screw, W/washer(For Bearing Cover Setting)
9356855016	93568-55016	Screw

OEM	Part name	Category
69030-47070	Lock Assy, Front Door W/motor, Rh - FRONT DOOR, RH	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69030-47081	Lock Assy, Front Door W/motor, Rh - FRONT DOOR, RH	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69030-47120	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69040-47070	Lock Assy, Front Door W/motor, Lh - FRONT DOOR, LH	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69040-47120	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69040-52340	Lock Assy, Front Door W/motor, Lh - FRONT DOOR, LH	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69201-30071	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69201-47060	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69202-30061	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69205-47050-C0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69206-47050-C0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69210-74030-B0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69210-74030-B9	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69210-74030-P2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69211-74020-B0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69211-74020-P2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69211-74020-P5	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69217-74010-B0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69217-74010-P2	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69217-74010-P5	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69237-30010	Nut, Front Door Handle	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69239-30010	Bush(For Rear Door Outside Handle)	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69241-30111	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69242-47020	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69250-74010-B0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69250-74010-P2	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69250-74010-P5	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69283-47010-B2	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69283-47010-C0	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69283-47010-G0	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69284-47010-B2	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69284-47010-C0	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69284-47010-G0	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69296-30010	Screw, Door Inside Handle	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69311-47040	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69312-47040	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69318-47010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69410-33010	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69710-47030	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
69750-47040	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([05.2012 - ] (1205- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([05.2012 - ] (1205- ))
90148-60022	BOLT	Front Door Lock & Handle ([05.2012 - ] (1205- ))
90148-80066	SCREW HEXALOBULAR	Front Door Lock & Handle ([05.2012 - ] (1205- ))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([05.2012 - ] (1205- ))
90189-05003	CLIP	Front Door Lock & Handle ([05.2012 - ] (1205- ))
90541-04027	Cushion(For Front Door Inside Handle)	Front Door Lock & Handle ([05.2012 - ] (1205- ))
93219-14008	Screw, W/washer(For Bearing Cover Setting)	Front Door Lock & Handle ([05.2012 - ] (1205- ))
93568-55016	Screw	Front Door Lock & Handle ([05.2012 - ] (1205- ))
