ZVW35

Toyota PRIUS · 2009 · 3,609 parts · 195 categories

← Back to categories

3,609 items

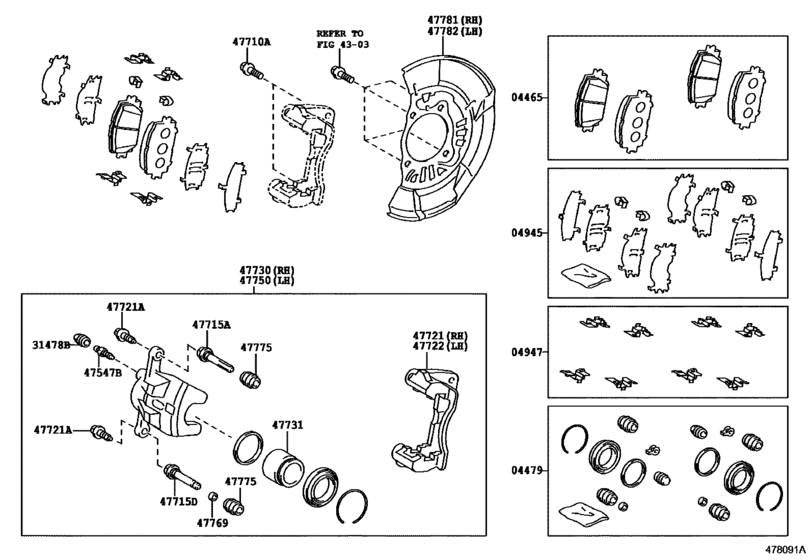

Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- )) 19

#	OEM	Part name
4465	04465-0W141	Pad Kit, Disc Brake, Front
4479	04478-47040	Cylinder Kit, Disc Brake, Front
4945	04945-47020	Shim Kit, Anti Squeal, Front
4947	04947-47020	Fitting Kit, Disc Brake, Front
31478	31478-50020	Cap, Bleeder Plug(For Front Disc Brake)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47710	91552-C1250	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-52190	Pin, Main(For Front Disc Brake Cylinder Slide)
47715	47715-12A10	Pin, Main(For Front Disc Brake Cylinder Slide)
47721	47721-47060	Mounting, Front Disc Brake Cylinder, Rh
47721	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47722	47722-47060	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-47060	Cylinder Assy, Front Disc Brake, Rh
47731	47731-47060	Piston, Front Disc Brake
47750	47750-47060	Cylinder Assy, Disc Brake, Lh
47769	47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775	47775-52190	Boot, Bush Dust(For Front Disc Brake)
47781	47781-47030	Cover, Disc Brake Dust, Front Rh
47782	47782-47020	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-0W141	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
04478-47040	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
04945-47020	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
04947-47020	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
31478-50020	Cap, Bleeder Plug(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47715-12A10	Pin, Main(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47715-52190	Pin, Main(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47721-47060	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47722-47060	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47730-47060	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47731-47060	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47750-47060	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47775-52190	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47781-47030	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
47782-47020	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
91552-C1250	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([05.2012 - ] (1205- ))
