ZVW35

Toyota PRIUS · 2009 · 3,609 parts · 195 categories

3,609 items

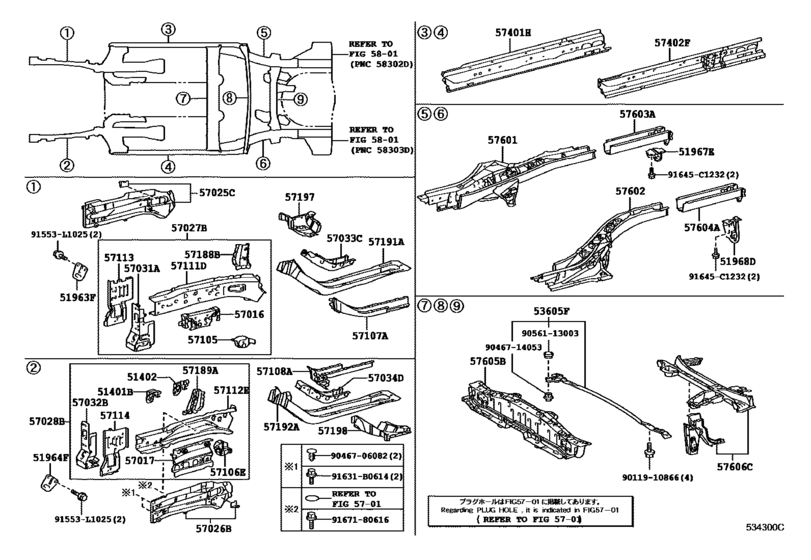

Floor Side Member ([05.2014 - ] (1405- )) 51

#	OEM	Part name
51401	51401-12020	Bracket Sub-Assy, Engine Front Mounting
51402	51402-12020	Bracket Sub-Assy, Engine Front Mounting, Lh
51963	51963-12250	Hook, Transport
51964	51964-12040	Hook, Transport, Lh
51967	51904-47010	Hanger Sub-Assy, Exhaust Pipe, No.4 - TRANSPORT, REAR RH
51968	51968-12180	Hook, Transport, Rear Lh
53605	53605-47020	Brace Sub-Assy, Rear Suspension
53605	53605-47021	Brace Sub-Assy, Rear Suspension
57016	57016-12110	Reinforcement Sub-Assy, Front Side Member, Rh
57017	57017-12070	Reinforcement Sub-Assy, Front Side Member, Lh
57025	57025-12010	Member Sub-Assy, Front Side, Outer Rh
57025	51681-12080	Plate, Front Brake Flexible Hose Support, Rh
57026	57026-12020	Member Sub-Assy, Front Side, Outer Lh
57026	51682-12080	Plate, Front Brake Flexible Hose Support, Lh
57027	57027-12010	Member Sub-Assy, Front Side, Inner Rh
57028	57028-12020	Member Sub-Assy, Front Side, Inner Lh
57031	57031-12010	Reinforce Sub-Assy, Front Side Member, No.2 Rh
57032	57032-12010	Reinforcement Sub-Assy, Front Side Member, No.2 Lh
57033	57033-12010	Reinforce Sub-Assy, Front Side Member, No.3 Rh
57034	57034-12010	Reinforce Sub-Assy, Front Side Menber, No.3 Lh
57105	57105-12160	Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh
57106	57106-12150	Bracket Sub-Assy, Front Suspension Member Mounting, Front Lh
57107	57107-12120	Plate Sub-Assy, Front Side Member, No.2 Rh
57108	57108-12140	Plate Sub-Assy, Front Side Member, No.2 Lh
57111	57111-12230	Member, Front Side, Rh
57112	57112-12190	Member, Front Side, Lh
57113	57113-12220	Extension, Front Side Member, Rh
57114	57114-12190	Extension, Front Side Member, Lh
57114	57114-12191	Extension, Front Side Member, Lh
57188	57188-12030	Gusset, Front Side Member To Spring Support, Rh
57189	57189-12010	Gusset, Front Side Member To Spring Support, Lh
57191	57191-12070	Member, Front Side, Inner Rear Rh
57192	57192-12060	Member, Front Side, Inner Rear Lh
57197	57197-12040	Box, Torque, Front Rh
57198	57198-12040	Box, Torque, Front Lh
57401	57401-47050	Member Sub-Assy, Main Floor Side, Rh
57402	57402-47070	Member Sub-Assy, Main Floor Side, Lh
57601	57601-12A00	Member Sub-Assy, Rear Floor Side, Rh
57602	57602-12A01	Member Sub-Assy, Rear Floor Side, Lh
57603	57603-47050	Member Sub-Assy, Rear Floor Side, Rear Rh
57604	57604-47050	Member Sub-Assy, Rear Floor Side, Rear Lh
57605	57605-12321	Member Sub-Assy, Rear Floor Cross, No.1
57606	57606-47042	Member Sub-Assy, Rear Floor Cross, No.2
91553	91553-L1025	New Genuine Part
91631	91631-B0614	BOLT WWASHER
91645	91645-C1232	New Genuine Part
9011910866	90119-10866	BOLT WWASHER
9046706082	90467-06082	New Genuine Part
9046714053	90467-14053	Clip, No.1(For Floor Under Cover)
9056113003	90561-13003	Clip, No.4(For Floor Under Cover)
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
51401-12020	Bracket Sub-Assy, Engine Front Mounting	Floor Side Member ([05.2014 - ] (1405- ))
51402-12020	Bracket Sub-Assy, Engine Front Mounting, Lh	Floor Side Member ([05.2014 - ] (1405- ))
51681-12080	Plate, Front Brake Flexible Hose Support, Rh	Floor Side Member ([05.2014 - ] (1405- ))
51682-12080	Plate, Front Brake Flexible Hose Support, Lh	Floor Side Member ([05.2014 - ] (1405- ))
51904-47010	Hanger Sub-Assy, Exhaust Pipe, No.4 - TRANSPORT, REAR RH	Floor Side Member ([05.2014 - ] (1405- ))
51963-12250	Hook, Transport	Floor Side Member ([05.2014 - ] (1405- ))
51964-12040	Hook, Transport, Lh	Floor Side Member ([05.2014 - ] (1405- ))
51968-12180	Hook, Transport, Rear Lh	Floor Side Member ([05.2014 - ] (1405- ))
53605-47020	Brace Sub-Assy, Rear Suspension	Floor Side Member ([05.2014 - ] (1405- ))
53605-47021	Brace Sub-Assy, Rear Suspension	Floor Side Member ([05.2014 - ] (1405- ))
57016-12110	Reinforcement Sub-Assy, Front Side Member, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57017-12070	Reinforcement Sub-Assy, Front Side Member, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57025-12010	Member Sub-Assy, Front Side, Outer Rh	Floor Side Member ([05.2014 - ] (1405- ))
57026-12020	Member Sub-Assy, Front Side, Outer Lh	Floor Side Member ([05.2014 - ] (1405- ))
57027-12010	Member Sub-Assy, Front Side, Inner Rh	Floor Side Member ([05.2014 - ] (1405- ))
57028-12020	Member Sub-Assy, Front Side, Inner Lh	Floor Side Member ([05.2014 - ] (1405- ))
57031-12010	Reinforce Sub-Assy, Front Side Member, No.2 Rh	Floor Side Member ([05.2014 - ] (1405- ))
57032-12010	Reinforcement Sub-Assy, Front Side Member, No.2 Lh	Floor Side Member ([05.2014 - ] (1405- ))
57033-12010	Reinforce Sub-Assy, Front Side Member, No.3 Rh	Floor Side Member ([05.2014 - ] (1405- ))
57034-12010	Reinforce Sub-Assy, Front Side Menber, No.3 Lh	Floor Side Member ([05.2014 - ] (1405- ))
57105-12160	Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh	Floor Side Member ([05.2014 - ] (1405- ))
57106-12150	Bracket Sub-Assy, Front Suspension Member Mounting, Front Lh	Floor Side Member ([05.2014 - ] (1405- ))
57107-12120	Plate Sub-Assy, Front Side Member, No.2 Rh	Floor Side Member ([05.2014 - ] (1405- ))
57108-12140	Plate Sub-Assy, Front Side Member, No.2 Lh	Floor Side Member ([05.2014 - ] (1405- ))
57111-12230	Member, Front Side, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57112-12190	Member, Front Side, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57113-12220	Extension, Front Side Member, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57114-12190	Extension, Front Side Member, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57114-12191	Extension, Front Side Member, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57188-12030	Gusset, Front Side Member To Spring Support, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57189-12010	Gusset, Front Side Member To Spring Support, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57191-12070	Member, Front Side, Inner Rear Rh	Floor Side Member ([05.2014 - ] (1405- ))
57192-12060	Member, Front Side, Inner Rear Lh	Floor Side Member ([05.2014 - ] (1405- ))
57197-12040	Box, Torque, Front Rh	Floor Side Member ([05.2014 - ] (1405- ))
57198-12040	Box, Torque, Front Lh	Floor Side Member ([05.2014 - ] (1405- ))
57401-47050	Member Sub-Assy, Main Floor Side, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57402-47070	Member Sub-Assy, Main Floor Side, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57601-12A00	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57602-12A01	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57603-47050	Member Sub-Assy, Rear Floor Side, Rear Rh	Floor Side Member ([05.2014 - ] (1405- ))
57604-47050	Member Sub-Assy, Rear Floor Side, Rear Lh	Floor Side Member ([05.2014 - ] (1405- ))
57605-12321	Member Sub-Assy, Rear Floor Cross, No.1	Floor Side Member ([05.2014 - ] (1405- ))
57606-47042	Member Sub-Assy, Rear Floor Cross, No.2	Floor Side Member ([05.2014 - ] (1405- ))
90119-10866	BOLT WWASHER	Floor Side Member ([05.2014 - ] (1405- ))
90467-06082	New Genuine Part	Floor Side Member ([05.2014 - ] (1405- ))
90467-14053	Clip, No.1(For Floor Under Cover)	Floor Side Member ([05.2014 - ] (1405- ))
90561-13003	Clip, No.4(For Floor Under Cover)	Floor Side Member ([05.2014 - ] (1405- ))
91553-L1025	New Genuine Part	Floor Side Member ([05.2014 - ] (1405- ))
91631-B0614	BOLT WWASHER	Floor Side Member ([05.2014 - ] (1405- ))
91645-C1232	New Genuine Part	Floor Side Member ([05.2014 - ] (1405- ))
91671-80616	BOLT FLANGE	Floor Side Member ([05.2014 - ] (1405- ))
