ZVW35

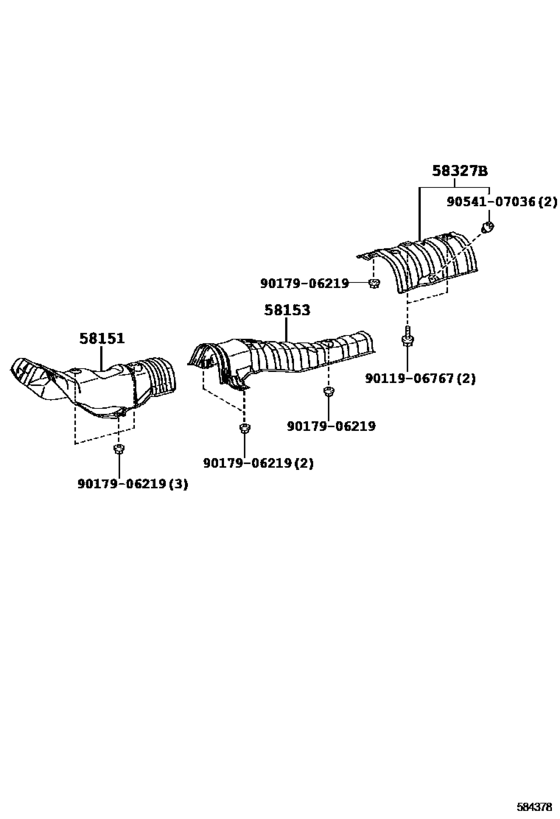

Floor Insulator ([05.2012 - ] (1205- )) 7
| # | OEM | Part name |
|---|---|---|
| 58151 | 58151-47050 | Insulator, Front Floor Heat, No.1 |
| 58153 | 58153-47030 | Insulator, Front Floor Heat, No.2 |
| 58327 | 58327-47020 | Insulator, Main Muffler Heat - MAIN MUFFLER HEAT, RH |
| 9011906767 | 90119-06767 | Bolt, W/washer(For Engine Under Cover) |
| 9017906219 | 90179-06219 | Nut |
| 9017906219 | 90182-A0005 | Nut |
| 9054107036 | 90541-07036 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 58151-47050 | Insulator, Front Floor Heat, No.1 | Floor Insulator ([05.2012 - ] (1205- )) |
| 58153-47030 | Insulator, Front Floor Heat, No.2 | Floor Insulator ([05.2012 - ] (1205- )) |
| 58327-47020 | Insulator, Main Muffler Heat - MAIN MUFFLER HEAT, RH | Floor Insulator ([05.2012 - ] (1205- )) |
| 90119-06767 | Bolt, W/washer(For Engine Under Cover) | Floor Insulator ([05.2012 - ] (1205- )) |
| 90179-06219 | Nut | Floor Insulator ([05.2012 - ] (1205- )) |
| 90182-A0005 | Nut | Floor Insulator ([05.2012 - ] (1205- )) |
| 90541-07036 | CUSHION | Floor Insulator ([05.2012 - ] (1205- )) |
