Search › Model › ZVW35

ZVW35

Toyota PRIUS · 2009 · 3,609 parts · 195 categories

3,609 items

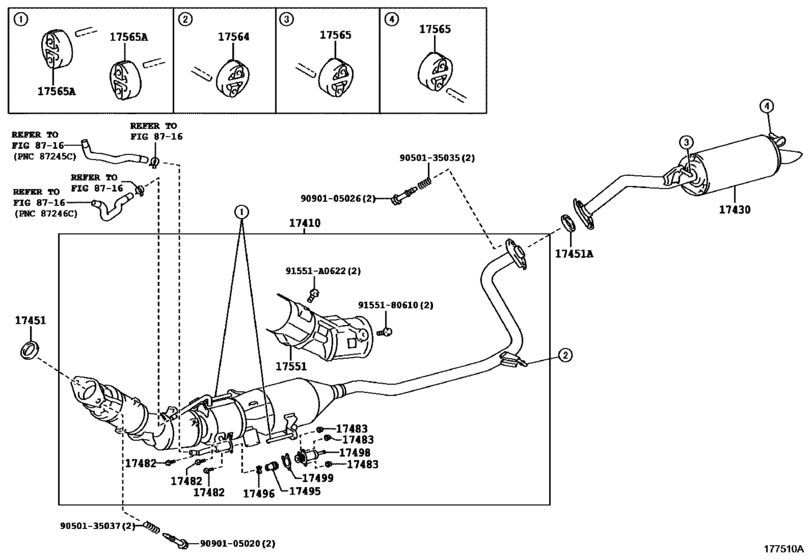

Exhaust Pipe ([05.2012 - ] (1205- )) 22

#	OEM	Part name
17410	17410-37300	Pipe Assy, Exhaust, Front
17430	17430-37300	Pipe Assy, Exhaust, Tail
17451	17451-28040	Gasket, Exhaust Pipe
17451	17451-28041	Gasket, Exhaust Pipe
17451	17451-23042	Gasket, Exhaust Pipe, Center
17482	17482-47010	Bolt, Exhaust Pipe Gas Control Actuator
17483	17483-47010	Nut, Exhaust Pipe Gas Control Actuator
17495	17495-47010	Actuator, Exhaust Pipe Gas Control
17496	17496-47010	Stopper, Exhaust Pipe Gas Control Actuator
17498	17498-47010	Case, Exhaust Pipe Gas Control Actuator
17499	17499-47010	Gasket, Exhaust Pipe Gas Control Actuator
17551	17551-37030	Insulator, Exhaust Pipe Heat, No.1
17551	17055-37010	Insulator, Exhaust Pipe Heat, No.1
17564	17565-22030	Support, Exhaust Pipe, No.1
17565	17565-22040	Support, Exhaust Pipe, No.1
17565	17565-28010	Support, Exhaust Pipe, No.1
91551	91551-A0622	BOLT FLANGE
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9155180610	91551-80610	BOLT FLANGE

OEM	Part name	Category
17055-37010	Insulator, Exhaust Pipe Heat, No.1	Exhaust Pipe ([05.2012 - ] (1205- ))
17410-37300	Pipe Assy, Exhaust, Front	Exhaust Pipe ([05.2012 - ] (1205- ))
17430-37300	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2012 - ] (1205- ))
17451-23042	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([05.2012 - ] (1205- ))
17451-28040	Gasket, Exhaust Pipe	Exhaust Pipe ([05.2012 - ] (1205- ))
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([05.2012 - ] (1205- ))
17482-47010	Bolt, Exhaust Pipe Gas Control Actuator	Exhaust Pipe ([05.2012 - ] (1205- ))
17483-47010	Nut, Exhaust Pipe Gas Control Actuator	Exhaust Pipe ([05.2012 - ] (1205- ))
17495-47010	Actuator, Exhaust Pipe Gas Control	Exhaust Pipe ([05.2012 - ] (1205- ))
17496-47010	Stopper, Exhaust Pipe Gas Control Actuator	Exhaust Pipe ([05.2012 - ] (1205- ))
17498-47010	Case, Exhaust Pipe Gas Control Actuator	Exhaust Pipe ([05.2012 - ] (1205- ))
17499-47010	Gasket, Exhaust Pipe Gas Control Actuator	Exhaust Pipe ([05.2012 - ] (1205- ))
17551-37030	Insulator, Exhaust Pipe Heat, No.1	Exhaust Pipe ([05.2012 - ] (1205- ))
17565-22030	Support, Exhaust Pipe, No.1	Exhaust Pipe ([05.2012 - ] (1205- ))
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([05.2012 - ] (1205- ))
17565-28010	Support, Exhaust Pipe, No.1	Exhaust Pipe ([05.2012 - ] (1205- ))
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([05.2012 - ] (1205- ))
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([05.2012 - ] (1205- ))
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([05.2012 - ] (1205- ))
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([05.2012 - ] (1205- ))
91551-80610	BOLT FLANGE	Exhaust Pipe ([05.2012 - ] (1205- ))
91551-A0622	BOLT FLANGE	Exhaust Pipe ([05.2012 - ] (1205- ))
