Search › Model › ZVW35

ZVW35

Toyota PRIUS · 2009 · 3,609 parts · 195 categories

3,609 items

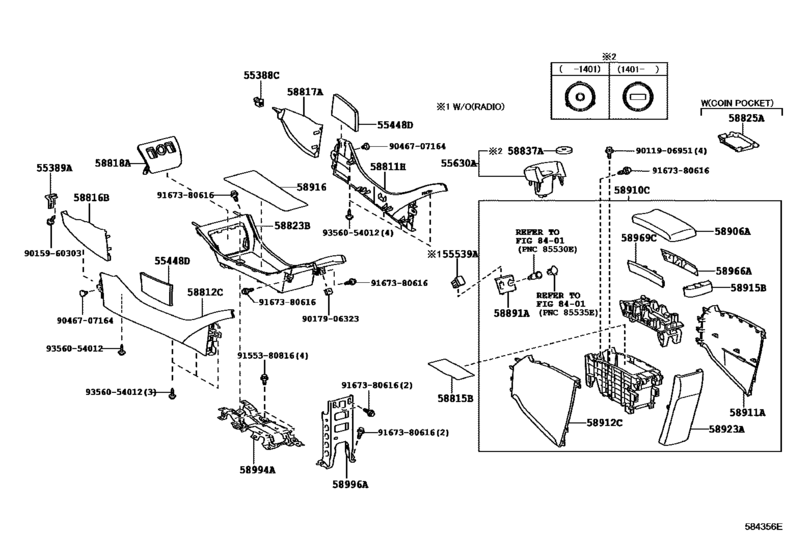

Console Box & Bracket ([05.2012 - ] (1205- )LHD) 60

#	OEM	Part name
55388	55388-42010	Bracket, Console Mounting, Rh - FINISH PANEL MOUNTING, NO.2
55389	55389-12040	Bracket, Console Mounting, Lh - FINISH PANEL MOUNTING, NO.1
55448	55448-47070	Cushion, Instrument Panel Finish Panel, No.1
55539	55539-47070	Cover, Spare Switch Hole
55630	55630-47030	Holder, Rear Console Box, Cup
58811	58811-47010-C0	Box, Console, Rh
58811	58811-47010-G0	Box, Console, Rh
58812	58812-47010-C0	Box, Console, Lh
58812	58812-47010-G0	Box, Console, Lh
58815	58815-47050	Carpet, Console Box
58816	58816-47020-C0	Insert, Console Box
58816	58816-47020-G0	Insert, Console Box - CONSOLE BOX, FRONT NO.2
58817	58817-47020-C0	Insert, Console Box, Front No.2
58817	58817-47020-G0	Insert, Console Box
58818	58818-47060-C0	Cover, Console Box, Fr
58818	58818-47060-G0	Cover, Console Box, Fr
58823	58823-47020-C0	Box, Console Compartment
58823	58823-47020-G0	Box, Console Compartment
58825	58825-47020	Pocket, Console Box
58837	55633-50030	Support, Instrument Panel Cup Holder, No.1
58837	58837-47010	Support, Instrument Panel Cup Holder, No.1
58891	58819-47010	Filler, Console Box, Front
58906	58906-47041-B2	Pad Sub-Assy, Console Compartment Door
58906	58906-47042-B2	Pad Sub-Assy, Console Compartment Door
58906	58906-47041-G2	Pad Sub-Assy, Console Compartment Door
58906	58906-47042-G2	Pad Sub-Assy, Console Compartment Door
58906	58906-47050-C2	Pad Sub-Assy, Console Compartment Door
58906	58906-47050-G1	Pad Sub-Assy, Console Compartment Door
58910	58901-47190-B3	Box Assy, Console, Rear
58910	58901-47191-B3	Box Assy, Console, Rear
58910	58901-47190-G2	Box Assy, Console, Rear
58910	58901-47191-G2	Box Assy, Console, Rear
58910	58901-47200-C2	Box Assy, Console, Rear
58910	58901-47200-G1	Box Assy, Console, Rear
58911	58911-47050-C0	Panel, Box Side, No.1
58911	58911-47051-C0	Panel, Box Side, No.1
58911	58911-47050-G0	Panel, Box Side, No.1
58911	58911-47051-G0	Panel, Box Side, No.1
58912	58912-47060-C0	Panel, Box Side, No.2
58912	58912-47061-C0	Panel, Box Side, No.2
58912	58912-47060-G0	Panel, Box Side, No.2
58912	58912-47061-G0	Panel, Box Side, No.2
58915	58915-47020-C0	Cover, Console Compartment Door Box, Rear
58915	58915-47020-G0	Cover, Console Compartment Door Box, Rear
58916	58916-47010-C1	Mat, Box Bottom
58923	58923-47030-C0	Panel, Console Rear End
58923	58923-47030-G0	Panel, Console Rear End
58966	58966-47020-C0	Insert, Console Compartment Door, No.1
58966	58966-47020-G0	Insert, Console Compartment Door, No.1
58969	58969-47020-C0	Insert, Console Compartment Door, No.2
58969	58969-47020-G0	Insert, Console Compartment Door, No.2
58994	58994-47010	Bracket, Console Box Mounting, No.4
58996	58996-47020	Bracket, Console Box Mounting, No.2
9011906951	90119-06951	BOLT WWASHER
9015960303	90159-60303	SCREW
9017906323	90179-06323	Nut
9046707164	90467-07164	Clip(For Front Fender Apron Seal)
9155380816	91553-80816	Bolt (For Transmission Control Cable Bracket)
9167380616	91673-80616	Bolt, W/washer
9356054012	93560-54012	Screw

OEM	Part name	Category
55388-42010	Bracket, Console Mounting, Rh - FINISH PANEL MOUNTING, NO.2	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
55389-12040	Bracket, Console Mounting, Lh - FINISH PANEL MOUNTING, NO.1	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
55448-47070	Cushion, Instrument Panel Finish Panel, No.1	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
55539-47070	Cover, Spare Switch Hole	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
55630-47030	Holder, Rear Console Box, Cup	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
55633-50030	Support, Instrument Panel Cup Holder, No.1	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58811-47010-C0	Box, Console, Rh	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58811-47010-G0	Box, Console, Rh	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58812-47010-C0	Box, Console, Lh	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58812-47010-G0	Box, Console, Lh	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58815-47050	Carpet, Console Box	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58816-47020-C0	Insert, Console Box	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58816-47020-G0	Insert, Console Box - CONSOLE BOX, FRONT NO.2	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58817-47020-C0	Insert, Console Box, Front No.2	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58817-47020-G0	Insert, Console Box	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58818-47060-C0	Cover, Console Box, Fr	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58818-47060-G0	Cover, Console Box, Fr	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58819-47010	Filler, Console Box, Front	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58823-47020-C0	Box, Console Compartment	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58823-47020-G0	Box, Console Compartment	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58825-47020	Pocket, Console Box	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58837-47010	Support, Instrument Panel Cup Holder, No.1	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58901-47190-B3	Box Assy, Console, Rear	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58901-47190-G2	Box Assy, Console, Rear	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58901-47191-B3	Box Assy, Console, Rear	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58901-47191-G2	Box Assy, Console, Rear	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58901-47200-C2	Box Assy, Console, Rear	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58901-47200-G1	Box Assy, Console, Rear	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58906-47041-B2	Pad Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58906-47041-G2	Pad Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58906-47042-B2	Pad Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58906-47042-G2	Pad Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58906-47050-C2	Pad Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58906-47050-G1	Pad Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58911-47050-C0	Panel, Box Side, No.1	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58911-47050-G0	Panel, Box Side, No.1	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58911-47051-C0	Panel, Box Side, No.1	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58911-47051-G0	Panel, Box Side, No.1	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58912-47060-C0	Panel, Box Side, No.2	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58912-47060-G0	Panel, Box Side, No.2	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58912-47061-C0	Panel, Box Side, No.2	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58912-47061-G0	Panel, Box Side, No.2	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58915-47020-C0	Cover, Console Compartment Door Box, Rear	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58915-47020-G0	Cover, Console Compartment Door Box, Rear	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58916-47010-C1	Mat, Box Bottom	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58923-47030-C0	Panel, Console Rear End	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58923-47030-G0	Panel, Console Rear End	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58966-47020-C0	Insert, Console Compartment Door, No.1	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58966-47020-G0	Insert, Console Compartment Door, No.1	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58969-47020-C0	Insert, Console Compartment Door, No.2	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58969-47020-G0	Insert, Console Compartment Door, No.2	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58994-47010	Bracket, Console Box Mounting, No.4	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
58996-47020	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
90119-06951	BOLT WWASHER	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
90159-60303	SCREW	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
90179-06323	Nut	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
90467-07164	Clip(For Front Fender Apron Seal)	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
91553-80816	Bolt (For Transmission Control Cable Bracket)	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
91673-80616	Bolt, W/washer	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
93560-54012	Screw	Console Box & Bracket ([05.2012 - ] (1205- )LHD)
