Search › Model › ZVW35
ZVW35

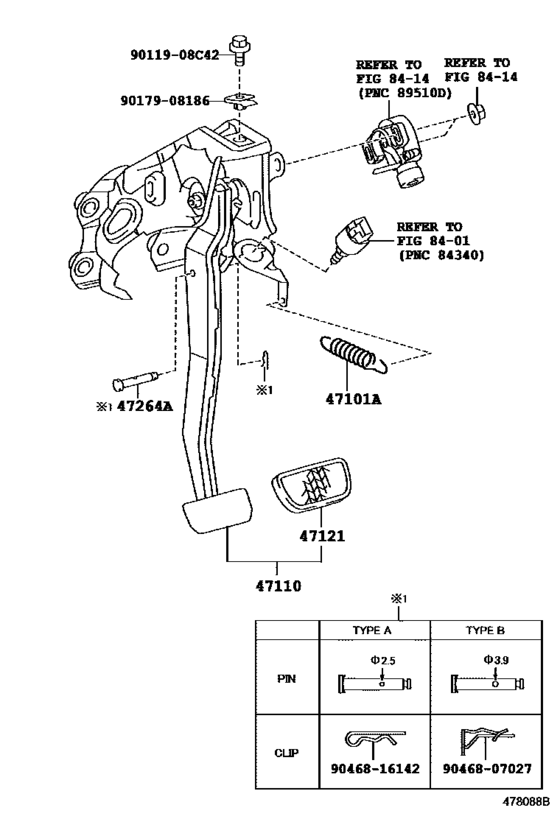

Brake Pedal & Bracket ([05.2012 - ] (1205- )RHD) 9
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-14050 | Spring(For Clutch Pedal) |
| 47110 | 47110-76050 | Support Assy, Brake Pedal |
| 47121 | 47121-50020 | Pad, Brake Pedal |
| 47264 | 47148-47020 | Pin(For Push Rod) |
| 47264 | 47148-47030 | Pin(For Push Rod) |
| 9011908 | 90119-08C42 | New Genuine Part |
| 9017908186 | 90179-08186 | New Genuine Part |
| 9046807027 | 90468-07027 | Clip(For Push Rod Clevis Pin) |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 47110-76050 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([05.2012 - ] (1205- )RHD) |
| 47121-50020 | Pad, Brake Pedal | Brake Pedal & Bracket ([05.2012 - ] (1205- )RHD) |
| 47148-47020 | Pin(For Push Rod) | Brake Pedal & Bracket ([05.2012 - ] (1205- )RHD) |
| 47148-47030 | Pin(For Push Rod) | Brake Pedal & Bracket ([05.2012 - ] (1205- )RHD) |
| 90119-08C42 | New Genuine Part | Brake Pedal & Bracket ([05.2012 - ] (1205- )RHD) |
| 90179-08186 | New Genuine Part | Brake Pedal & Bracket ([05.2012 - ] (1205- )RHD) |
| 90468-07027 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([05.2012 - ] (1205- )RHD) |
| 90468-16142 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([05.2012 - ] (1205- )RHD) |
| 90507-14050 | Spring(For Clutch Pedal) | Brake Pedal & Bracket ([05.2012 - ] (1205- )RHD) |
