ZVW30

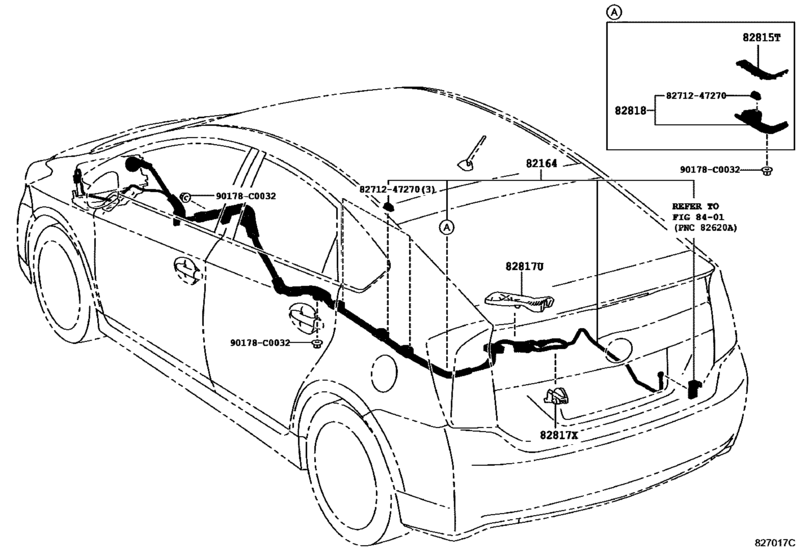

Wiring & Clamp ([12.2011 - ] HIGH-TENSION CABLE (1112- )) 8
| # | OEM | Part name |
|---|---|---|
| 82164 | 82164-47080 | Wire, Frame |
| 82164 | 82164-47200 | Wire, Frame |
| 82815 | 82815-47430 | Cover, Wiring Harness Protector, No.16 |
| 82817 | 82817-47440 | Protector, Wiring Harness, No.16 |
| 82817 | 82817-47430 | Protector, Wiring Harness, N0.17 |
| 82818 | 82817-47670 | Protector, Wiring Harness, No.4 |
| 90178 | 90178-C0032 | Nut, Wire Adjusting, No.1 |
| 8271247270 | 82712-47270 | Support, Wiring Harness |
| OEM | Part name | Category |
|---|---|---|
| 82164-47080 | Wire, Frame | Wiring & Clamp ([12.2011 - ] HIGH-TENSION CABLE (1112- )) |
| 82164-47200 | Wire, Frame | Wiring & Clamp ([12.2011 - ] HIGH-TENSION CABLE (1112- )) |
| 82712-47270 | Support, Wiring Harness | Wiring & Clamp ([12.2011 - ] HIGH-TENSION CABLE (1112- )) |
| 82815-47430 | Cover, Wiring Harness Protector, No.16 | Wiring & Clamp ([12.2011 - ] HIGH-TENSION CABLE (1112- )) |
| 82817-47430 | Protector, Wiring Harness, N0.17 | Wiring & Clamp ([12.2011 - ] HIGH-TENSION CABLE (1112- )) |
| 82817-47440 | Protector, Wiring Harness, No.16 | Wiring & Clamp ([12.2011 - ] HIGH-TENSION CABLE (1112- )) |
| 82817-47670 | Protector, Wiring Harness, No.4 | Wiring & Clamp ([12.2011 - ] HIGH-TENSION CABLE (1112- )) |
| 90178-C0032 | Nut, Wire Adjusting, No.1 | Wiring & Clamp ([12.2011 - ] HIGH-TENSION CABLE (1112- )) |
