Search › Model › ZVW30
ZVW30

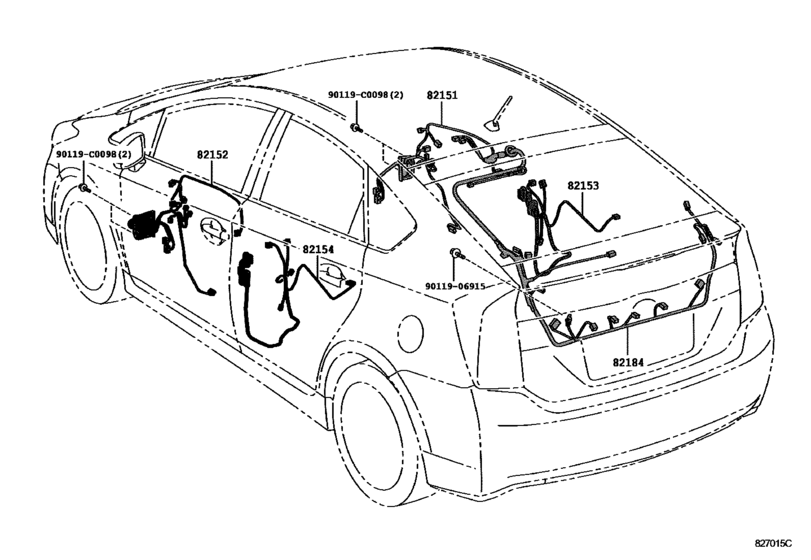

Wiring & Clamp ([12.2011 - ] DOOR (1112- )) 8
| # | OEM | Part name |
|---|---|---|
| 82151 | 82151-47320 | Wire, Front Door, Rh |
| 82152 | 82152-47320 | Wire, Front Door, Lh |
| 82153 | 82153-47310 | Wire, Rear Door, No.1 |
| 82154 | 82154-47310 | Wire, Rear Door, No.2 |
| 82184 | 82184-47240 | Wire, Back Door, No.1 |
| 82184 | 82184-47370 | Wire, Back Door, No.1 |
| 90119 | 90119-C0098 | New Genuine Part |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82151-47320 | Wire, Front Door, Rh | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82152-47320 | Wire, Front Door, Lh | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82153-47310 | Wire, Rear Door, No.1 | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82154-47310 | Wire, Rear Door, No.2 | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82184-47240 | Wire, Back Door, No.1 | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82184-47370 | Wire, Back Door, No.1 | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 90119-06915 | BOLT W-WASHER | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 90119-C0098 | New Genuine Part | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
