ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

← Back to categories

4,282 items

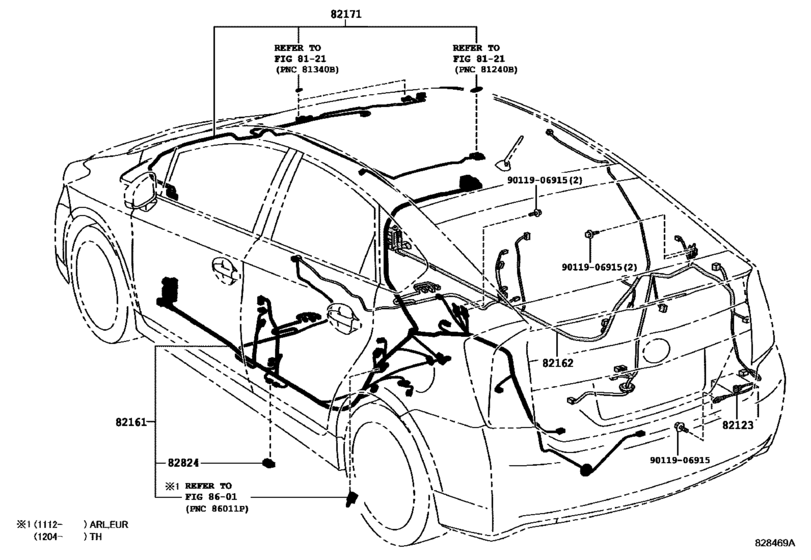

Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- )) 14

#	OEM	Part name
82123	82123-47040	Wire, Engine, No.3
82161	82161-47520	Wire, Floor
82161	82161-47720	Wire, Floor
82161	82161-47C00	Wire, Floor
82161	82161-47C80	Wire, Floor
82162	82162-47621	Wire, Floor, No.2
82162	82162-47631	Wire, Floor, No.2
82162	82162-47B20	Wire, Floor, No.2
82162	82162-47B40	Wire, Floor, No.2
82171	82171-47170	Wire, Roof, No.1
82171	82171-47180	Wire, Roof, No.1
82171	82171-47190	Wire, Roof, No.1
82171	82171-47200	Wire, Roof, No.1
9011906915	90119-06915	BOLT W-WASHER

OEM	Part name	Category
82123-47040	Wire, Engine, No.3	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82161-47520	Wire, Floor	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82161-47720	Wire, Floor	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82161-47C00	Wire, Floor	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82161-47C80	Wire, Floor	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82162-47621	Wire, Floor, No.2	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82162-47631	Wire, Floor, No.2	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82162-47B20	Wire, Floor, No.2	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82162-47B40	Wire, Floor, No.2	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82171-47170	Wire, Roof, No.1	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82171-47180	Wire, Roof, No.1	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82171-47190	Wire, Roof, No.1	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
82171-47200	Wire, Roof, No.1	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
90119-06915	BOLT W-WASHER	Wiring & Clamp ([04.2009 - ] FLOOR & ROOF (0904- ))
