Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

← Back to categories

4,282 items

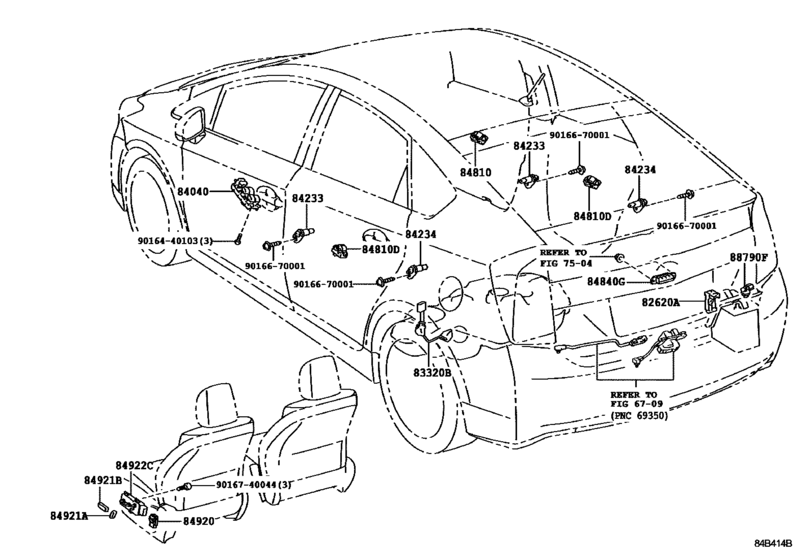

Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- )) 17

#	OEM	Part name
82620	82620-47070	Block Assy, Fusible Link
83320	83320-47080	Gage Assy, Fuel Sender
84040	84040-33100	Master Switch Assy,multiplex Network
84233	84231-02130	Switch Assy, Courtesy Lamp (For Front Door)
84233	84231-0R010	Switch Assy, Courtesy Lamp (For Front Door)
84810	84810-33120	Switch Assy, Power Window Regulator
84810	84810-06090	Switch Assy, Power Window Regulator
84840	84840-28030	Switch Assy, Luggage Compartment Door Opening
84840	84840-28040	Switch Assy, Back Door Opener
84920	84920-60090-B3	Switch, Front Power Seat(For Lumbar)
84921	84921-60180-B3	Knob, Power Seat Switch (For Reclining)
84921	84921-60160-B3	Knob, Power Seat Switch (For Slide & Vertical)
84922	84922-60180	Switch, Front Power Seat - FRONT POWER SEAT, LH
88790	88790-22131	Thermistor, Cooler
9016440103	90164-40103	SCREW BINDING
9016670001	90166-70001	Screw Hex Lobular
9016740044	90167-40044	BOLT

OEM	Part name	Category
82620-47070	Block Assy, Fusible Link	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
83320-47080	Gage Assy, Fuel Sender	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84040-33100	Master Switch Assy,multiplex Network	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84231-02130	Switch Assy, Courtesy Lamp (For Front Door)	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84231-0R010	Switch Assy, Courtesy Lamp (For Front Door)	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84810-06090	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84810-33120	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84840-28030	Switch Assy, Luggage Compartment Door Opening	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84840-28040	Switch Assy, Back Door Opener	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84920-60090-B3	Switch, Front Power Seat(For Lumbar)	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84921-60160-B3	Knob, Power Seat Switch (For Slide & Vertical)	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84921-60180-B3	Knob, Power Seat Switch (For Reclining)	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
84922-60180	Switch, Front Power Seat - FRONT POWER SEAT, LH	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
88790-22131	Thermistor, Cooler	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
90164-40103	SCREW BINDING	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
90166-70001	Screw Hex Lobular	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))
90167-40044	BOLT	Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- ))

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 338
Collected: 2026-08-02
