Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

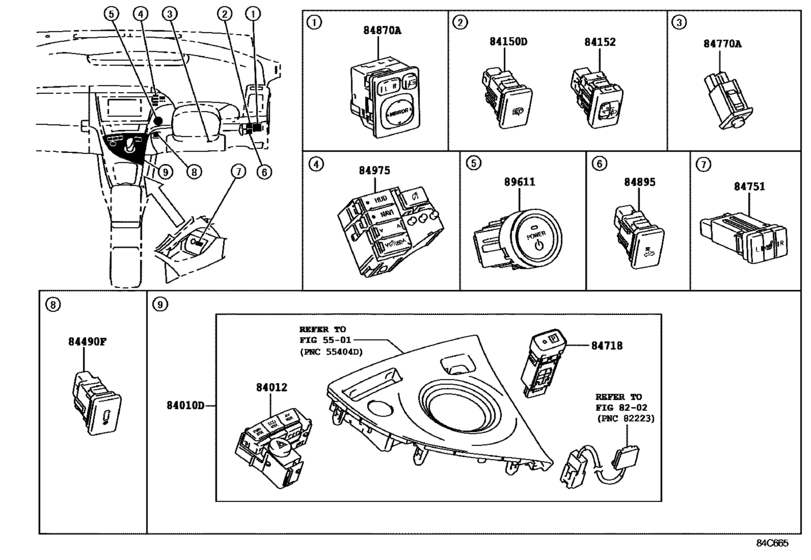

Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH) 30

#	OEM	Part name
84010	84010-47010-B0	Control & Panel Assy, Integration
84010	84010-47011-B0	Control & Panel Assy, Integration
84010	84010-47050	Control & Panel Assy, Integration
84012	84012-47010	Control & Panel Sub-Assy, Integration
84012	84012-47011	Control & Panel Sub-Assy, Integration
84012	84012-47050	Control & Panel Sub-Assy, Integration
84012	84012-47051	Control & Panel Sub-Assy, Integration
84150	84150-47010	Switch Assy, Headlamp Cleaner
84150	84150-47011	Switch Assy, Headlamp Cleaner
84152	84152-52070	Switch, Headlamp Leveling
84152	84152-52071	Switch, Headlamp Leveling
84718	84718-47010	Switch, Transmission Shift Main
84718	84718-47011	Switch, Transmission Shift Main
84718	84718-47050	Switch, Transmission Shift Main
84718	84718-47051	Switch, Transmission Shift Main
84751	84751-52030	Switch, Seat Heater
84751	84751-52031	Switch, Seat Heater
84870	84870-28040	Switch Assy, Outer Mirror
84870	84870-34010	Switch Assy, Outer Mirror
84895	84895-47010	Switch, Ventilator
84895	84895-47011	Switch, Ventilator
84975	84975-47080	Switch, Trip
84975	84975-47120	Switch, Trip
84975	84975-47130	Switch, Trip
89611	89611-33011	Switch, Push Start
89611	89611-33014	Switch, Push Start
89611	89611-33012	Switch, Push Start
89611	89611-33013	Switch, Push Start
89611	89611-75043	Switch, Push Start
89611	89611-75044	Switch, Push Start

OEM	Part name	Category
84010-47010-B0	Control & Panel Assy, Integration	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84010-47011-B0	Control & Panel Assy, Integration	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84010-47050	Control & Panel Assy, Integration	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84012-47010	Control & Panel Sub-Assy, Integration	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84012-47011	Control & Panel Sub-Assy, Integration	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84012-47050	Control & Panel Sub-Assy, Integration	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84012-47051	Control & Panel Sub-Assy, Integration	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84150-47010	Switch Assy, Headlamp Cleaner	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84150-47011	Switch Assy, Headlamp Cleaner	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84152-52070	Switch, Headlamp Leveling	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84152-52071	Switch, Headlamp Leveling	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84718-47010	Switch, Transmission Shift Main	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84718-47011	Switch, Transmission Shift Main	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84718-47050	Switch, Transmission Shift Main	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84718-47051	Switch, Transmission Shift Main	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84751-52030	Switch, Seat Heater	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84751-52031	Switch, Seat Heater	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84870-28040	Switch Assy, Outer Mirror	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84870-34010	Switch Assy, Outer Mirror	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84895-47010	Switch, Ventilator	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84895-47011	Switch, Ventilator	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84975-47080	Switch, Trip	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84975-47120	Switch, Trip	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
84975-47130	Switch, Trip	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
89611-33011	Switch, Push Start	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
89611-33012	Switch, Push Start	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
89611-33013	Switch, Push Start	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
89611-33014	Switch, Push Start	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
89611-75043	Switch, Push Start	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
89611-75044	Switch, Push Start	Switch & Relay & Computer ([04.2012 - ] INSTRUMENT PANEL (1112- )RHD..ARL,EUR ; (1204- )TH)
