Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

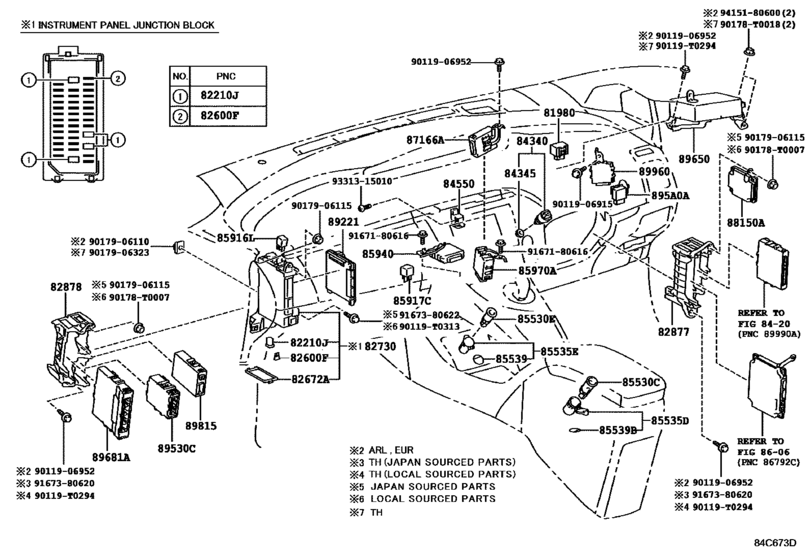

Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH) 60

#	OEM	Part name
81980	81980-46010	Flasher Assy, Turn Signal
82210	90982-08306	Fusible Link
82600	90982-09019	Instrument Panel Fuse
82600	90982-09020	Fusible Link
82600	90982-09021	Fusible Link
82600	90982-09022	Instrument Panel Fuse
82600	90982-09023	Instrument Panel Fuse
82600	90982-09024	Instrument Panel Fuse
82600	90982-09025	Instrument Panel Fuse
82672	82672-47091	Cover, Junction Block
82672	82672-47130	Cover, Junction Block
82730	82730-47441	Block Assy, Instrument Panel Junction
82730	82730-47500	Block Assy, Instrument Panel Junction
82877	82877-47020	Box, Computer Integration, Rh
82878	82878-47010	Box, Computer Integration, Lh
84340	84340-59645	Switch Assy, Stop Lamp
84340	84340-69075	Switch Assy, Stop Lamp
84345	84345-51010	Adjuster, Stop Lamp Switch Mounting
84550	84550-47010	Switch Assy, Parking Brake
85530	85530-42010	Socket Assy, Power Outlet, No.1
85535	85535-33060	Cover, Power Outlet Socket, Center - POWER POINT SOCKET
85535	85535-60100-C0	Cover, Power Outlet Socket, No.1 (Black)
85539	85539-60020	Label, Power Outlet Notice
85916	90987-02027	Relay
85917	90987-04010	Relay Assy (For Heater Blower Motor)
85940	85940-47020	Relay Assy, Windshield Wiper
85940	85940-47030	Relay Assy, Windshield Wiper
85970	85970-47020	Relay Assy, Double Lock Door Control
87166	87166-47010	Computer, Solar Battery Airconditioner Blower Vent
89221	89220-47340	Computer, Multiplex Network Body
89221	89220-47350	Computer, Multiplex Network Body
89221	89220-4E630	Computer, Multiplex Network Body
89221	89220-4E640	Computer, Multiplex Network Body
89221	89220-4E650	Computer, Multiplex Network Body
89221	89220-4E660	Computer, Multiplex Network Body
89530	89535-75030	Computer Assy, Transmission Control
89530	89535-76020	Computer Assy, Transmission Control
89530	89535-76021	Computer Assy, Transmission Control
89650	89650-47270	Computer Assy, Power Steering
89650	89650-47520	Computer Assy, Power Steering
89681	89681-47230	Computer, Power Management Control
89681	89681-47232	Computer Assy, Idle-up
89681	89681-47320	Computer, Power Management Control
89681	89681-47460	Computer, Power Management Control
89960	89960-47070	Computer Assy, Headlamp Leveling
89960	89960-47140	Computer Assy, Headlamp Leveling
90119	90119-T0294	BOLT WWASHER
90119	90119-T0313	New Genuine Part
90178	90178-T0007	NUT FLANGE
90178	90178-T0018	NUT FLANGE
9011906915	90119-06915	BOLT W-WASHER
9011906952	90119-06952	New Genuine Part
9017906110	90179-06110	New Genuine Part
9017906115	90179-06115	Nut (For Rear Wiper Arm Setting)
9017906323	90179-06323	Nut
9167180616	91671-80616	BOLT FLANGE
9167380620	91673-80620	Bolt
9167380622	91673-80622	BOLT FLANGE
9331315010	93313-15010	SCREW
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
81980-46010	Flasher Assy, Turn Signal	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
82672-47091	Cover, Junction Block	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
82672-47130	Cover, Junction Block	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
82730-47441	Block Assy, Instrument Panel Junction	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
82730-47500	Block Assy, Instrument Panel Junction	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
82877-47020	Box, Computer Integration, Rh	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
82878-47010	Box, Computer Integration, Lh	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
84340-59645	Switch Assy, Stop Lamp	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
84340-69075	Switch Assy, Stop Lamp	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
84345-51010	Adjuster, Stop Lamp Switch Mounting	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
84550-47010	Switch Assy, Parking Brake	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
85530-42010	Socket Assy, Power Outlet, No.1	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
85535-33060	Cover, Power Outlet Socket, Center - POWER POINT SOCKET	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
85535-60100-C0	Cover, Power Outlet Socket, No.1 (Black)	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
85539-60020	Label, Power Outlet Notice	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
85940-47020	Relay Assy, Windshield Wiper	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
85940-47030	Relay Assy, Windshield Wiper	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
85970-47020	Relay Assy, Double Lock Door Control	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
87166-47010	Computer, Solar Battery Airconditioner Blower Vent	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89220-47340	Computer, Multiplex Network Body	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89220-47350	Computer, Multiplex Network Body	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89220-4E630	Computer, Multiplex Network Body	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89220-4E640	Computer, Multiplex Network Body	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89220-4E650	Computer, Multiplex Network Body	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89220-4E660	Computer, Multiplex Network Body	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89535-75030	Computer Assy, Transmission Control	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89535-76020	Computer Assy, Transmission Control	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89535-76021	Computer Assy, Transmission Control	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89650-47270	Computer Assy, Power Steering	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89650-47520	Computer Assy, Power Steering	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89681-47230	Computer, Power Management Control	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89681-47232	Computer Assy, Idle-up	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89681-47320	Computer, Power Management Control	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89681-47460	Computer, Power Management Control	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89960-47070	Computer Assy, Headlamp Leveling	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
89960-47140	Computer Assy, Headlamp Leveling	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90119-06915	BOLT W-WASHER	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90119-06952	New Genuine Part	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90119-T0294	BOLT WWASHER	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90119-T0313	New Genuine Part	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90178-T0007	NUT FLANGE	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90178-T0018	NUT FLANGE	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90179-06110	New Genuine Part	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90179-06115	Nut (For Rear Wiper Arm Setting)	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90179-06323	Nut	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90982-08306	Fusible Link	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90982-09019	Instrument Panel Fuse	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90982-09020	Fusible Link	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90982-09021	Fusible Link	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90982-09022	Instrument Panel Fuse	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90982-09023	Instrument Panel Fuse	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90982-09024	Instrument Panel Fuse	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90982-09025	Instrument Panel Fuse	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90987-02027	Relay	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
90987-04010	Relay Assy (For Heater Blower Motor)	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
91671-80616	BOLT FLANGE	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
91673-80620	Bolt	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
91673-80622	BOLT FLANGE	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
93313-15010	SCREW	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Switch & Relay & Computer ([04.2012 - ] COWL (1112- )RHD..ARL,EUR ; (1204- )TH)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 338
Collected: 2026-08-02
