Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

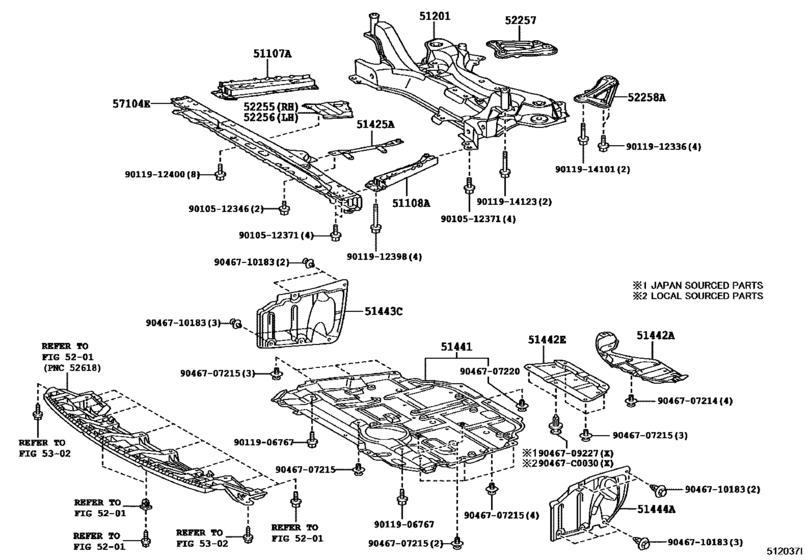

Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- )) 31

#	OEM	Part name
51107	51107-12010	Reinforcement Sub-Assy, Side Rail, Rear Rh
51108	51108-12010	Reinforcement Sub-Assy, Side Rail, Rear Lh
51201	51201-12441	Crossmember Sub-Assy, Front Suspension
51201	51201-12442	Crossmember Sub-Assy, Front Suspension
51425	51408-47020	Reinforcement Sub-Assy, Engine Support Bracket, Front Rh
51441	51410-12104	Cover, Engine Under, No.1
51441	51410-12105	Cover, Engine Under, No.1
51442	51442-12210	Cover, Engine Under, No.2
51442	51442-12270	Cover, Engine Under, No.2
51443	51443-12080	Cover, Engine Under, Rear Rh
51444	51444-12050	Cover, Engine Under, Rear Lh
52255	52255-12010	Brace, Front Suspension Member, Front Rh
52256	52256-12010	Brace, Front Suspension Member, Front Lh
52257	52257-21040	Brace, Front Suspension Member, Rear Rh
52258	52258-21040	Brace, Front Suspension Member, Rear Lh
57104	57104-47020	Member Sub-Assy, Front Cross
90467	90467-C0030	New Genuine Part
9010512346	90105-12346	Bolt (For Front Lower Ball Joint)
9010512371	90105-12371	New Genuine Part
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9011912336	90119-12336	BOLT WWASHER
9011912398	90119-12398	BOLT WWASHER
9011912400	90119-12400	BOLT W-WASHER
9011914101	90119-14101	BOLT W-WASHER
9011914123	90119-14123	Bolt(For Front Suspension Lower Arm No.2 Rh)
9011914123	90119-14204	BOLT WWASHER
9046707214	90467-07214	Clip, Front Fender Liner
9046707215	90467-07215	Clip
9046707220	90467-07220	Clip
9046709227	90467-09227	Clip, Engine Under Cover, No.2
9046710183	90467-10183	Clip(For Luggage Compartment Trim Inner Cover)

OEM	Part name	Category
51107-12010	Reinforcement Sub-Assy, Side Rail, Rear Rh	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
51108-12010	Reinforcement Sub-Assy, Side Rail, Rear Lh	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
51201-12441	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
51201-12442	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
51408-47020	Reinforcement Sub-Assy, Engine Support Bracket, Front Rh	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
51410-12104	Cover, Engine Under, No.1	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
51410-12105	Cover, Engine Under, No.1	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
51442-12210	Cover, Engine Under, No.2	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
51442-12270	Cover, Engine Under, No.2	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
51443-12080	Cover, Engine Under, Rear Rh	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
51444-12050	Cover, Engine Under, Rear Lh	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
52255-12010	Brace, Front Suspension Member, Front Rh	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
52256-12010	Brace, Front Suspension Member, Front Lh	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
52257-21040	Brace, Front Suspension Member, Rear Rh	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
52258-21040	Brace, Front Suspension Member, Rear Lh	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
57104-47020	Member Sub-Assy, Front Cross	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90105-12346	Bolt (For Front Lower Ball Joint)	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90105-12371	New Genuine Part	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90119-06767	Bolt, W/washer(For Engine Under Cover)	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90119-12336	BOLT WWASHER	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90119-12398	BOLT WWASHER	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90119-12400	BOLT W-WASHER	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90119-14101	BOLT W-WASHER	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90119-14123	Bolt(For Front Suspension Lower Arm No.2 Rh)	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90119-14204	BOLT WWASHER	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90467-07214	Clip, Front Fender Liner	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90467-07215	Clip	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90467-07220	Clip	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90467-09227	Clip, Engine Under Cover, No.2	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90467-10183	Clip(For Luggage Compartment Trim Inner Cover)	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))
90467-C0030	New Genuine Part	Suspension Crossmember & Under Cover ([12.2011 - ] CROSSMEMBER & ENGINE UNDER COVER (1112- ))

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 338
Collected: 2026-08-02
