Search › Model › ZVW30
ZVW30

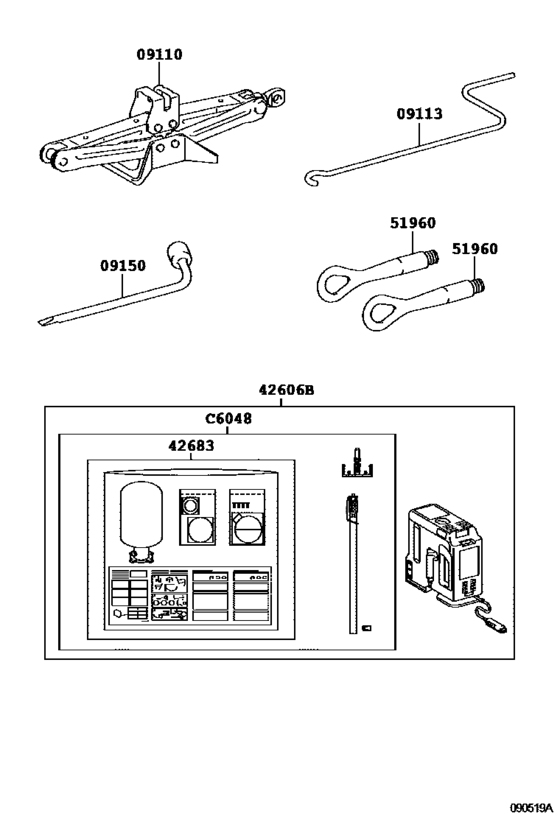

Standard Tool ([04.2009 - 12.2011] (0904-1112)) 8
| # | OEM | Part name |
|---|---|---|
| 9110 | 09111-30190 | Jack Assy |
| 9110 | 09111-33030 | Jack Assy |
| 9110 | 09111-76010 | Jack Assy |
| 9113 | 09113-52030 | Handle, Jack |
| 9113 | 09113-52031 | Handle, Jack |
| 9150 | 09150-35070 | Wrench, Hub Nut Box |
| 51960 | 51961-50040 | Hook Assy, Front |
| 51960 | 51961-50042 | Hook Assy, Front |
| OEM | Part name | Category |
|---|---|---|
| 09111-30190 | Jack Assy | Standard Tool ([04.2009 - 12.2011] (0904-1112)) |
| 09111-33030 | Jack Assy | Standard Tool ([04.2009 - 12.2011] (0904-1112)) |
| 09111-76010 | Jack Assy | Standard Tool ([04.2009 - 12.2011] (0904-1112)) |
| 09113-52030 | Handle, Jack | Standard Tool ([04.2009 - 12.2011] (0904-1112)) |
| 09113-52031 | Handle, Jack | Standard Tool ([04.2009 - 12.2011] (0904-1112)) |
| 09150-35070 | Wrench, Hub Nut Box | Standard Tool ([04.2009 - 12.2011] (0904-1112)) |
| 51961-50040 | Hook Assy, Front | Standard Tool ([04.2009 - 12.2011] (0904-1112)) |
| 51961-50042 | Hook Assy, Front | Standard Tool ([04.2009 - 12.2011] (0904-1112)) |
