Search › Model › ZVW30
ZVW30

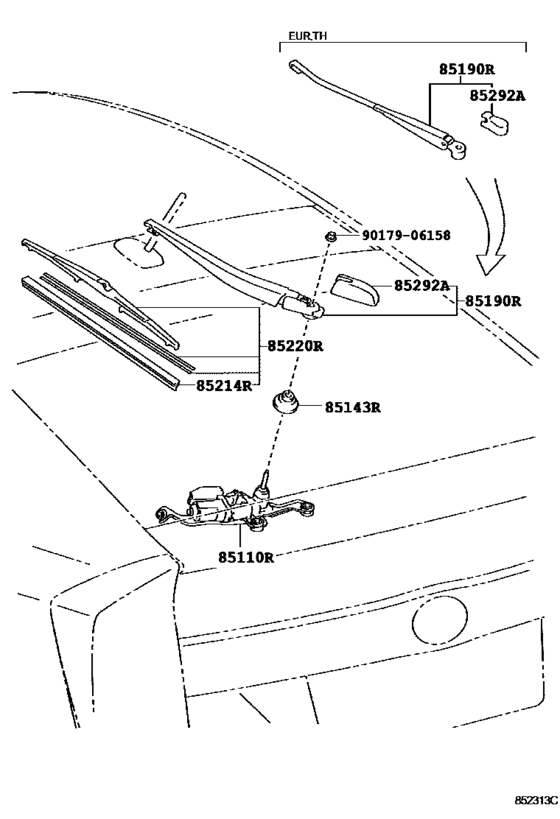

Rear Wiper ([04.2009 - ] (0904- )) 7
| # | OEM | Part name |
|---|---|---|
| 85110 | 85130-47021 | Motor Assy, Rear Wiper |
| 85143 | 85143-72010 | Grommet, Rear Wiper Motor |
| 85190 | 85241-47040 | Arm Assy, Rear Wiper |
| 85214 | 85214-50061 | Rubber, Wiper, Rh |
| 85220 | 85242-47040 | Blade Assy, Rear Wiper |
| 85292 | 85192-13060 | Cover, Rear Wiper Arm |
| 9017906158 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 85130-47021 | Motor Assy, Rear Wiper | Rear Wiper ([04.2009 - ] (0904- )) |
| 85143-72010 | Grommet, Rear Wiper Motor | Rear Wiper ([04.2009 - ] (0904- )) |
| 85192-13060 | Cover, Rear Wiper Arm | Rear Wiper ([04.2009 - ] (0904- )) |
| 85214-50061 | Rubber, Wiper, Rh | Rear Wiper ([04.2009 - ] (0904- )) |
| 85241-47040 | Arm Assy, Rear Wiper | Rear Wiper ([04.2009 - ] (0904- )) |
| 85242-47040 | Blade Assy, Rear Wiper | Rear Wiper ([04.2009 - ] (0904- )) |
| 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Rear Wiper ([04.2009 - ] (0904- )) |
