Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

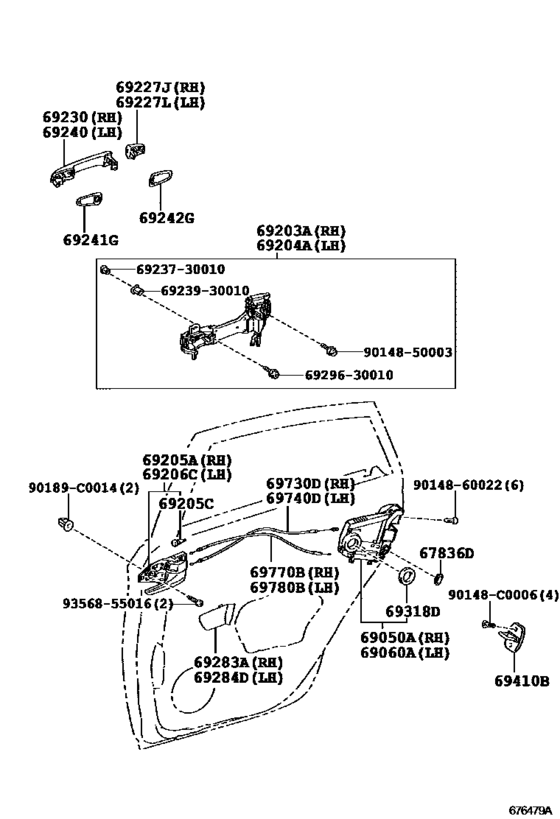

Rear Door Lock & Handle ([12.2011 - ] (1112- )) 31

#	OEM	Part name
67836	67836-12040	Cover, Rear Door Lock Child Protection, Rh
69050	69050-47070	Lock Assy, Rear Door W/motor, Rh
69060	69060-47070	Lock Assy, Rear Door W/motor, Lh
69203	69203-47020	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-47020	Frame Sub-Assy, Rear Door Outside Handle, Lh
69205	69205-47050-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04027	Cushion(For Front Door Inside Handle)
69206	69206-47050-C0	Handle Sub-Assy, Front Door Inside, Lh
69227	69227-47010-A3	Cover, Rear Door Outside Handle, Rh
69227	69227-47010-B2	Cover, Rear Door Outside Handle, Rh
69227	69227-47010-C0	Cover, Rear Door Outside Handle, Rh
69230	69211-74020-A3	Handle Assy, Front Door, Outside Rh
69230	69211-74020-B2	Handle Assy, Front Door, Outside Rh
69230	69211-74020-C0	Handle Assy, Front Door, Outside Rh
69241	69241-30111	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT
69242	69242-47020	Pad, Front Door Outside Handle, Rear
69283	69283-47010-B2	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-47010-B2	Plug, Front Door Inside Handle Bezel, Lh
69318	69318-47010	Seal, Front Door Lock Hole, Rh
69410	69410-0P010	Plate Assy, Front Door Lock Striker
69730	69730-47030	Cable Assy, Rear Door Lock Remote Control, Rh
69770	69770-47040	Cable Assy, Rear Door Inside Locking, Rh
90148	90148-C0006	New Genuine Part
90189	90189-C0014	New Genuine Part
6923730010	69237-30010	Nut, Front Door Handle
6923930010	69239-30010	Bush(For Rear Door Outside Handle)
6929630010	69296-30010	Screw, Door Inside Handle
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9356855016	93568-55016	Screw

OEM	Part name	Category
67836-12040	Cover, Rear Door Lock Child Protection, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69050-47070	Lock Assy, Rear Door W/motor, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69060-47070	Lock Assy, Rear Door W/motor, Lh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69203-47020	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69204-47020	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69205-47050-C0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69206-47050-C0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69211-74020-A3	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69211-74020-B2	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69211-74020-C0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69227-47010-A3	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69227-47010-B2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69227-47010-C0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69237-30010	Nut, Front Door Handle	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69239-30010	Bush(For Rear Door Outside Handle)	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69241-30111	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69242-47020	Pad, Front Door Outside Handle, Rear	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69283-47010-B2	Plug, Front Door Inside Handle Bezel, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69284-47010-B2	Plug, Front Door Inside Handle Bezel, Lh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69296-30010	Screw, Door Inside Handle	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69318-47010	Seal, Front Door Lock Hole, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69410-0P010	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69730-47030	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
69770-47040	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
90148-50003	Screw Hex Lobular	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
90148-60022	BOLT	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
90148-C0006	New Genuine Part	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
90189-C0014	New Genuine Part	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
90541-04027	Cushion(For Front Door Inside Handle)	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
93568-55016	Screw	Rear Door Lock & Handle ([12.2011 - ] (1112- ))
