Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

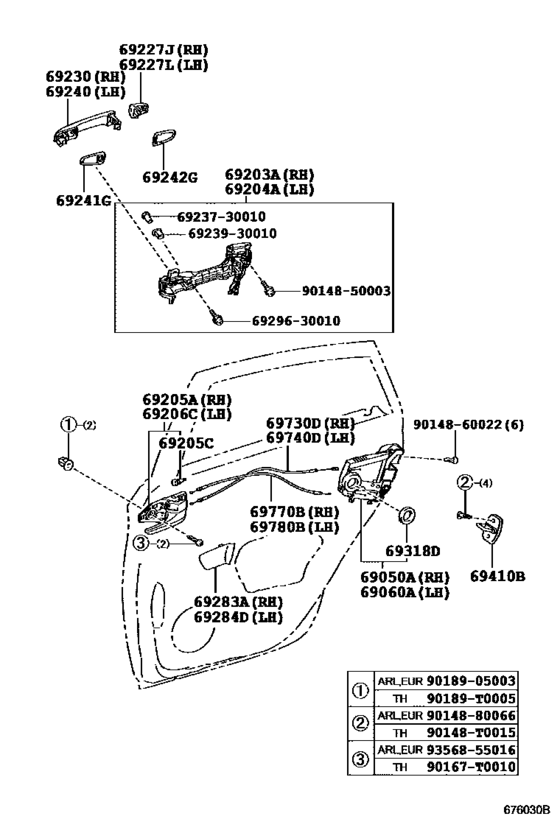

Rear Door Lock & Handle ([04.2009 - ] (0904- )) 47

#	OEM	Part name
69050	69050-0Q010	Lock Assy, Rear Door W/motor, Rh
69050	69050-47080	Lock Assy, Rear Door W/motor, Rh
69060	69060-0Q010	Lock Assy, Rear Door W/motor, Lh
69060	69060-47080	Lock Assy, Rear Door W/motor, Lh
69203	69203-47020	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-47020	Frame Sub-Assy, Rear Door Outside Handle, Lh
69205	69205-47040-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-47050-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04014	Cushion, Console Box
69205	90541-04027	Cushion(For Front Door Inside Handle)
69206	69206-47040-C0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-47050-C0	Handle Sub-Assy, Front Door Inside, Lh
69227	69227-47010-A1	Cover, Rear Door Outside Handle, Rh
69227	69227-47010-B8	Cover, Rear Door Outside Handle, Rh
69227	69227-47010-C1	Cover, Rear Door Outside Handle, Rh
69227	69227-47010-C2	Cover, Rear Door Outside Handle, Rh
69227	69227-47010-D0	Cover, Rear Door Outside Handle, Rh
69227	69227-47010-D2	Cover, Rear Door Outside Handle, Rh
69227	69227-47010-J4	Cover, Rear Door Outside Handle, Rh
69227	69227-47010-J5	Cover, Rear Door Outside Handle, Rh
69230	69211-74900	Handle Assy, Rear Door Outside, Rh
69241	69241-30110	Pad, Rear Door Outside Handle, Front
69241	69241-30111	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT
69242	69242-30090	Pad, Front Door Outside Handle, Rear
69242	69242-30091	Pad, Front Door Outside Handle, Rear
69242	69242-47020	Pad, Front Door Outside Handle, Rear
69283	69283-47010-B2	Plug, Front Door Inside Handle Bezel, Rh
69283	69283-47010-C0	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-47010-B2	Plug, Front Door Inside Handle Bezel, Lh
69284	69284-47010-C0	Plug, Front Door Inside Handle Bezel, Lh
69318	69318-47010	Seal, Front Door Lock Hole, Rh
69410	69410-0K010	Plate Assy, Front Door Lock Striker
69410	69410-33010	Plate Assy, Front Door Lock Striker
69730	69730-47030	Cable Assy, Rear Door Lock Remote Control, Rh
69770	69770-47040	Cable Assy, Rear Door Inside Locking, Rh
90148	90148-T0015	SCREWHEXALOBULAR
90167	90167-T0010	New Genuine Part
90189	90189-T0005	GROMMET SCREW
6923730010	69237-30010	Nut, Front Door Handle
6923930010	69239-30010	Bush(For Rear Door Outside Handle)
6929630010	69296-30010	Screw, Door Inside Handle
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880066	90148-80066	SCREW HEXALOBULAR
9018905003	90189-05003	CLIP
9356855016	93568-55016	Screw

OEM	Part name	Category
69050-0Q010	Lock Assy, Rear Door W/motor, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69050-47080	Lock Assy, Rear Door W/motor, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69060-0Q010	Lock Assy, Rear Door W/motor, Lh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69060-47080	Lock Assy, Rear Door W/motor, Lh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69203-47020	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69204-47020	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69205-47040-C0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69205-47050-C0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69206-47040-C0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69206-47050-C0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69211-74900	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69227-47010-A1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69227-47010-B8	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69227-47010-C1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69227-47010-C2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69227-47010-D0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69227-47010-D2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69227-47010-J4	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69227-47010-J5	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69237-30010	Nut, Front Door Handle	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69239-30010	Bush(For Rear Door Outside Handle)	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69241-30110	Pad, Rear Door Outside Handle, Front	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69241-30111	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69242-30090	Pad, Front Door Outside Handle, Rear	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69242-30091	Pad, Front Door Outside Handle, Rear	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69242-47020	Pad, Front Door Outside Handle, Rear	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69283-47010-B2	Plug, Front Door Inside Handle Bezel, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69283-47010-C0	Plug, Front Door Inside Handle Bezel, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69284-47010-B2	Plug, Front Door Inside Handle Bezel, Lh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69284-47010-C0	Plug, Front Door Inside Handle Bezel, Lh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69296-30010	Screw, Door Inside Handle	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69318-47010	Seal, Front Door Lock Hole, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69410-0K010	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69410-33010	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69730-47030	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
69770-47040	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
90148-50003	Screw Hex Lobular	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
90148-60022	BOLT	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
90148-80066	SCREW HEXALOBULAR	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
90148-T0015	SCREWHEXALOBULAR	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
90167-T0010	New Genuine Part	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
90189-05003	CLIP	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
90189-T0005	GROMMET SCREW	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
90541-04014	Cushion, Console Box	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
90541-04027	Cushion(For Front Door Inside Handle)	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
93568-55016	Screw	Rear Door Lock & Handle ([04.2009 - ] (0904- ))
