Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

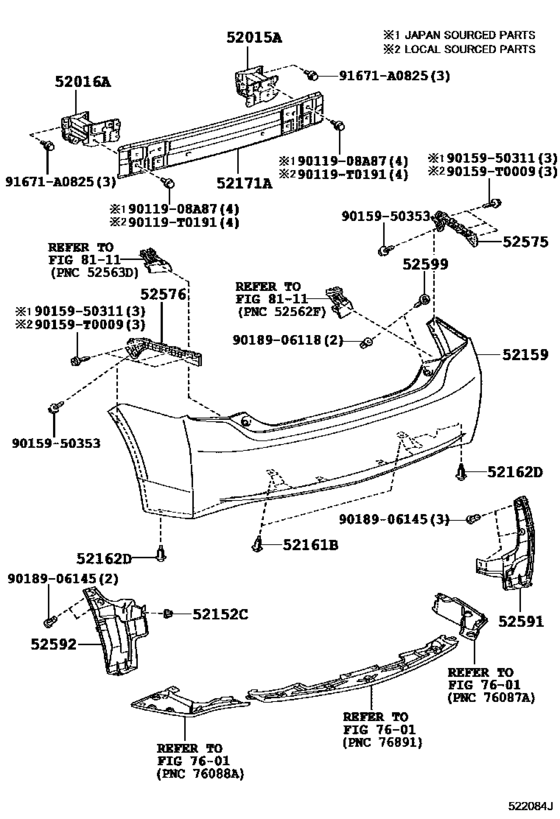

Rear Bumper & Bumper Stay ([04.2009 - ] (0904- )) 26

#	OEM	Part name
52015	52015-47050	Arm Sub-Assy, Rear Bumper, Rh
52016	52016-47030	Arm Sub-Assy, Rear Bumper, Lh
52152	90467-06121	Clip, Rear Bumper Side
52152	90467-06206-C0	Clip, Rear Bumper Side
52159	52159-47905	Cover, Rear Bumper
52159	52159-47916	Cover, Rear Bumper
52161	52161-0K040	Clip
52161	52161-02020	Clip
52161	52161-16010	Clip
52171	52023-12240	Reinforcement Sub-Assy, Rear Bumper - REAR BUMPER, NO.1
52575	52575-47020	Retainer, Rear Bumper Side, Rh
52575	52575-47021	Retainer, Rear Bumper Side, Rh
52576	52576-47020	Retainer, Rear Bumper Side, Lh
52576	52576-47021	Retainer, Rear Bumper Side, Lh
52591	52591-47021	Seal, Rear Bumper Side, Rh
52592	52592-47021	Seal, Rear Bumper Side, Lh
52599	52599-68030	Stopper, Rear Bumper, Upper
90119	90119-T0191	BOLT WWASHER
90159	90159-T0009	SCREWWWASHER TAP
91671	91671-A0825	BOLT FLANGE
9011908	90119-08A87	BOLT W-WASHER
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015950353	90159-50353	SCREW, W-WASHER
9018906118	90189-06118	Grommet(For Rear Bumper)
9018906145	90189-06145	GROMMET SCREW

OEM	Part name	Category
52015-47050	Arm Sub-Assy, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52016-47030	Arm Sub-Assy, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52023-12240	Reinforcement Sub-Assy, Rear Bumper - REAR BUMPER, NO.1	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52159-47905	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52159-47916	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52161-02020	Clip	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52161-0K040	Clip	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52161-16010	Clip	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52575-47020	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52575-47021	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52576-47020	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52576-47021	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52591-47021	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52592-47021	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
52599-68030	Stopper, Rear Bumper, Upper	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
90119-08A87	BOLT W-WASHER	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
90119-T0191	BOLT WWASHER	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
90159-50311	SCREW	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
90159-50353	SCREW, W-WASHER	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
90159-A0034	SCREW WWASHER	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
90159-T0009	SCREWWWASHER TAP	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
90189-06118	Grommet(For Rear Bumper)	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
90189-06145	GROMMET SCREW	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
90467-06121	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
90467-06206-C0	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
91671-A0825	BOLT FLANGE	Rear Bumper & Bumper Stay ([04.2009 - ] (0904- ))
