Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

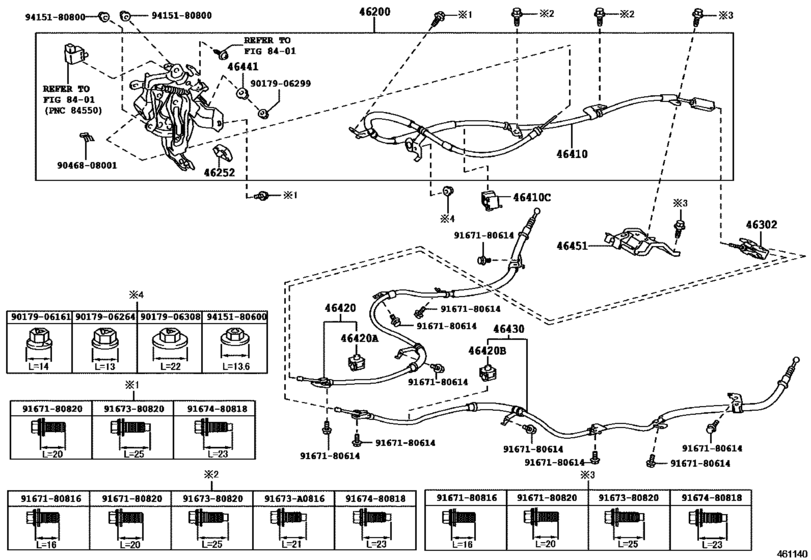

Parking Brake & Cable ([12.2011 - ] (1112- )) 23

#	OEM	Part name
46200	46200-47070	Pedal Assy, Parking Brake Control
46252	46252-47010	Pad, Parking Pedal
46302	46302-47020	Rod Sub-Assy, Parking Brake Pull, No.1
46410	46410-47070	Cable Assy, Parking Brake, No.1
46410	46411-47020	Clamp(For Parking Brake Front Cable)
46420	46420-47080	Cable Assy, Parking Brake, No.2
46420	46402-12030	Clamp, No.1(For Parking Brake Cable)
46430	46430-47080	Cable Assy, Parking Brake, No.3
46441	46441-12010	Nut, Wire Adjusting, No.1
46451	46451-47010	Bracket, Cable Support
91673	91673-A0816	BOLT FLANGE
9017906161	90179-06161	Bolt, Union(For Clutch Accumulator)
9017906264	90179-06264	NUT, WWASHER
9017906299	90179-06299	Nut, Wire Adjusting, No.1
9017906308	90179-06308	NUT
9046808001	90468-08001	CLIP
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9167380820	91673-80820	Bolt (For Transmission Control Cable Bracket)
9167480818	91674-80818	BOLT FLANGE
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
46200-47070	Pedal Assy, Parking Brake Control	Parking Brake & Cable ([12.2011 - ] (1112- ))
46252-47010	Pad, Parking Pedal	Parking Brake & Cable ([12.2011 - ] (1112- ))
46302-47020	Rod Sub-Assy, Parking Brake Pull, No.1	Parking Brake & Cable ([12.2011 - ] (1112- ))
46402-12030	Clamp, No.1(For Parking Brake Cable)	Parking Brake & Cable ([12.2011 - ] (1112- ))
46410-47070	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([12.2011 - ] (1112- ))
46411-47020	Clamp(For Parking Brake Front Cable)	Parking Brake & Cable ([12.2011 - ] (1112- ))
46420-47080	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([12.2011 - ] (1112- ))
46430-47080	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([12.2011 - ] (1112- ))
46441-12010	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([12.2011 - ] (1112- ))
46451-47010	Bracket, Cable Support	Parking Brake & Cable ([12.2011 - ] (1112- ))
90179-06161	Bolt, Union(For Clutch Accumulator)	Parking Brake & Cable ([12.2011 - ] (1112- ))
90179-06264	NUT, WWASHER	Parking Brake & Cable ([12.2011 - ] (1112- ))
90179-06299	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([12.2011 - ] (1112- ))
90179-06308	NUT	Parking Brake & Cable ([12.2011 - ] (1112- ))
90468-08001	CLIP	Parking Brake & Cable ([12.2011 - ] (1112- ))
91671-80614	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([12.2011 - ] (1112- ))
91671-80816	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([12.2011 - ] (1112- ))
91671-80820	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([12.2011 - ] (1112- ))
91673-80820	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([12.2011 - ] (1112- ))
91673-A0816	BOLT FLANGE	Parking Brake & Cable ([12.2011 - ] (1112- ))
91674-80818	BOLT FLANGE	Parking Brake & Cable ([12.2011 - ] (1112- ))
94151-80600	Nut, Cap(For Cylinder Head Cover)	Parking Brake & Cable ([12.2011 - ] (1112- ))
94151-80800	Nut (For Transmission Control Cable)	Parking Brake & Cable ([12.2011 - ] (1112- ))

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 338
Collected: 2026-08-02
