Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

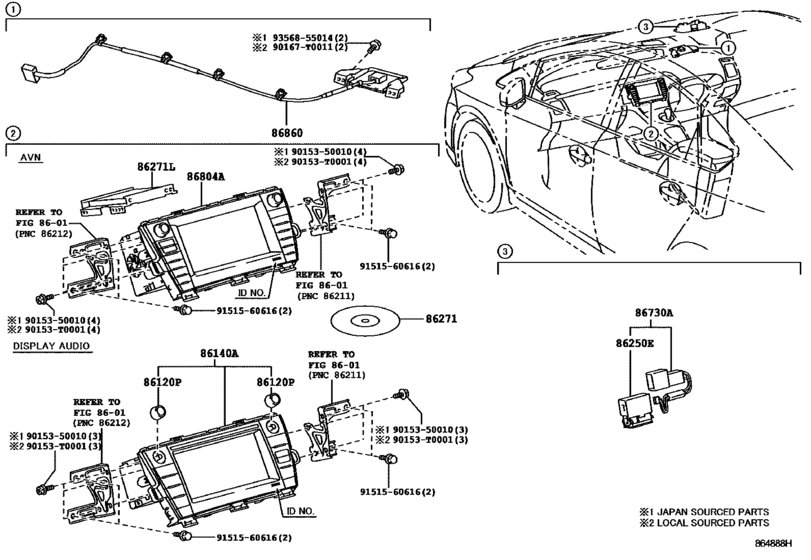

Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH) 21

#	OEM	Part name
86120	90011-25156	Knob, Radio Receiver Switch
86140	86140-0Q020	Receiver Assy, Radio & Display
86250	86250-52020	Microphone Assy, Amplifier
86271	86807-30150	Disc, Disc Player
86271	86807-30153	Disc, Disc Player
86271	86807-30151	Disc, Disc Player
86271	86807-30152	Disc, Disc Player
86271	86271-33210	Hard Disc
86271	86271-33214	Hard Disc
86271	86271-33211	Hard Disc
86271	86271-33212	Hard Disc
86271	86271-33213	Hard Disc
86730	86730-28040	Microphone Assy, Telephone
86730	86730-53030	Microphone Assy, Telephone
86804	86804-47140	Sub-Assy, Navigation Computer
86860	86860-47070	Antenna Assy, Navigation
90153	90153-T0001	BOLT
90167	90167-T0011	New Genuine Part
9015350010	90153-50010	BOLT
9151560616	91515-60616	BOLT FLANGE
9356855014	93568-55014	Screw

OEM	Part name	Category
86140-0Q020	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86250-52020	Microphone Assy, Amplifier	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86271-33210	Hard Disc	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86271-33211	Hard Disc	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86271-33212	Hard Disc	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86271-33213	Hard Disc	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86271-33214	Hard Disc	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86730-28040	Microphone Assy, Telephone	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86730-53030	Microphone Assy, Telephone	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86804-47140	Sub-Assy, Navigation Computer	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86807-30150	Disc, Disc Player	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86807-30151	Disc, Disc Player	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86807-30152	Disc, Disc Player	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86807-30153	Disc, Disc Player	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
86860-47070	Antenna Assy, Navigation	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
90011-25156	Knob, Radio Receiver Switch	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
90153-50010	BOLT	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
90153-T0001	BOLT	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
90167-T0011	New Genuine Part	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
91515-60616	BOLT FLANGE	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)
93568-55014	Screw	Navigation & Front Monitor Display ([04.2012 - ] (1204- )TH)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 338
Collected: 2026-08-02
