Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

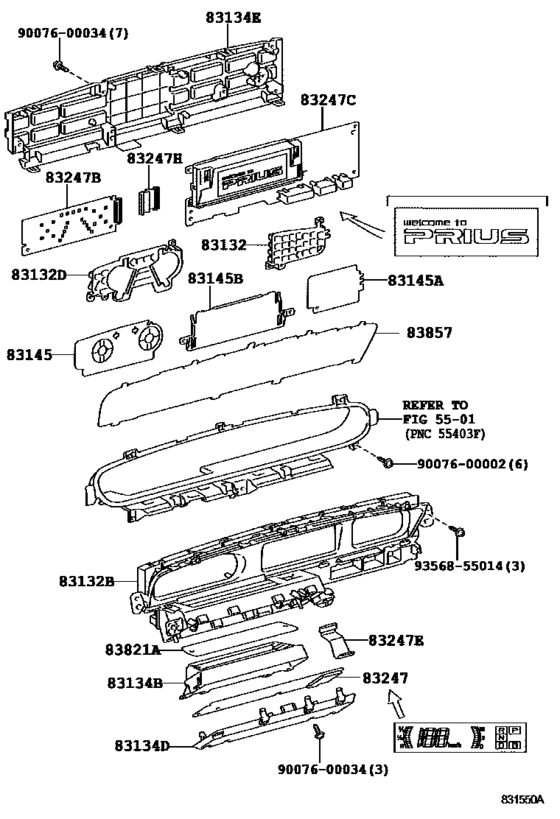

Meter ([12.2011 - ] (1112- )) 24

#	OEM	Part name
83132	83841-47360	Case, Combination Meter
83132	83843-47360	Case, Combination Meter No.3
83132	83842-47360	Case, Combination Meter, No.2
83132	83842-47890	Case, Combination Meter, No.2
83134	83822-47360	Cover, Combination Meter, No.2
83134	83821-47360	Cover, Combination Meter, No.3
83134	83823-47360	Cover, Combination Meter, No.3 - COMBINATION METER, NO.4
83145	83831-47460	Lens, Meter, No.1
83145	83831-47461	Lens, Meter, No.1
83145	83832-47460	Lens, Meter, No.2
83145	83833-47340	Lens, Meter, No.3
83247	83861-47380	Plate, Meter Circuit
83247	83861-47A20	Plate, Meter Circuit
83247	83861-47460	Plate, Meter Circuit, No.2
83247	83861-47461	Plate, Meter Circuit, No.2
83247	83862-47460	Plate, Mater Circuit, No.3
83247	83862-47461	Plate, Mater Circuit, No.3
83247	83864-47340	Plate, Mater Circuit, No.4
83247	83865-47340	Plate, Meter Circuit, No.5
83821	83821-47340	Cover, Combination Meter, No.1
83857	83857-47340	Reflector, Combination Meter, No.1
9007600002	90076-00002	SCREW TAPPING
9007600034	90076-00034	New Genuine Part
9356855014	93568-55014	Screw

OEM	Part name	Category
83821-47340	Cover, Combination Meter, No.1	Meter ([12.2011 - ] (1112- ))
83821-47360	Cover, Combination Meter, No.3	Meter ([12.2011 - ] (1112- ))
83822-47360	Cover, Combination Meter, No.2	Meter ([12.2011 - ] (1112- ))
83823-47360	Cover, Combination Meter, No.3 - COMBINATION METER, NO.4	Meter ([12.2011 - ] (1112- ))
83831-47460	Lens, Meter, No.1	Meter ([12.2011 - ] (1112- ))
83831-47461	Lens, Meter, No.1	Meter ([12.2011 - ] (1112- ))
83832-47460	Lens, Meter, No.2	Meter ([12.2011 - ] (1112- ))
83833-47340	Lens, Meter, No.3	Meter ([12.2011 - ] (1112- ))
83841-47360	Case, Combination Meter	Meter ([12.2011 - ] (1112- ))
83842-47360	Case, Combination Meter, No.2	Meter ([12.2011 - ] (1112- ))
83842-47890	Case, Combination Meter, No.2	Meter ([12.2011 - ] (1112- ))
83843-47360	Case, Combination Meter No.3	Meter ([12.2011 - ] (1112- ))
83857-47340	Reflector, Combination Meter, No.1	Meter ([12.2011 - ] (1112- ))
83861-47380	Plate, Meter Circuit	Meter ([12.2011 - ] (1112- ))
83861-47460	Plate, Meter Circuit, No.2	Meter ([12.2011 - ] (1112- ))
83861-47461	Plate, Meter Circuit, No.2	Meter ([12.2011 - ] (1112- ))
83861-47A20	Plate, Meter Circuit	Meter ([12.2011 - ] (1112- ))
83862-47460	Plate, Mater Circuit, No.3	Meter ([12.2011 - ] (1112- ))
83862-47461	Plate, Mater Circuit, No.3	Meter ([12.2011 - ] (1112- ))
83864-47340	Plate, Mater Circuit, No.4	Meter ([12.2011 - ] (1112- ))
83865-47340	Plate, Meter Circuit, No.5	Meter ([12.2011 - ] (1112- ))
90076-00002	SCREW TAPPING	Meter ([12.2011 - ] (1112- ))
90076-00034	New Genuine Part	Meter ([12.2011 - ] (1112- ))
93568-55014	Screw	Meter ([12.2011 - ] (1112- ))
