Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

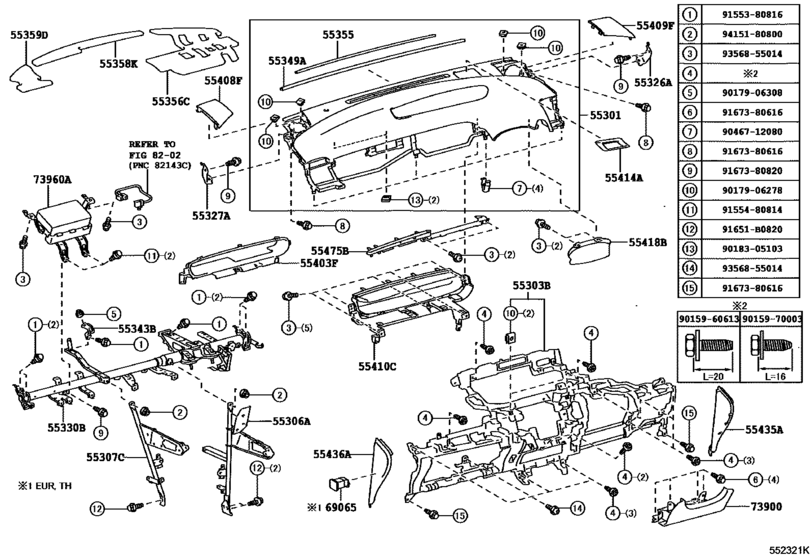

Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH) 52

#	OEM	Part name
55301	55300-47070-C0	Panel Sub-Assy, Instrument
55301	55300-47210-C0	Panel Sub-Assy, Instrument
55303	55303-47040-B0	Panel Sub-Assy, Instrument, Lower
55303	55303-47040-C0	Panel Sub-Assy, Instrument, Lower
55306	55306-47060	Brace Sub-Assy, Instrument Panel, No.1
55307	55307-47010	Brace Sub-Assy, Instrument Panel, No.2
55326	55326-47030	Stay, Instrument Panel, No.1
55327	55327-47030	Stay, Instrument Panel, No.2
55330	55330-47081	Reinforcement Assy, Instrument Panel
55330	55330-47082	Reinforcement Assy, Instrument Panel
55343	55343-47020	Brace, Instrument Panel To Cowl, Center
55349	55349-47070	Cushion, Instrument Panel
55355	55355-47040	Cushion, Instrument Panel, No.1
55355	55355-47080	Cushion, Instrument Panel, No.1
55356	55356-47030	Cushion, Instrument Panel, No.2
55356	55356-47070	Cushion, Instrument Panel, No.2
55358	55358-47050	Cushion, Instrument Panel, No.4
55359	55359-47020	Cushion, Instrument Panel, No.5
55359	55359-47030	Cushion, Instrument Panel, No.5
55403	55403-47030	Panel Sub-Assy, Instrument Panel Finish
55408	55472-47020-C0	Panel Sub-Assy, Instrument Panel Speaker, No.1
55409	55473-47010-C0	Panel Sub-Assy, Instrument Panel Speaker, No.2
55410	55410-47080	Panel Assy, Instrument Cluster Finish
55414	55414-47030-C0	Panel, Instrument Cluster Finish, End
55414	55414-47031-C0	Panel, Instrument Cluster Finish, End
55418	55418-47010	Spacer,meter Hood
55435	55435-47010-B0	Panel, Instrument Panel Finish, End Rh
55435	55435-47010-C0	Panel, Instrument Panel Finish, End Rh
55436	55436-47020-B0	Panel, Instrument Panel Finish, End Lh
55436	55436-47020-C0	Panel, Instrument Panel Finish, End Lh
55475	55475-47050	Garnish, Instrument Cluster Finish Panel, Center
55475	55475-47100	Garnish, Instrument Cluster Finish Panel, Center
69065	69065-12460	Cylinder Sub-Assy, Air Bag Cut Off Switch
69065	69065-47040	Cylinder Sub-Assy, Air Bag Cut Off Sw
69065	69065-52050	Cylinder Sub-Assy, Air Bag Cut Off Sw
73900	73900-47010-B0	Air Bag Assy, Instrument Panel, Lower No.1
73900	73900-47010-C0	Air Bag Assy, Instrument Panel, Lower No.1
73960	73960-47050	Air Bag Assy, Instrument Panel Passenger W/o Door
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9015960613	90159-60613	New Genuine Part
9015970003	90159-70003	Bolt, W/washer
9017906278	90179-06278	NUT
9017906308	90179-06308	NUT
9018305103	90183-05103	NUT
9046712080	90467-12080	Clip(For Panel, Instrument Cluster Finish)
9155380816	91553-80816	Bolt (For Transmission Control Cable Bracket)
9155480814	91554-80814	New Genuine Part
9167380616	91673-80616	Bolt, W/washer
9167380820	91673-80820	Bolt (For Transmission Control Cable Bracket)
9356855014	93568-55014	Screw
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
55300-47070-C0	Panel Sub-Assy, Instrument	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55300-47210-C0	Panel Sub-Assy, Instrument	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55303-47040-B0	Panel Sub-Assy, Instrument, Lower	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55303-47040-C0	Panel Sub-Assy, Instrument, Lower	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55306-47060	Brace Sub-Assy, Instrument Panel, No.1	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55307-47010	Brace Sub-Assy, Instrument Panel, No.2	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55326-47030	Stay, Instrument Panel, No.1	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55327-47030	Stay, Instrument Panel, No.2	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55330-47081	Reinforcement Assy, Instrument Panel	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55330-47082	Reinforcement Assy, Instrument Panel	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55343-47020	Brace, Instrument Panel To Cowl, Center	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55349-47070	Cushion, Instrument Panel	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55355-47040	Cushion, Instrument Panel, No.1	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55355-47080	Cushion, Instrument Panel, No.1	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55356-47030	Cushion, Instrument Panel, No.2	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55356-47070	Cushion, Instrument Panel, No.2	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55358-47050	Cushion, Instrument Panel, No.4	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55359-47020	Cushion, Instrument Panel, No.5	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55359-47030	Cushion, Instrument Panel, No.5	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55403-47030	Panel Sub-Assy, Instrument Panel Finish	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55410-47080	Panel Assy, Instrument Cluster Finish	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55414-47030-C0	Panel, Instrument Cluster Finish, End	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55414-47031-C0	Panel, Instrument Cluster Finish, End	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55418-47010	Spacer,meter Hood	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55435-47010-B0	Panel, Instrument Panel Finish, End Rh	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55435-47010-C0	Panel, Instrument Panel Finish, End Rh	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55436-47020-B0	Panel, Instrument Panel Finish, End Lh	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55436-47020-C0	Panel, Instrument Panel Finish, End Lh	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55472-47020-C0	Panel Sub-Assy, Instrument Panel Speaker, No.1	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55473-47010-C0	Panel Sub-Assy, Instrument Panel Speaker, No.2	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55475-47050	Garnish, Instrument Cluster Finish Panel, Center	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
55475-47100	Garnish, Instrument Cluster Finish Panel, Center	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
69065-12460	Cylinder Sub-Assy, Air Bag Cut Off Switch	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
69065-47040	Cylinder Sub-Assy, Air Bag Cut Off Sw	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
69065-52050	Cylinder Sub-Assy, Air Bag Cut Off Sw	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
73900-47010-B0	Air Bag Assy, Instrument Panel, Lower No.1	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
73900-47010-C0	Air Bag Assy, Instrument Panel, Lower No.1	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
73960-47050	Air Bag Assy, Instrument Panel Passenger W/o Door	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
90080-11347	New Genuine Part	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
90159-60613	New Genuine Part	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
90159-70003	Bolt, W/washer	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
90179-06278	NUT	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
90179-06308	NUT	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
90183-05103	NUT	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
90467-12080	Clip(For Panel, Instrument Cluster Finish)	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
91553-80816	Bolt (For Transmission Control Cable Bracket)	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
91554-80814	New Genuine Part	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
91651-B0820	Bolt, Radiator Side Support Plate	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
91673-80616	Bolt, W/washer	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
91673-80820	Bolt (For Transmission Control Cable Bracket)	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
93568-55014	Screw	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
94151-80800	Nut (For Transmission Control Cable)	Instrument Panel & Glove Compartment ([04.2009 - 12.2011] (0904-1112)RHD ; (1112- )TH)
