ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

← Back to categories

4,282 items

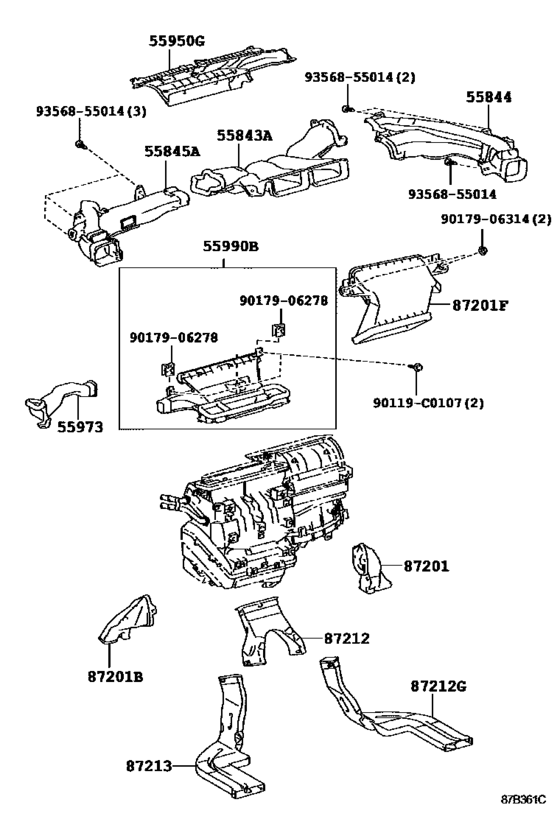

Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- )) 17

#	OEM	Part name
55843	55843-47060	Duct, Heater To Register, No.1
55844	55844-47060	Duct, Heater To Register, No.2
55845	55845-47040	Duct, Heater To Register, No.3
55950	55950-47040	Nozzle Assy, Defroster
55950	55950-47041	Nozzle Assy, Defroster
55973	55973-47020	Duct, Side Defroster Nozzle, No.3
55990	55990-47040	Nozzle Assy, Defroster, Lower
87201	87211-12350	Duct Sub-Assy, Air, No.1 - AIR, NO.2
87201	87211-12340	Duct Sub-Assy, Air, No.1 - AIR, NO.3
87201	87220-47020	Duct Sub-Assy, Air, No.3
87212	87215-02080	Duct, Air, Rear No.1 - AIR, REAR NO.2
87212	87212-02100	Duct, Air, Rear No.3
87213	87213-02100	Duct, Air, Rear No.1
90119	90119-C0107	New Genuine Part
9017906278	90179-06278	NUT
9017906314	90179-06314	NUT
9356855014	93568-55014	Screw

OEM	Part name	Category
55843-47060	Duct, Heater To Register, No.1	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
55844-47060	Duct, Heater To Register, No.2	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
55845-47040	Duct, Heater To Register, No.3	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
55950-47040	Nozzle Assy, Defroster	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
55950-47041	Nozzle Assy, Defroster	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
55973-47020	Duct, Side Defroster Nozzle, No.3	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
55990-47040	Nozzle Assy, Defroster, Lower	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
87211-12340	Duct Sub-Assy, Air, No.1 - AIR, NO.3	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
87211-12350	Duct Sub-Assy, Air, No.1 - AIR, NO.2	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
87212-02100	Duct, Air, Rear No.3	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
87213-02100	Duct, Air, Rear No.1	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
87215-02080	Duct, Air, Rear No.1 - AIR, REAR NO.2	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
87220-47020	Duct Sub-Assy, Air, No.3	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
90119-C0107	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
90179-06278	NUT	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
90179-06314	NUT	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
93568-55014	Screw	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] AIR DUCT (1112- ))
