ZVW30

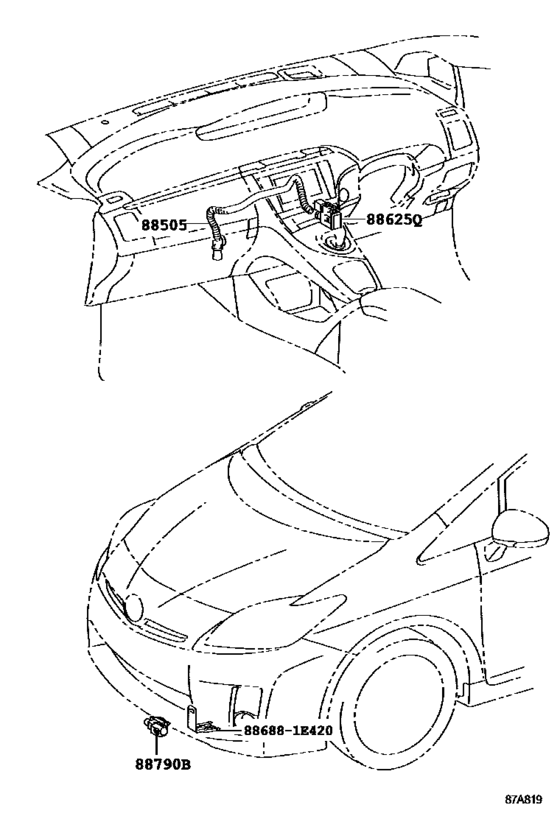

Heating & Air Conditioning - Control & Air Duct ([04.2009 - ] SENSOER (0904- )RHD) 5
| # | OEM | Part name |
|---|---|---|
| 0 | 88688-1E420 | Bracket, Cooler Diaphragm |
| 88505 | 88505-0Q010 | Duct Sub-Assy,air Conditioner |
| 88505 | 88505-47010 | Duct Sub-Assy,air Conditioner |
| 88625 | 88625-47021 | Thermistor, Cooler No.3 |
| 88790 | 88790-22131 | Thermistor, Cooler |
| OEM | Part name | Category |
|---|---|---|
| 88505-0Q010 | Duct Sub-Assy,air Conditioner | Heating & Air Conditioning - Control & Air Duct ([04.2009 - ] SENSOER (0904- )RHD) |
| 88505-47010 | Duct Sub-Assy,air Conditioner | Heating & Air Conditioning - Control & Air Duct ([04.2009 - ] SENSOER (0904- )RHD) |
| 88625-47021 | Thermistor, Cooler No.3 | Heating & Air Conditioning - Control & Air Duct ([04.2009 - ] SENSOER (0904- )RHD) |
| 88688-1E420 | Bracket, Cooler Diaphragm | Heating & Air Conditioning - Control & Air Duct ([04.2009 - ] SENSOER (0904- )RHD) |
| 88790-22131 | Thermistor, Cooler | Heating & Air Conditioning - Control & Air Duct ([04.2009 - ] SENSOER (0904- )RHD) |
