Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

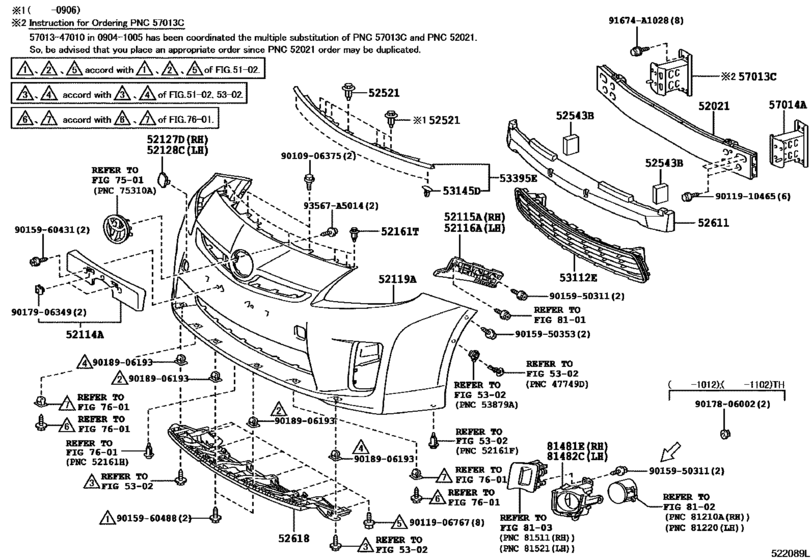

Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH) 53

#	OEM	Part name
52021	52021-47023	Reinforcement Sub-Assy, Front Bumper
52114	52114-47080	Bracket, Front Bumper Extention Mounting
52114	52114-47140	Bracket, Front Bumper Extention Mounting
52115	52115-47020	Support, Front Bumper Side, Rh
52115	52115-47041	Support, Front Bumper Side, Rh
52115	52115-47040	Support, Front Bumper Side, Rh
52116	52116-47020	Support, Front Bumper Side, Lh
52116	52116-47041	Support, Front Bumper Side, Lh
52116	52116-47040	Support, Front Bumper Side, Lh
52119	52119-47913	Cover, Front Bumper
52119	52119-47915	Cover, Front Bumper
52119	52119-47930	Cover, Front Bumper
52119	52119-47966	Cover, Front Bumper
52119	52119-47933	Cover, Front Bumper
52119	52119-47968	Cover, Front Bumper
52127	52127-47900	Cover, Front Bumper Hole, Rh
52127	52127-47903	Cover, Front Bumper Hole, Rh
52127	52127-47908	Cover, Front Bumper Hole, Rh
52128	52128-47900	Cover, Front Bumper Hole, Lh
52128	52128-47903	Cover, Front Bumper Hole, Lh
52128	52128-47907	Cover, Front Bumper Hole, Lh
52161	52161-0K040	Clip
52161	52161-02020	Clip
52161	52161-16010	Clip
52521	90467-05063-C0	Clip
52543	52543-47020	Seal, Front Bumper
52543	52543-47050	Seal, Front Bumper
52611	52611-47040	Absorber, Front Bumper Energy
52611	52611-47080	Absorber, Front Bumper Energy
52618	52618-47010	Absorber, Front Bumper, Lower - ENGINE UNDER
52618	52618-47050	Absorber, Front Bumper, Lower
53112	53102-47020	Grille, Radiator, Lower No.1
53112	53112-47040	Grille, Radiator, Lower No.1
53145	53145-60030	Clip(For Front Bumper), No.1
53395	53395-0Q010	Seal, Hood To Front End Panel
53395	53395-47020	Seal, Hood To Front End Panel
57013	57013-47030	Bracket Sub-Assy, Front Side Member, Rh
57014	57014-47030	Bracket Sub-Assy, Front Side Member, Lh
81481	81481-47020	Cover, Fog Lamp, Rh
81482	81482-47020	Cover, Fog Lamp, Lh
91674	91674-A1028	BOLT FLANGE
93567	93567-A5014	SCREW TAPPING
9010906375	90109-06375	BOLT
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9011910465	90119-10465	WASHER
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015950353	90159-50353	SCREW, W-WASHER
9015960431	90159-60431	SCREW
9015960488	90159-60488	SCREW WWASHER
9017806002	90178-06002	NUT FLANGE
9017906349	90179-06349	NUT
9018906193	90189-06193	Grommet(For Engine Under Cover)

OEM	Part name	Category
52021-47023	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52114-47080	Bracket, Front Bumper Extention Mounting	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52114-47140	Bracket, Front Bumper Extention Mounting	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52115-47020	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52115-47040	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52115-47041	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52116-47020	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52116-47040	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52116-47041	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52119-47913	Cover, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52119-47915	Cover, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52119-47930	Cover, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52119-47933	Cover, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52119-47966	Cover, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52119-47968	Cover, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52127-47900	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52127-47903	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52127-47908	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52128-47900	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52128-47903	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52128-47907	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52161-02020	Clip	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52161-0K040	Clip	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52161-16010	Clip	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52543-47020	Seal, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52543-47050	Seal, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52611-47040	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52611-47080	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52618-47010	Absorber, Front Bumper, Lower - ENGINE UNDER	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
52618-47050	Absorber, Front Bumper, Lower	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
53102-47020	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
53112-47040	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
53145-60030	Clip(For Front Bumper), No.1	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
53395-0Q010	Seal, Hood To Front End Panel	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
53395-47020	Seal, Hood To Front End Panel	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
57013-47030	Bracket Sub-Assy, Front Side Member, Rh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
57014-47030	Bracket Sub-Assy, Front Side Member, Lh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
81481-47020	Cover, Fog Lamp, Rh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
81482-47020	Cover, Fog Lamp, Lh	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90109-06375	BOLT	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90119-06767	Bolt, W/washer(For Engine Under Cover)	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90119-10465	WASHER	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90159-50311	SCREW	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90159-50353	SCREW, W-WASHER	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90159-60431	SCREW	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90159-60488	SCREW WWASHER	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90159-A0034	SCREW WWASHER	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90178-06002	NUT FLANGE	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90179-06349	NUT	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90189-06193	Grommet(For Engine Under Cover)	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
90467-05063-C0	Clip	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
91674-A1028	BOLT FLANGE	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
93567-A5014	SCREW TAPPING	Front Bumper & Bumper Stay ([12.2010 - 04.2012] (0904-1112)ARL,EUR ; (1012-1204)TH)
