Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

← Back to categories

4,282 items

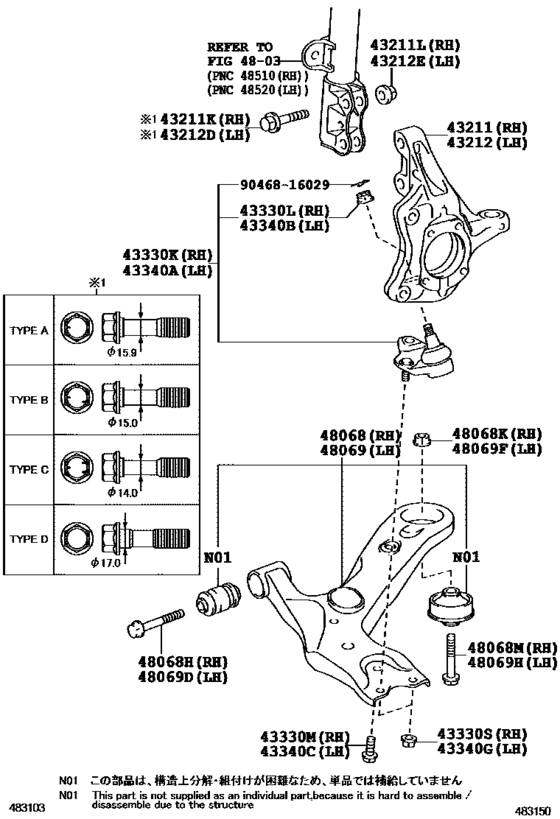

Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- )) 18

#	OEM	Part name
43211	43201-47030	Knuckle, Steering, Rh
43211	90105-17016	Bolt (For Steering Knuckle Rh)
43211	90105-17017	Bolt (For Steering Knuckle Rh)
43211	90105-17018	Bolt (For Steering Knuckle Rh)
43211	90105-17019	Bolt (For Steering Knuckle Rh)
43211	90178-17003	Nut (For Steering Knuckle)
43212	43202-47030	Knuckle, Steering, Lh
43330	43330-49185	Joint Assy, Lower Ball, Front
43330	90171-14013	Nut, Castle (For Front Lower Ball Joint Rh)
43330	90105-C0059	Bolt (For Front Lower Ball Joint Rh)
43330	90178-12019	Nut (For Front Lower Ball Joint Setting)
43330	90178-C0062	Nut (For Front Lower Ball Joint Rh)
48068	48068-47050	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90105-C0066	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	91554-L1690	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	90178-16006	Nut(For Front Suspension Lower Arm No.2 Rh)
48069	48069-47050	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
9046816029	90468-16029	CLIP

OEM	Part name	Category
43201-47030	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
43202-47030	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
43330-49185	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
48068-47050	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
48069-47050	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90105-17016	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90105-17017	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90105-17018	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90105-17019	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90105-C0059	Bolt (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90105-C0066	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90171-14013	Nut, Castle (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90178-12019	Nut (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90178-16006	Nut(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90178-17003	Nut (For Steering Knuckle)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90178-C0062	Nut (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90468-16029	CLIP	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
91554-L1690	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
