ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

← Back to categories

4,282 items

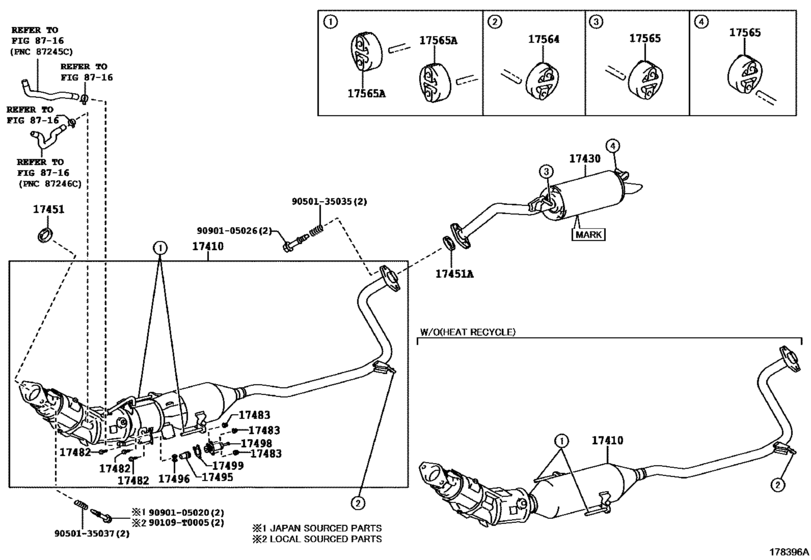

Exhaust Pipe ([04.2009 - ] (0904- )) 16

#	OEM	Part name
17410	17410-37160	Pipe Assy, Exhaust, Front
17430	17430-37380	Pipe Assy, Exhaust, Tail
17451	17451-28040	Gasket, Exhaust Pipe
17451	17451-28041	Gasket, Exhaust Pipe
17451	17451-0M032	Gasket, Exhaust Pipe
17451	17451-23042	Gasket, Exhaust Pipe, Center
17564	17565-0P100	Support,exhaust Pipe, No.4 - EXHAUST PIPE, NO.5
17564	17565-22030	Support, Exhaust Pipe, No.1
17565	17565-0P110	Support, Exhaust Pipe, No.5
17565	17565-22040	Support, Exhaust Pipe, No.1
17565	17565-28010	Support, Exhaust Pipe, No.1
90109	90109-T0005	BOLT
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026	90901-05026	Bolt, Exhaust Pipe Support

OEM	Part name	Category
17410-37160	Pipe Assy, Exhaust, Front	Exhaust Pipe ([04.2009 - ] (0904- ))
17430-37380	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([04.2009 - ] (0904- ))
17451-0M032	Gasket, Exhaust Pipe	Exhaust Pipe ([04.2009 - ] (0904- ))
17451-23042	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([04.2009 - ] (0904- ))
17451-28040	Gasket, Exhaust Pipe	Exhaust Pipe ([04.2009 - ] (0904- ))
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([04.2009 - ] (0904- ))
17565-0P100	Support,exhaust Pipe, No.4 - EXHAUST PIPE, NO.5	Exhaust Pipe ([04.2009 - ] (0904- ))
17565-0P110	Support, Exhaust Pipe, No.5	Exhaust Pipe ([04.2009 - ] (0904- ))
17565-22030	Support, Exhaust Pipe, No.1	Exhaust Pipe ([04.2009 - ] (0904- ))
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([04.2009 - ] (0904- ))
17565-28010	Support, Exhaust Pipe, No.1	Exhaust Pipe ([04.2009 - ] (0904- ))
90109-T0005	BOLT	Exhaust Pipe ([04.2009 - ] (0904- ))
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([04.2009 - ] (0904- ))
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([04.2009 - ] (0904- ))
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([04.2009 - ] (0904- ))
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([04.2009 - ] (0904- ))

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 338
Collected: 2026-08-02
