Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

← Back to categories

4,282 items

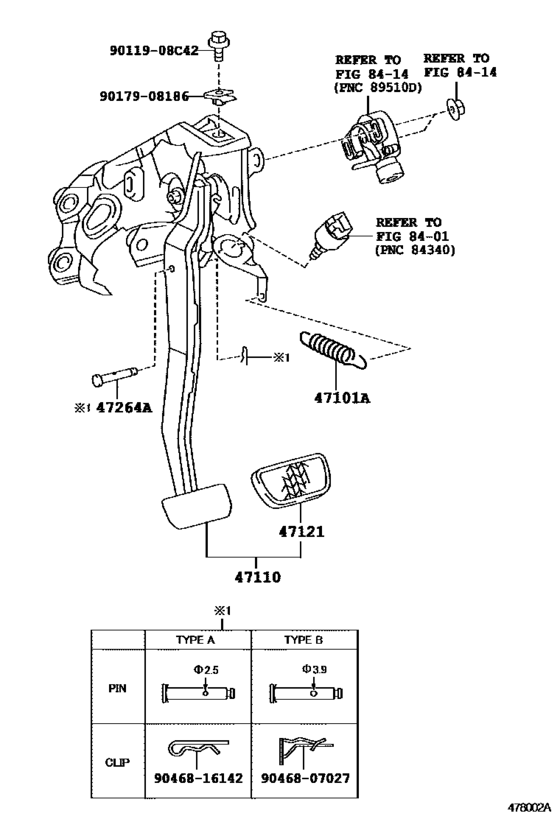

Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH) 10

#	OEM	Part name
47101	90507-14050	Spring(For Clutch Pedal)
47110	47110-76050	Support Assy, Brake Pedal
47121	47121-42010	Pad, Brake Pedal
47121	47121-50020	Pad, Brake Pedal
47264	47148-47020	Pin(For Push Rod)
47264	47148-47030	Pin(For Push Rod)
9011908	90119-08C42	New Genuine Part
9017908186	90179-08186	New Genuine Part
9046807027	90468-07027	Clip(For Push Rod Clevis Pin)
9046816142	90468-16142	Clip(For Push Rod Clevis Pin)

OEM	Part name	Category
47110-76050	Support Assy, Brake Pedal	Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH)
47121-42010	Pad, Brake Pedal	Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH)
47121-50020	Pad, Brake Pedal	Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH)
47148-47020	Pin(For Push Rod)	Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH)
47148-47030	Pin(For Push Rod)	Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH)
90119-08C42	New Genuine Part	Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH)
90179-08186	New Genuine Part	Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH)
90468-07027	Clip(For Push Rod Clevis Pin)	Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH)
90468-16142	Clip(For Push Rod Clevis Pin)	Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH)
90507-14050	Spring(For Clutch Pedal)	Brake Pedal & Bracket ([04.2012 - ] (1112- )RHD..ARL,EUR ; (1204- )TH)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 338
Collected: 2026-08-02
