Search › Model › ZVW30
ZVW30

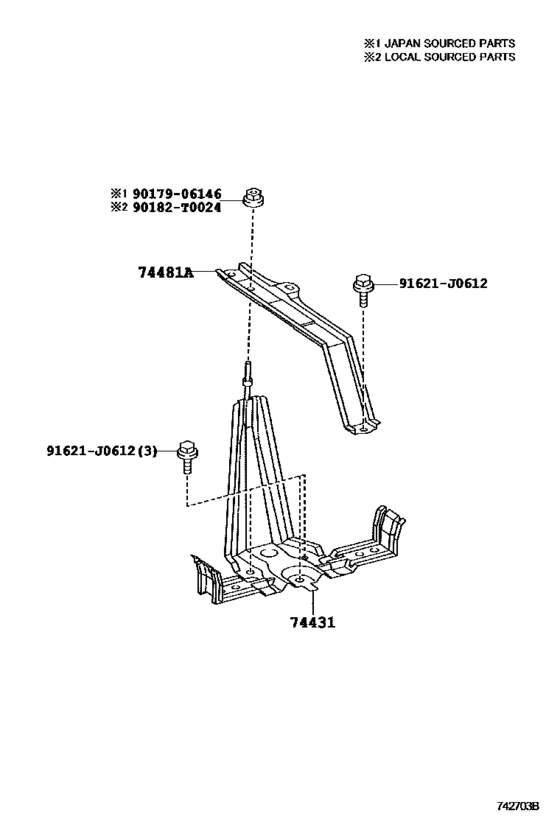

Battery Carrier ([04.2009 - ] (0904- )) 5
| # | OEM | Part name |
|---|---|---|
| 74431 | 74440-47030 | Tray, Battery |
| 74481 | 74481-47050 | Clamp, Battery |
| 90182 | 90182-T0024 | New Genuine Part |
| 91621 | 91621-J0612 | BOLT W-WASHER |
| 9017906146 | 90179-06146 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74440-47030 | Tray, Battery | Battery Carrier ([04.2009 - ] (0904- )) |
| 74481-47050 | Clamp, Battery | Battery Carrier ([04.2009 - ] (0904- )) |
| 90179-06146 | Nut | Battery Carrier ([04.2009 - ] (0904- )) |
| 90182-T0024 | New Genuine Part | Battery Carrier ([04.2009 - ] (0904- )) |
| 91621-J0612 | BOLT W-WASHER | Battery Carrier ([04.2009 - ] (0904- )) |
