Search › Model › ZVW30

ZVW30

Toyota PRIUS · 2009 · 4,282 parts · 338 categories

4,282 items

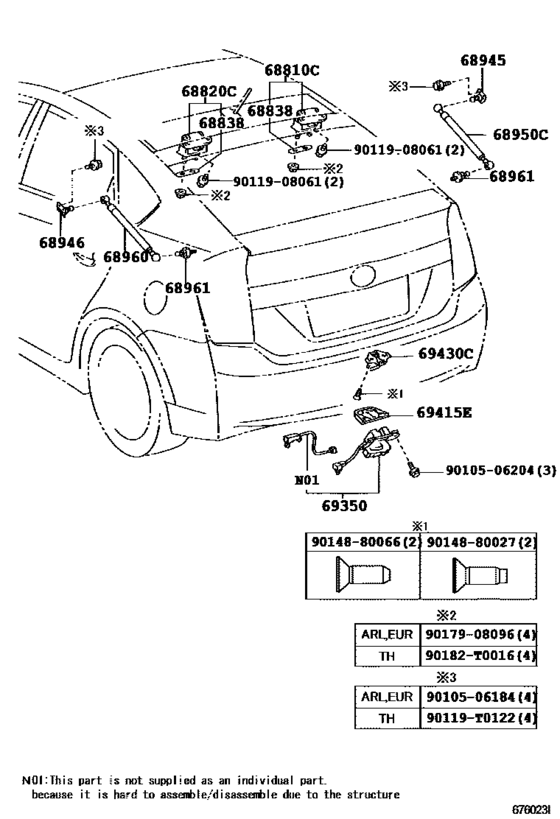

Back Door Lock & Handle ([04.2009 - ] (0904- )) 26

#	OEM	Part name
68810	68810-47010	Hinge Assy, Back Door, Rh
68810	68810-47011	Hinge Assy, Back Door, Rh
68838	68838-32010	Pad, Back Door Hinge, No.1
68838	68838-44020	Pad, Back Door Hinge, No.1
68838	68838-52020	Pad, Back Door Hinge, No.1
68945	68945-47010	Bracket, Back Door Damper Stay, Upper Rh
68950	68950-0W541	Stay Assy, Back Door, Rh
68950	68950-0W542	Stay Assy, Back Door, Rh
68960	68960-0W531	Stay Assy, Back Door, Lh
68960	68960-0W532	Stay Assy, Back Door, Lh
68961	68961-20140	Bolt, Back Door Stay
69350	69350-47020	Lock Assy, Back Door
69350	69350-47041	Lock Assy, Back Door
69350	69350-47030	Lock Assy, Back Door
69350	69350-47031	Lock Assy, Back Door
69415	69415-47020	Cover, Back Door Lock Striker
69430	69431-47010	Striker Assy, Back Door Lock
90119	90119-T0122	New Genuine Part
90182	90182-T0016	NUT WWASHER
9010506184	90105-06184	BOLT WASHER BASED
9010506204	90105-06204	New Genuine Part
9011908061	90119-08061	BOLT
9014880027	90148-80027	Screw Hex Lobular
9014880066	90148-80066	SCREW HEXALOBULAR
9017908096	90179-08096	NUT
9017908096	90080-18061	New Genuine Part

OEM	Part name	Category
68810-47010	Hinge Assy, Back Door, Rh	Back Door Lock & Handle ([04.2009 - ] (0904- ))
68810-47011	Hinge Assy, Back Door, Rh	Back Door Lock & Handle ([04.2009 - ] (0904- ))
68838-32010	Pad, Back Door Hinge, No.1	Back Door Lock & Handle ([04.2009 - ] (0904- ))
68838-44020	Pad, Back Door Hinge, No.1	Back Door Lock & Handle ([04.2009 - ] (0904- ))
68838-52020	Pad, Back Door Hinge, No.1	Back Door Lock & Handle ([04.2009 - ] (0904- ))
68945-47010	Bracket, Back Door Damper Stay, Upper Rh	Back Door Lock & Handle ([04.2009 - ] (0904- ))
68950-0W541	Stay Assy, Back Door, Rh	Back Door Lock & Handle ([04.2009 - ] (0904- ))
68950-0W542	Stay Assy, Back Door, Rh	Back Door Lock & Handle ([04.2009 - ] (0904- ))
68960-0W531	Stay Assy, Back Door, Lh	Back Door Lock & Handle ([04.2009 - ] (0904- ))
68960-0W532	Stay Assy, Back Door, Lh	Back Door Lock & Handle ([04.2009 - ] (0904- ))
68961-20140	Bolt, Back Door Stay	Back Door Lock & Handle ([04.2009 - ] (0904- ))
69350-47020	Lock Assy, Back Door	Back Door Lock & Handle ([04.2009 - ] (0904- ))
69350-47030	Lock Assy, Back Door	Back Door Lock & Handle ([04.2009 - ] (0904- ))
69350-47031	Lock Assy, Back Door	Back Door Lock & Handle ([04.2009 - ] (0904- ))
69350-47041	Lock Assy, Back Door	Back Door Lock & Handle ([04.2009 - ] (0904- ))
69415-47020	Cover, Back Door Lock Striker	Back Door Lock & Handle ([04.2009 - ] (0904- ))
69431-47010	Striker Assy, Back Door Lock	Back Door Lock & Handle ([04.2009 - ] (0904- ))
90080-18061	New Genuine Part	Back Door Lock & Handle ([04.2009 - ] (0904- ))
90105-06184	BOLT WASHER BASED	Back Door Lock & Handle ([04.2009 - ] (0904- ))
90105-06204	New Genuine Part	Back Door Lock & Handle ([04.2009 - ] (0904- ))
90119-08061	BOLT	Back Door Lock & Handle ([04.2009 - ] (0904- ))
90119-T0122	New Genuine Part	Back Door Lock & Handle ([04.2009 - ] (0904- ))
90148-80027	Screw Hex Lobular	Back Door Lock & Handle ([04.2009 - ] (0904- ))
90148-80066	SCREW HEXALOBULAR	Back Door Lock & Handle ([04.2009 - ] (0904- ))
90179-08096	NUT	Back Door Lock & Handle ([04.2009 - ] (0904- ))
90182-T0016	NUT WWASHER	Back Door Lock & Handle ([04.2009 - ] (0904- ))
