Search › Model › ZVW30
ZVW30

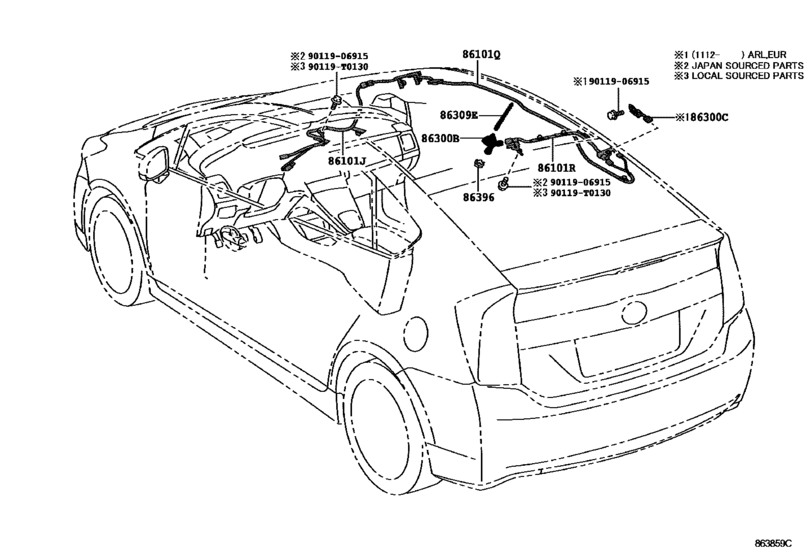

Antenna ([04.2009 - ] (0904- )) 13
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-47250 | Cord Sub-Assy, Antenna, No.2 |
| 86101 | 86101-47370 | Cord Sub-Assy, Antenna, No.2 |
| 86101 | 86101-47200 | Cord Sub-Assy, Antenna, No.4 |
| 86101 | 86101-47850 | Cord Sub-Assy, Antenna, No.2 |
| 86101 | 86101-47320 | Cord Sub-Assy, Antenna, No.5 |
| 86101 | 86101-47860 | Cord Sub-Assy, Antenna, No.3 |
| 86300 | 86300-47060 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-47061 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-47120 | Antenna Assy, Amplifier, No.1 |
| 86309 | 86309-47020 | Pole Sub-Assy, Roof Antenna |
| 86396 | 86396-47010 | Nut, Antenna |
| 90119 | 90119-T0130 | New Genuine Part |
| 90119 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 86101-47200 | Cord Sub-Assy, Antenna, No.4 | Antenna ([04.2009 - ] (0904- )) |
| 86101-47250 | Cord Sub-Assy, Antenna, No.2 | Antenna ([04.2009 - ] (0904- )) |
| 86101-47320 | Cord Sub-Assy, Antenna, No.5 | Antenna ([04.2009 - ] (0904- )) |
| 86101-47370 | Cord Sub-Assy, Antenna, No.2 | Antenna ([04.2009 - ] (0904- )) |
| 86101-47850 | Cord Sub-Assy, Antenna, No.2 | Antenna ([04.2009 - ] (0904- )) |
| 86101-47860 | Cord Sub-Assy, Antenna, No.3 | Antenna ([04.2009 - ] (0904- )) |
| 86300-47060 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2009 - ] (0904- )) |
| 86300-47061 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2009 - ] (0904- )) |
| 86300-47120 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2009 - ] (0904- )) |
| 86309-47020 | Pole Sub-Assy, Roof Antenna | Antenna ([04.2009 - ] (0904- )) |
| 86396-47010 | Nut, Antenna | Antenna ([04.2009 - ] (0904- )) |
| 90119-06915 | BOLT W-WASHER | Antenna ([04.2009 - ] (0904- )) |
| 90119-T0130 | New Genuine Part | Antenna ([04.2009 - ] (0904- )) |
