Search › Model › ZSU65

ZSU65

Toyota HARRIER · 2013 · 3,692 parts · 200 categories

3,692 items

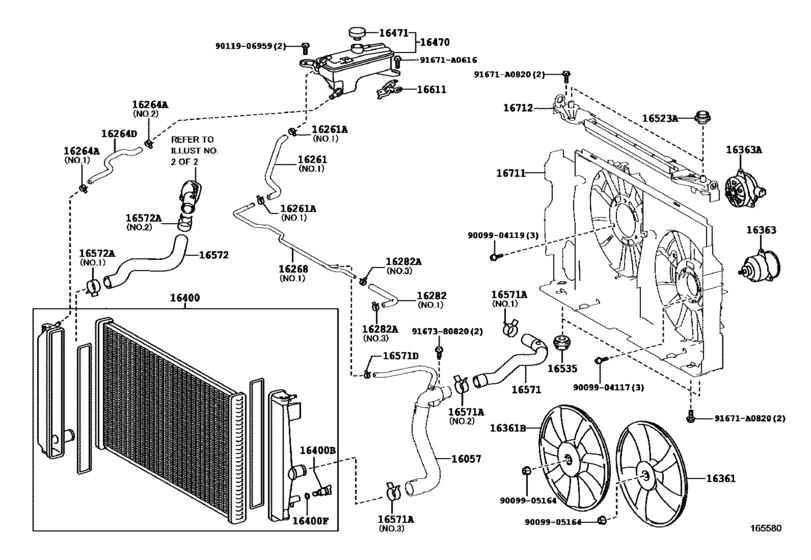

Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE) 70

#	OEM	Part name
12512	12512-37010	Bracket, Alternator, No.2
16057	16057-37021	Hose Sub-Assy, Radiator
16258	16258-28040	Gasket(For Oil Cooler Pipe Union Bolt)
16261	16261-36050	Hose, Water By-Pass
16261	16261-37022	Hose, Water By-Pass
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16261	96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16262	16262-37010	Hose, Water Inlet
16262	96136-42501	Clip(For Ventilation Hose)
16264	96136-41901	Clip Or Clamp(For Ventilation Hose)
16264	16264-36040	Hose, Water By-Pass, No.2
16264	16264-37022	Hose, Water By-Pass, No.2
16267	16267-37020	Hose, Water By-Pass, No.3
16267	96136-52701	Clamp Or Clip(For Water By-Pass Hose No.3)
16267	16267-37080	Hose, Water By-Pass, No.4
16268	16268-36070	Pipe, Water By-Pass, No.1
16268	16268-37041	Pipe, Water By-Pass, No.1
16268	16268-37080	Pipe, Water By-Pass, No.1
16279	16279-37010	Pipe, Water By-Pass, No.3
16282	16282-36030	Hose, Water By-Pass, No.5
16282	16282-37080	Hose, Water By-Pass, No.5
16282	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
16321	16321-37010	Inlet, Water
16323	16323-37040	Housing, Water Inlet
16325	16325-28010	Gasket, Water Inlet Housing, No.1
16326	16326-37030	Gasket, Water Inlet Housing, No.2
16331	90916-03148	Thermostat
16361	16361-28200	Fan
16361	16361-28210	Fan, No.2
16363	16363-28020	Motor, Cooling Fan
16363	16363-28240	Motor, Cooling Fan, No.2
16400	16400-28560	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	16470-28111	Tank Assy, Radiator Reserve
16470	16470-28113	Tank Assy, Radiator Reserve
16470	16470-28112	Tank Assy, Radiator Reserve
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-37010	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-37011	Cap Sub-Assy, Radiator Reserve Tank
16523	16523-21060	Cushion, Radiator Support
16535	16535-20030	Support, Radiator, Lower
16571	16571-37130	Hose, Radiator, Inlet
16571	96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-44801	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)
16572	16572-37160	Hose, Radiator, Outlet
16581	16581-37010	Clamp, Hose(For Water Hose)
16581	16581-37100	Clamp, Hose(For Water Hose)
16611	16611-28030	Bracket, Radiator Reserve Tank
16611	16611-36010	Bracket, Radiator Reserve Tank
16711	16711-37100	Shroud, Fan
16712	16712-36030	Shroud, Fan, No.2
91553	91553-F0830	New Genuine Part
91671	91671-A0616	BOLT FLANGE
91671	91671-A0820	New Genuine Part
9011908	90119-08A53	BOLT WWASHER
1657537040	16575-37040	Bracket, Water Hose Clamp, No.1
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9011906959	90119-06959	New Genuine Part
9012606026	90126-06026	Bolt, Stud(Manifold To Throttle Body)
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9167180612	91671-80612	Bolt
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9167380820	91673-80820	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
12512-37010	Bracket, Alternator, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16057-37021	Hose Sub-Assy, Radiator	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16258-28040	Gasket(For Oil Cooler Pipe Union Bolt)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16261-36050	Hose, Water By-Pass	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16261-37022	Hose, Water By-Pass	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16262-37010	Hose, Water Inlet	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16264-36040	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16264-37022	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16267-37020	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16267-37080	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16268-36070	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16268-37041	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16268-37080	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16279-37010	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16282-36030	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16282-37080	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16321-37010	Inlet, Water	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16323-37040	Housing, Water Inlet	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16325-28010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16326-37030	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16361-28200	Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16361-28210	Fan, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16363-28020	Motor, Cooling Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16363-28240	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16400-28560	Radiator Assy	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16470-28111	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16470-28112	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16470-28113	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16475-37010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16475-37011	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16523-21060	Cushion, Radiator Support	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16535-20030	Support, Radiator, Lower	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16571-37130	Hose, Radiator, Inlet	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16572-37160	Hose, Radiator, Outlet	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16575-37040	Bracket, Water Hose Clamp, No.1	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16581-37010	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16581-37100	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16611-28030	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16611-36010	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16711-37100	Shroud, Fan	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
16712-36030	Shroud, Fan, No.2	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
90099-05164	Nut	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
90116-06127	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
90119-06959	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
90119-08A53	BOLT WWASHER	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
90126-06026	Bolt, Stud(Manifold To Throttle Body)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
90916-03148	Thermostat	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
91551-80625	Bolt(For Camshaft Housing Set)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
91553-F0830	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
91671-80612	Bolt	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
91671-A0616	BOLT FLANGE	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
91671-A0820	New Genuine Part	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
91673-80820	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
96136-41901	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
96136-44801	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
96136-52701	Clamp Or Clip(For Water By-Pass Hose No.3)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.2013 - ] (1312- )3ZRFAE)
