Search › Model › ZSU60

ZSU60

Toyota HARRIER · 2013 · 3,358 parts · 194 categories

3,358 items

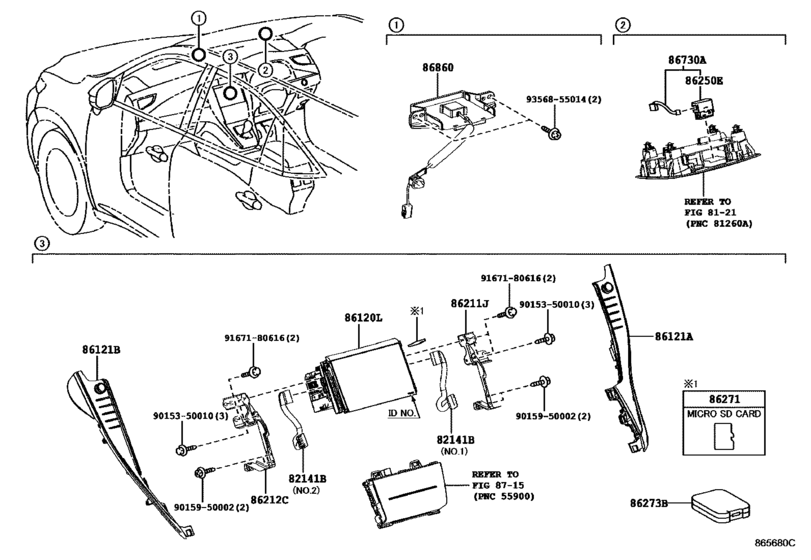

Navigation & Front Monitor Display ([12.2013 - ] (1312- )) 32

#	OEM	Part name
82141	82143-48250	Wire, Instrument Panel
82141	82143-48260	Wire, Instrument Panel
86120	86804-48080	Receiver Assy, Navigation
86120	86804-48A10	Receiver Assy, Navigation
86120	86804-48510	Receiver Assy, Navigation
86120	86804-48A20	Receiver Assy, Navigation
86121	86121-48500	Panel, Radio Receiver, No.1
86121	86121-48C50	Panel, Radio Receiver, No.1
86121	86121-48510	Panel, Radio Receiver, No.2
86121	86121-48550	Panel, Radio Receiver, No.1
86121	86121-48C60	Panel, Radio Receiver, No.1
86121	86121-48560	Panel, Radio Receiver, No.2
86211	86211-48190	Bracket, Radio Receiver, No.1
86212	86212-48190	Bracket, Radio Receiver, No.2
86250	86250-52020	Microphone Assy, Amplifier
86271	86271-33262	Disc, Disc Player
86271	86271-33263	Disc, Disc Player
86271	86271-33264	Disc, Disc Player
86271	86271-33265	Disc, Disc Player
86271	86271-33266	Disc, Disc Player
86271	86271-48230	Disc, Disc Player
86271	86271-48234	Disc, Disc Player
86271	86271-48231	Disc, Disc Player
86271	86271-48232	Disc, Disc Player
86271	86271-48233	Disc, Disc Player
86273	86273-48030	Adapter, Disc Player
86730	86730-42030	Microphone Assy, Telephone
86860	86860-48210	Antenna Assy, Navigation
9015350010	90153-50010	BOLT
9015950002	90159-50002	SCREW
9167180616	91671-80616	BOLT FLANGE
9356855014	93568-55014	Screw

OEM	Part name	Category
82143-48250	Wire, Instrument Panel	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
82143-48260	Wire, Instrument Panel	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86121-48500	Panel, Radio Receiver, No.1	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86121-48510	Panel, Radio Receiver, No.2	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86121-48550	Panel, Radio Receiver, No.1	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86121-48560	Panel, Radio Receiver, No.2	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86121-48C50	Panel, Radio Receiver, No.1	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86121-48C60	Panel, Radio Receiver, No.1	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86211-48190	Bracket, Radio Receiver, No.1	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86212-48190	Bracket, Radio Receiver, No.2	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86250-52020	Microphone Assy, Amplifier	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86271-33262	Disc, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86271-33263	Disc, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86271-33264	Disc, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86271-33265	Disc, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86271-33266	Disc, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86271-48230	Disc, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86271-48231	Disc, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86271-48232	Disc, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86271-48233	Disc, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86271-48234	Disc, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86273-48030	Adapter, Disc Player	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86730-42030	Microphone Assy, Telephone	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86804-48080	Receiver Assy, Navigation	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86804-48510	Receiver Assy, Navigation	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86804-48A10	Receiver Assy, Navigation	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86804-48A20	Receiver Assy, Navigation	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
86860-48210	Antenna Assy, Navigation	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
90153-50010	BOLT	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
90159-50002	SCREW	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
91671-80616	BOLT FLANGE	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
93568-55014	Screw	Navigation & Front Monitor Display ([12.2013 - ] (1312- ))
