ZSU60

Toyota HARRIER · 2013 · 3,358 parts · 194 categories

← Back to categories

3,358 items

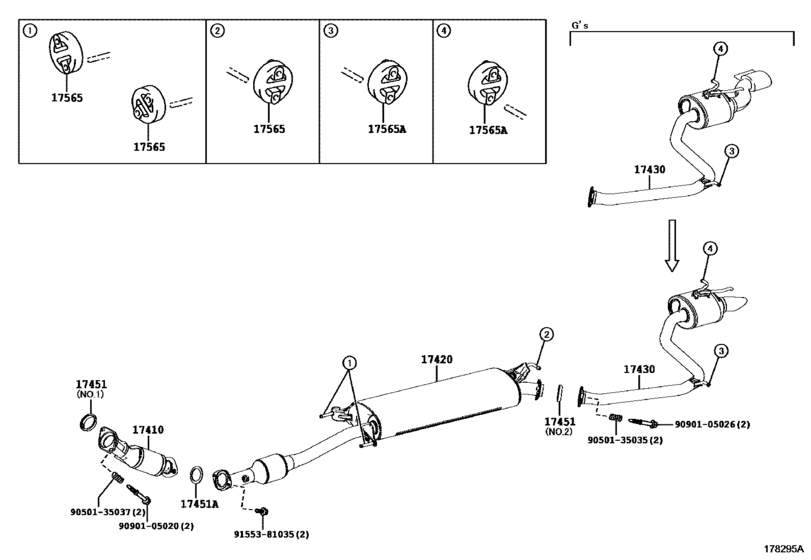

Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE) 17

#	OEM	Part name
17410	17410-37820	Pipe Assy, Exhaust, Front
17420	17420-37200	Pipe Assy, Exhaust, Center
17420	17420-WY010	Pipe Assy, Exhaust, Center
17430	17430-37560	Pipe Assy, Exhaust, Tail
17430	17430-WY100	Pipe Assy, Exhaust, Tail
17451	17451-28022	Gasket, Exhaust Pipe
17451	17451-28040	Gasket, Exhaust Pipe
17451	17451-28041	Gasket, Exhaust Pipe
17451	90917-06078	Gasket, Exhaust Pipe
17451	90917-A6003	Gasket, Exhaust Pipe
17565	17565-22040	Support, Exhaust Pipe, No.1
17565	17565-22030	Support, Exhaust Pipe, No.1
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9155381035	91553-81035	BOLT, FLANGE

OEM	Part name	Category
17410-37820	Pipe Assy, Exhaust, Front	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
17420-37200	Pipe Assy, Exhaust, Center	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
17420-WY010	Pipe Assy, Exhaust, Center	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
17430-37560	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
17430-WY100	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
17451-28022	Gasket, Exhaust Pipe	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
17451-28040	Gasket, Exhaust Pipe	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
17565-22030	Support, Exhaust Pipe, No.1	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
90917-06078	Gasket, Exhaust Pipe	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
90917-A6003	Gasket, Exhaust Pipe	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
91553-81035	BOLT, FLANGE	Exhaust Pipe ([12.2013 - ] (1312- )3ZRFAE)
