Search › Model › ZSU60

ZSU60

Toyota HARRIER · 2013 · 3,358 parts · 194 categories

3,358 items

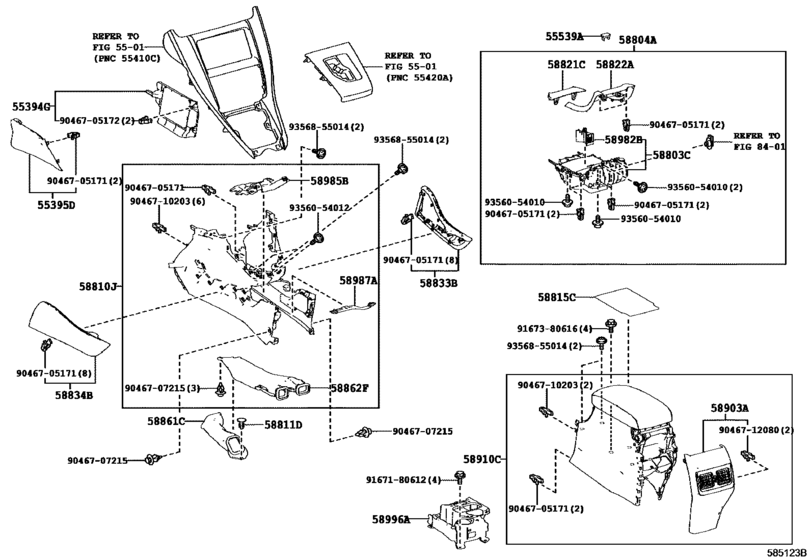

Console Box & Bracket ([12.2013 - ] (1312- )) 41

#	OEM	Part name
55394	55394-48020-C0	Cover, Instrument Panel Brace, Inner No.1 Rh
55395	55395-48010-C0	Cover, Instrument Panel Brace, Inner No.1 Lh
55539	55539-22190	Cover, Spare Switch Hole
58803	58803-48120	Box Sub-Assy, Console Cup Holder
58804	58804-48490-C0	Panel Sub-Assy, Console, Upper
58810	58810-48580-C0	Box Assy, Console
58811	90467-08186-C0	Clip(For Front Bumper), No.1
58811	90467-08186-C3	Clip(For Front Bumper), No.1
58815	58815-48010	Carpet, Console Box
58821	58821-48150	Panel, Console, Upper
58822	58822-48060-C0	Panel, Console, Upper Rear
58833	58833-48240-C2	Garnish, Console Upper Panel, No.1
58833	58833-48240-E1	Garnish, Console Upper Panel, No.1
58833	58833-48290-E0	Garnish, Console Upper Panel, No.1
58833	58833-48240-A2	Garnish, Console Upper Panel, No.1
58833	58833-48240-C3	Garnish, Console Upper Panel, No.1
58834	58834-48130-C2	Garnish, Console Upper Panel, No.2
58834	58834-48130-E1	Garnish, Console Upper Panel, No.2
58834	58834-48130-A2	Garnish, Console Upper Panel, No.2
58834	58834-48130-C3	Garnish, Console Upper Panel, No.2
58861	58861-48100	Duct, Console Box, No.1
58862	58862-48080	Duct, Console Box, No.2
58903	58903-48130-C2	Panel Sub-Assy, Console Rear End
58903	58903-48170-C0	Panel Sub-Assy, Console Rear End
58910	58910-48380-C5	Box Assy, Console, Rear
58910	58910-48380-C4	Box Assy, Console, Rear
58910	58910-48420-C0	Box Assy, Console, Rear
58982	58984-48020	Retainer, Console Box, No.3
58985	58985-48020	Retainer, Console Box, No.1
58987	58987-48020	Retainer, Console Box, No.2
58996	58996-42050	Bracket, Console Box Mounting, No.2
9046705171	90467-05171	Clip, Instrument Panel
9046705172	90467-05172	Clip, Instrument Panel, No.1
9046707215	90467-07215	Clip
9046710203	90467-10203	Direct
9046712080	90467-12080	Clip(For Panel, Instrument Cluster Finish)
9167180612	91671-80612	Bolt
9167380616	91673-80616	Bolt, W/washer
9356054010	93560-54010	SCREW
9356054012	93560-54012	Screw
9356855014	93568-55014	Screw

OEM	Part name	Category
55394-48020-C0	Cover, Instrument Panel Brace, Inner No.1 Rh	Console Box & Bracket ([12.2013 - ] (1312- ))
55395-48010-C0	Cover, Instrument Panel Brace, Inner No.1 Lh	Console Box & Bracket ([12.2013 - ] (1312- ))
55539-22190	Cover, Spare Switch Hole	Console Box & Bracket ([12.2013 - ] (1312- ))
58803-48120	Box Sub-Assy, Console Cup Holder	Console Box & Bracket ([12.2013 - ] (1312- ))
58804-48490-C0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([12.2013 - ] (1312- ))
58810-48580-C0	Box Assy, Console	Console Box & Bracket ([12.2013 - ] (1312- ))
58815-48010	Carpet, Console Box	Console Box & Bracket ([12.2013 - ] (1312- ))
58821-48150	Panel, Console, Upper	Console Box & Bracket ([12.2013 - ] (1312- ))
58822-48060-C0	Panel, Console, Upper Rear	Console Box & Bracket ([12.2013 - ] (1312- ))
58833-48240-A2	Garnish, Console Upper Panel, No.1	Console Box & Bracket ([12.2013 - ] (1312- ))
58833-48240-C2	Garnish, Console Upper Panel, No.1	Console Box & Bracket ([12.2013 - ] (1312- ))
58833-48240-C3	Garnish, Console Upper Panel, No.1	Console Box & Bracket ([12.2013 - ] (1312- ))
58833-48240-E1	Garnish, Console Upper Panel, No.1	Console Box & Bracket ([12.2013 - ] (1312- ))
58833-48290-E0	Garnish, Console Upper Panel, No.1	Console Box & Bracket ([12.2013 - ] (1312- ))
58834-48130-A2	Garnish, Console Upper Panel, No.2	Console Box & Bracket ([12.2013 - ] (1312- ))
58834-48130-C2	Garnish, Console Upper Panel, No.2	Console Box & Bracket ([12.2013 - ] (1312- ))
58834-48130-C3	Garnish, Console Upper Panel, No.2	Console Box & Bracket ([12.2013 - ] (1312- ))
58834-48130-E1	Garnish, Console Upper Panel, No.2	Console Box & Bracket ([12.2013 - ] (1312- ))
58861-48100	Duct, Console Box, No.1	Console Box & Bracket ([12.2013 - ] (1312- ))
58862-48080	Duct, Console Box, No.2	Console Box & Bracket ([12.2013 - ] (1312- ))
58903-48130-C2	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([12.2013 - ] (1312- ))
58903-48170-C0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([12.2013 - ] (1312- ))
58910-48380-C4	Box Assy, Console, Rear	Console Box & Bracket ([12.2013 - ] (1312- ))
58910-48380-C5	Box Assy, Console, Rear	Console Box & Bracket ([12.2013 - ] (1312- ))
58910-48420-C0	Box Assy, Console, Rear	Console Box & Bracket ([12.2013 - ] (1312- ))
58984-48020	Retainer, Console Box, No.3	Console Box & Bracket ([12.2013 - ] (1312- ))
58985-48020	Retainer, Console Box, No.1	Console Box & Bracket ([12.2013 - ] (1312- ))
58987-48020	Retainer, Console Box, No.2	Console Box & Bracket ([12.2013 - ] (1312- ))
58996-42050	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([12.2013 - ] (1312- ))
90467-05171	Clip, Instrument Panel	Console Box & Bracket ([12.2013 - ] (1312- ))
90467-05172	Clip, Instrument Panel, No.1	Console Box & Bracket ([12.2013 - ] (1312- ))
90467-07215	Clip	Console Box & Bracket ([12.2013 - ] (1312- ))
90467-08186-C0	Clip(For Front Bumper), No.1	Console Box & Bracket ([12.2013 - ] (1312- ))
90467-08186-C3	Clip(For Front Bumper), No.1	Console Box & Bracket ([12.2013 - ] (1312- ))
90467-10203	Direct	Console Box & Bracket ([12.2013 - ] (1312- ))
90467-12080	Clip(For Panel, Instrument Cluster Finish)	Console Box & Bracket ([12.2013 - ] (1312- ))
91671-80612	Bolt	Console Box & Bracket ([12.2013 - ] (1312- ))
91673-80616	Bolt, W/washer	Console Box & Bracket ([12.2013 - ] (1312- ))
93560-54010	SCREW	Console Box & Bracket ([12.2013 - ] (1312- ))
93560-54012	Screw	Console Box & Bracket ([12.2013 - ] (1312- ))
93568-55014	Screw	Console Box & Bracket ([12.2013 - ] (1312- ))
