Search › Model › ZSU60
ZSU60

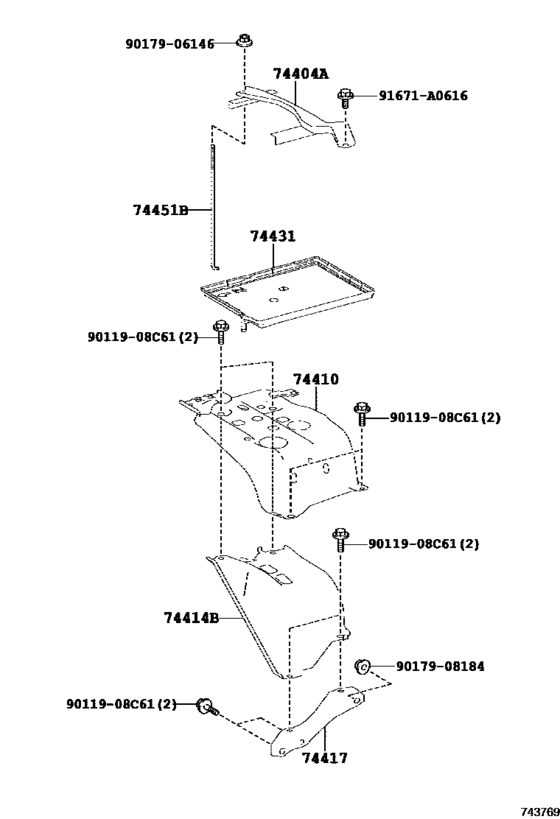

Battery Carrier ([12.2013 - ] (1312- )ZSU6#) 11
| # | OEM | Part name |
|---|---|---|
| 74404 | 74404-48130 | Clamp Sub-Assy, Battery |
| 74410 | 74410-42011 | Carrier Assy, Battery |
| 74414 | 74414-42011 | Reinforcement, Battery Bracket |
| 74417 | 74417-42030 | Bracket, Battery Carrier |
| 74431 | 74431-42110 | Tray, Battery |
| 74451 | 74451-10060 | Bolt, Battery Clamp |
| 74451 | 74451-10061 | Bolt, Battery Clamp |
| 91671 | 91671-A0616 | BOLT FLANGE |
| 9011908 | 90119-08C61 | BOLT WWASHER |
| 9017906146 | 90179-06146 | Nut |
| 9017908184 | 90179-08184 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 74404-48130 | Clamp Sub-Assy, Battery | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
| 74410-42011 | Carrier Assy, Battery | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
| 74414-42011 | Reinforcement, Battery Bracket | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
| 74417-42030 | Bracket, Battery Carrier | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
| 74431-42110 | Tray, Battery | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
| 74451-10060 | Bolt, Battery Clamp | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
| 74451-10061 | Bolt, Battery Clamp | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
| 90119-08C61 | BOLT WWASHER | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
| 90179-06146 | Nut | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
| 90179-08184 | NUT | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
| 91671-A0616 | BOLT FLANGE | Battery Carrier ([12.2013 - ] (1312- )ZSU6#) |
