Search › Model › ZSP92

ZSP92

Toyota VIOS · 2008 · 3,032 parts · 170 categories

3,032 items

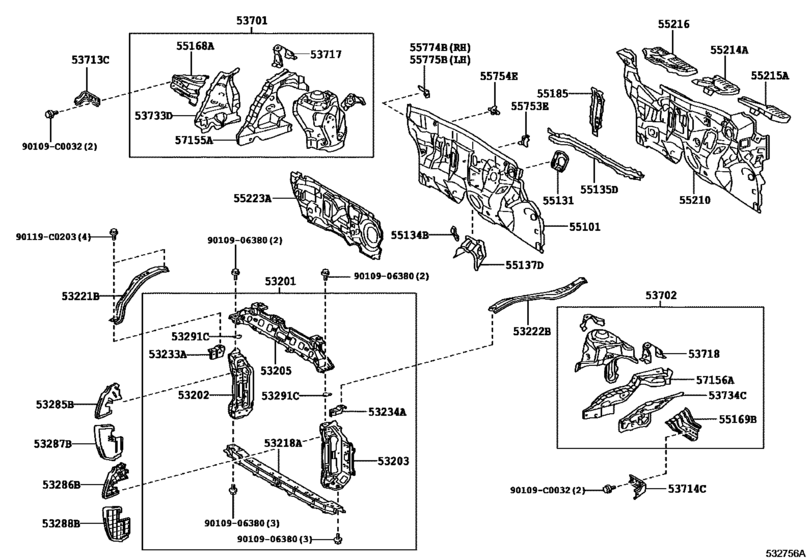

Front Fender Apron & Dash Panel ([02.2008 - ] (0802- )) 47

#	OEM	Part name
53201	53201-0D130	Support Sub-Assy, Radiator
53202	53202-0D070	Support Sub-Assy, Radiator, Rh
53203	53203-0D070	Support Sub-Assy, Radiator, Lh
53205	53205-0D050	Support Sub-Assy, Radiator, Upper
53218	53028-0D040	Support, Radiator, Lower
53221	53221-0D010	Brace, Radiator Support Apron, Rh
53222	53222-0D010	Brace, Radiator Support Apron, Lh
53233	53233-0D030	Bracket, Headlamp, No.1 Rh
53234	53234-0D030	Bracket, Headlamp, No.1 Lh
53285	53285-0D080	Seal, Radiator Side Air, No.1
53286	53286-0D080	Seal, Radiator Side Air, No.2
53287	53287-0D050	Extension, Radiator Support, Rh
53288	53288-0D050	Extension, Radiator Support, Lh
53291	53291-0D020	Seal, Radiator Support To Frame
53701	53701-0D170	Apron Sub-Assy, Front Fender, Rh
53702	53702-0D160	Apron Sub-Assy, Front Fender, Lh
53713	53713-0D030	Extension, Front Fender Apron, Front Rh
53714	53714-0D030	Extension, Front Fender Apron, Front Lh
53717	53717-0D030	Plate, Fender Apron, Rh
53718	53718-0D030	Plate, Fender Apron, Lh
53733	53733-0D020	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-0D020	Member, Front Apron To Cowl Side, Lower Front Lh
55101	55111-52350	Panel Sub-Assy, Dash
55131	55131-0D080	Reinforcement, Dash Panel
55134	55134-0D050	Support, Accel Control Rod
55135	55135-0D100	Member, Front Panel
55135	55135-0D101	Member, Front Panel
55137	55137-0D090	Reinforcement, Front Panel Member
55168	55168-0D050	Bracket, Front Fender Mounting, Rh
55169	55169-0D050	Bracket, Front Fender Mounting, Lh
55185	55185-0D070	Brace, Dash Panel To Cowl
55210	55210-0D200	Insulator Assy, Dash Panel
55210	55210-0D201	Insulator Assy, Dash Panel
55214	55214-0D100	Pad, Dash Panel Insulator, No.2
55215	55215-0D100	Pad, Dash Panel Insulator, No.3
55216	55216-0D090	Pad, Dash Panel Insulator, No.4
55223	55223-0D140	Insulator, Dash Panel, Outer
55223	55223-0D141	Insulator, Dash Panel, Outer
55753	55753-0D100	Bracket, Instrument Panel To Cowl, No.1
55754	55754-0D060	Bracket, Instrument Panel To Cowl, No.2
55774	55774-0D010	Bracket, Cowl Top Inner To Pillar Brace, Rh
55775	55775-0D010	Bracket, Cowl Top Inner To Pillar Brace, Lh
57155	57155-0D060	Reinforcement, Front Side Member, No.3 Rh
57156	57156-0D020	Reinforcement, Front Side Member, No.3, Lh
90109	90109-C0032	New Genuine Part
90119	90119-C0203	New Genuine Part
9010906380	90109-06380	BOLT

OEM	Part name	Category
53028-0D040	Support, Radiator, Lower	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53201-0D130	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53202-0D070	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53203-0D070	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53205-0D050	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53221-0D010	Brace, Radiator Support Apron, Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53222-0D010	Brace, Radiator Support Apron, Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53233-0D030	Bracket, Headlamp, No.1 Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53234-0D030	Bracket, Headlamp, No.1 Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53285-0D080	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53286-0D080	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53287-0D050	Extension, Radiator Support, Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53288-0D050	Extension, Radiator Support, Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53291-0D020	Seal, Radiator Support To Frame	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53701-0D170	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53702-0D160	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53713-0D030	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53714-0D030	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53717-0D030	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53718-0D030	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53733-0D020	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
53734-0D020	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55111-52350	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55131-0D080	Reinforcement, Dash Panel	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55134-0D050	Support, Accel Control Rod	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55135-0D100	Member, Front Panel	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55135-0D101	Member, Front Panel	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55137-0D090	Reinforcement, Front Panel Member	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55168-0D050	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55169-0D050	Bracket, Front Fender Mounting, Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55185-0D070	Brace, Dash Panel To Cowl	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55210-0D200	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55210-0D201	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55214-0D100	Pad, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55215-0D100	Pad, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55216-0D090	Pad, Dash Panel Insulator, No.4	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55223-0D140	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55223-0D141	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55753-0D100	Bracket, Instrument Panel To Cowl, No.1	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55754-0D060	Bracket, Instrument Panel To Cowl, No.2	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55774-0D010	Bracket, Cowl Top Inner To Pillar Brace, Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
55775-0D010	Bracket, Cowl Top Inner To Pillar Brace, Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
57155-0D060	Reinforcement, Front Side Member, No.3 Rh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
57156-0D020	Reinforcement, Front Side Member, No.3, Lh	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
90109-06380	BOLT	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
90109-C0032	New Genuine Part	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))
90119-C0203	New Genuine Part	Front Fender Apron & Dash Panel ([02.2008 - ] (0802- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 170
Collected: 2026-08-04
