ZSP91

Toyota YARIS-ECHO-VIOS-LIMO · 2008 · 3,336 parts · 188 categories
ZSP91 ×

← Back to categories

3,336 items

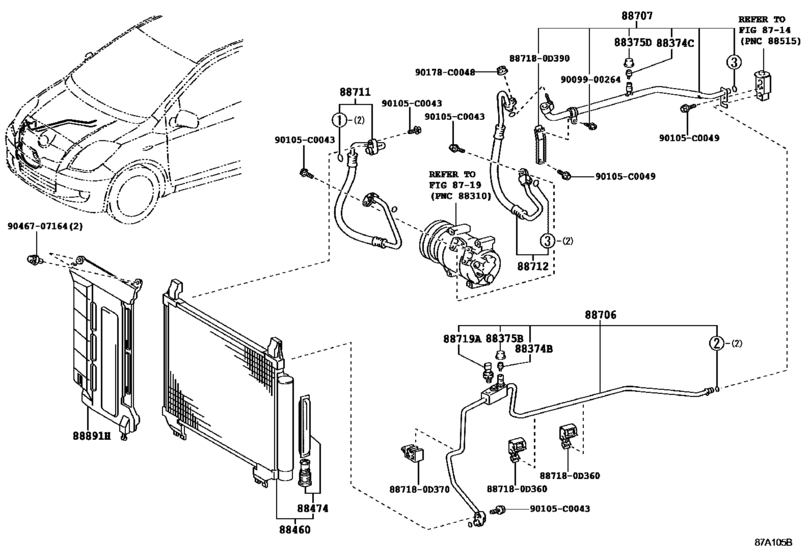

Heating & Air Conditioning - Cooler Piping ([05.2008 - 08.2010] (0805-1008)ZSP91) 24
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88460 88460-0D140 Condenser Assy, Cooler
88460 88460-0D150 Condenser Assy, Cooler
88474 88474-17010 Dryer, Cooler
88706 88706-0D330 Pipe Sub-Assy, Liquid
88706 88706-0D430 Pipe Sub-Assy, Liquid
88707 88707-0D170 Pipe Sub-Assy, Suction
88711 88711-0D240 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-0D360 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-0D300 Hose, Cooler Refrigerant Suction, No.1
88712 88712-0D460 Hose, Cooler Refrigerant Suction, No.1
88719 88719-33020 Sensor, Airconditioner Pressure
88891 88891-0D140 Cover, Cooler, No.1
88891 88891-0D150 Cover, Cooler, No.1
90105 90105-C0043 New Genuine Part
90105 90105-C0049 New Genuine Part
90178 90178-C0048 New Genuine Part
887180 88718-0D360 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0D370 Clamp(For Cooler Refrigerant Pipe), No.1
887180 88718-0D390 Pipe, Cooler Refrigerant Suction, No.2
9009900264 90099-00264 SCREW
9046707164 90467-07164 Clip(For Front Fender Apron Seal)
