ZSP91

Toyota YARIS-ECHO-VIOS-LIMO · 2008 · 3,336 parts · 188 categories

← Back to categories

3,336 items

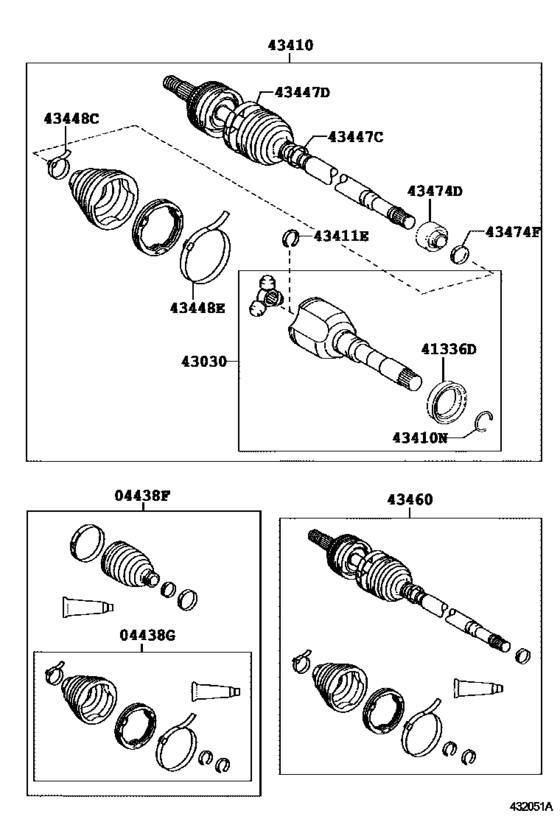

Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91) 15

#	OEM	Part name
4438	04427-0D191	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04437-02310	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04437-02311	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-12010	Cover, Dust(For Differential Side Gear Shaft)
43030	43040-02110	Joint Assy, Front Drive Inboard, Rh
43410	43410-0D310	Shaft Assy, Front Drive, Rh
43410	90521-26004	Ring, Hole Snap (For Front Differential Side Gear Shaft)
43411	43425-12070	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43447	42345-12230	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-12240	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448	42345-12180	Clamp (For Front Axle Outboard Joint Boot Lh)
43460	43460-09S71	Shaft Assy, Front Drive Outboard Joint, Rh
43474	43474-0D100	Damper, Front Drive Shaft, Rh
43474	43474-0W090	Damper, Front Drive Shaft, Rh
43474	42345-06420	Clamp (For Drive Shaft Damper Setting)

OEM	Part name	Category
04427-0D191	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
04437-02310	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
04437-02311	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
41336-12010	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
42345-06420	Clamp (For Drive Shaft Damper Setting)	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
42345-12180	Clamp (For Front Axle Outboard Joint Boot Lh)	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
42345-12230	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
42345-12240	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
43040-02110	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
43410-0D310	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
43425-12070	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
43460-09S71	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
43474-0D100	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
43474-0W090	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
90521-26004	Ring, Hole Snap (For Front Differential Side Gear Shaft)	Front Drive Shaft ([05.2008 - ] RH (0805- )ZSP91)
