Search › Model › ZSP170

ZSP170

Toyota SIENTA · 2016 · 2,302 parts · 160 categories

2,302 items

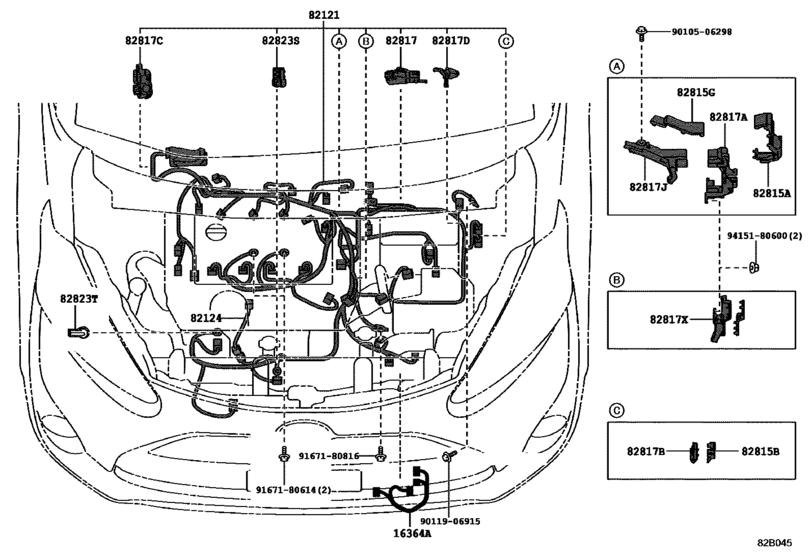

Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170) 20

#	OEM	Part name
16364	16364-37020	Wire, Cooling Fan
82121	82121-0DY00	Wire, Engine
82124	82124-12160	Wire, Engine, No.4
82815	82815-12560	Cover, Wiring Harness Protector
82815	82815-52120	Cover, Wiring Harness Protector
82815	82815-02260	Cover, Wiring Harness Protector No.5 - WIRING HARNESS PROTECTOR, NO.8
82817	82817-52620	Protector, Wiring Harness, No.9
82817	82817-12L40	Protector, Wiring Harness, No.2
82817	82817-52850	Protector, Wiring Harness, No.3
82817	82817-52740	Protector, Wiring Harness, No.9
82817	82817-52860	Protector, Wiring Harness, No.5
82817	82817-02770	Protector, Wiring Harness, No.4 - WIRING HARNESS, NO.7
82817	82817-12L50	Protector, Wiring Harness, No.10
82823	82823-20080	Cap, Terminal, No.1
82823	82823-22050	Cap, Terminal, No.1
9010506298	90105-06298	BOLT FLANGE
9011906915	90119-06915	BOLT W-WASHER
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
16364-37020	Wire, Cooling Fan	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82121-0DY00	Wire, Engine	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82124-12160	Wire, Engine, No.4	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82815-02260	Cover, Wiring Harness Protector No.5 - WIRING HARNESS PROTECTOR, NO.8	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82815-12560	Cover, Wiring Harness Protector	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82815-52120	Cover, Wiring Harness Protector	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82817-02770	Protector, Wiring Harness, No.4 - WIRING HARNESS, NO.7	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82817-12L40	Protector, Wiring Harness, No.2	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82817-12L50	Protector, Wiring Harness, No.10	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82817-52620	Protector, Wiring Harness, No.9	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82817-52740	Protector, Wiring Harness, No.9	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82817-52850	Protector, Wiring Harness, No.3	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82817-52860	Protector, Wiring Harness, No.5	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82823-20080	Cap, Terminal, No.1	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
82823-22050	Cap, Terminal, No.1	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
90105-06298	BOLT FLANGE	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([11.2016 - ] ENGINE (1611- )ZSP170)
